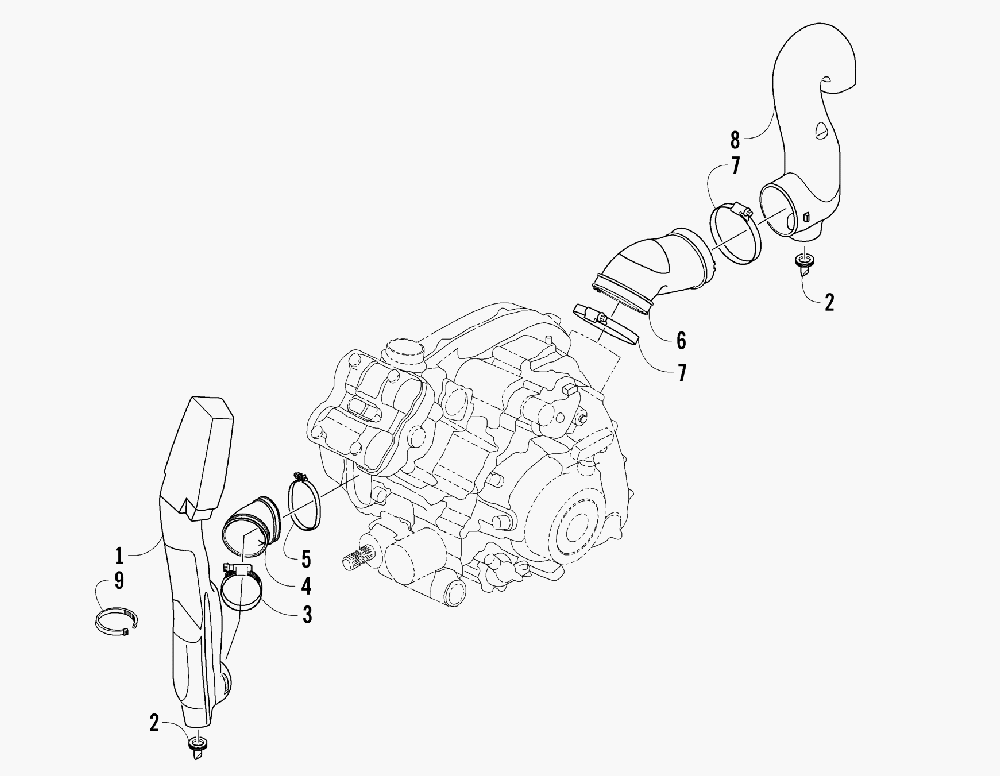

CASE/BELT COOLING ASSEMBLY для Arctic Cat 700 EFI FIS (RED) [A2007IBT4CUSR] - 2007 года выпуска
-
№АртикулНазвание
-
10413-126 DUCT, BELT COOLING - FRONTDUCT, BELT COOLING - FRONT
-
20470-442 VALVE, DRAINVALVE, DRAIN
-
30423-578 CLAMP, BOOTCLAMP, BOOT
-
40413-114 BOOT, DUCT - FRONTBOOT, DUCT - FRONT
-
50413-550 CLAMP, BOOTCLAMP, BOOT
-
60413-128 BOOT, DUCT - REARBOOT, DUCT - REAR
-
70423-018 CLAMP, BOOTCLAMP, BOOT
-
80413-129 DUCT, BELT COOLING - REARDUCT, BELT COOLING - REAR
-
90123-903 CABLE TIE - 11.5 IN.CABLE TIE - 11.5 IN.
-
100423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
