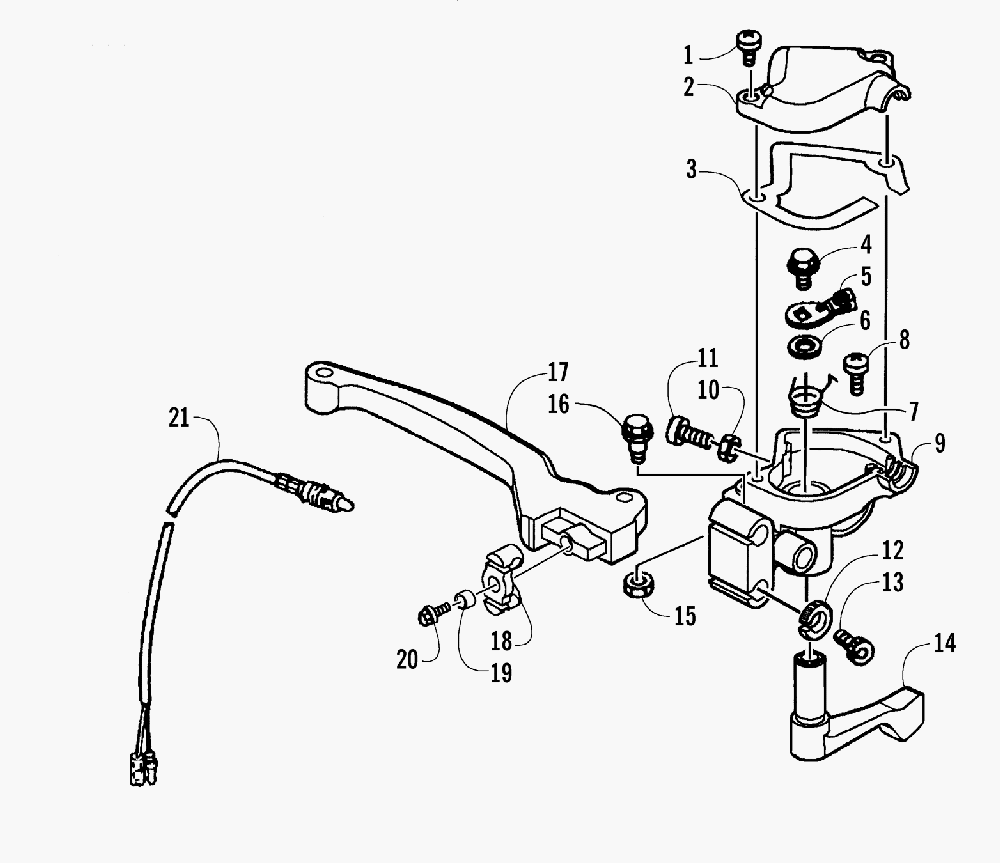

THROTTLE CONTROL ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (GREEN ) [A2007KUB2BUSG] - 2007 года выпуска
-
№АртикулНазвание
-
-3303-447 COMPLETE THROTTLE CONTROL ASSEMBLYCOMPLETE THROTTLE CONTROL ASSEMBLY
-
13303-315 BOLT, FLANGE (4*16)BOLT, FLANGE (4*16)
-
23303-207 COVER, THROTTLE CONTROLCOVER, THROTTLE CONTROL
-
33303-209 GASKET, THROTTLE CONTROL COVERGASKET, THROTTLE CONTROL COVER
-
43304-554 SCREW PAN (3*8)SCREW PAN (3*8)
-
53304-555 COVER, PARKING BRAKECOVER, PARKING BRAKE
-
63304-556 BUTTON, PARKING BRAKEBUTTON, PARKING BRAKE
-
73304-557 STOPPER, PARKING BRAKESTOPPER, PARKING BRAKE
-
83303-397 BOLT, SOCKET (6*20)BOLT, SOCKET (6*20)
-
93303-204 CASE, THROTTLE CONTROLCASE, THROTTLE CONTROL
-
103303-324 NUT, HEX (5MM)NUT, HEX (5MM)
-
113304-558 SCREW, PAN (5*14)SCREW, PAN (5*14)
-
123303-271 NUT, LOCKNUT, LOCK
-
133303-208 BOLT, WIRE ADJUSTMENTBOLT, WIRE ADJUSTMENT
-
143303-200 LEVER, THROTTLELEVER, THROTTLE
-
153303-262 NUT (6MM)NUT (6MM)
-
163303-255 BOLT, HANDLE COVER PIVOT (M6*22)BOLT, HANDLE COVER PIVOT (M6*22)
-
173303-205 LEVER, BRAKELEVER, BRAKE
-
183303-201 EQUALIZER, BRAKE CABLEEQUALIZER, BRAKE CABLE
-
193303-202 SPACERSPACER
-
203303-358 BOLT, FLANGEBOLT, FLANGE
-
213303-140 SWITCH, BRAKESWITCH, BRAKE
