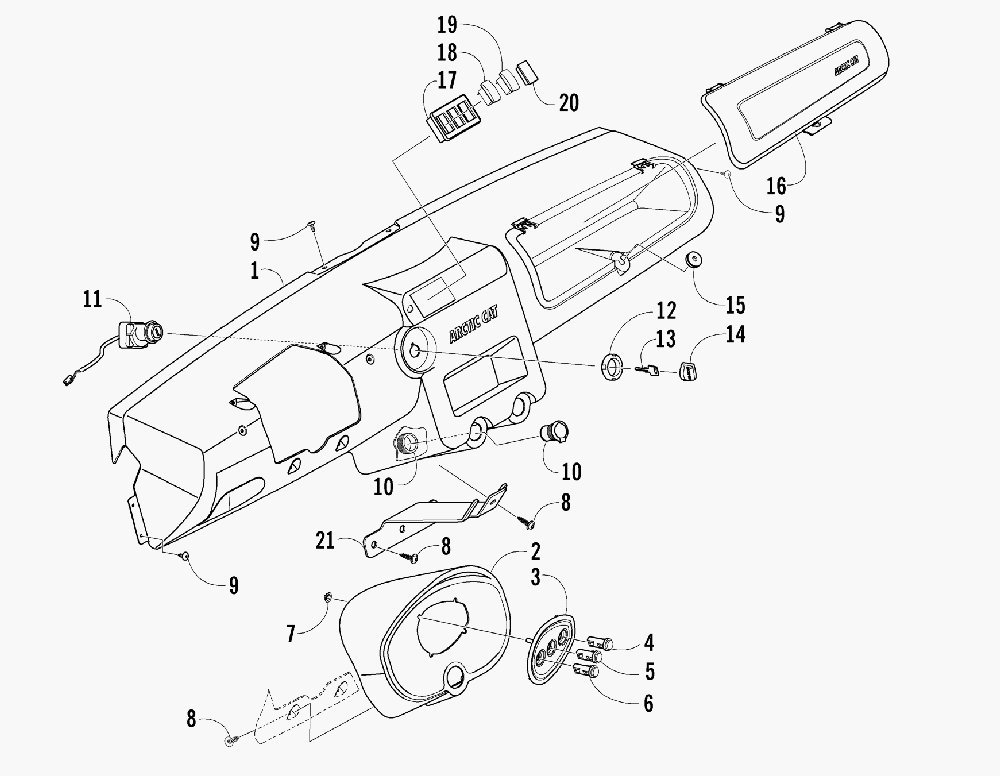

DASH ASSEMBLY для Arctic Cat PROWLER (RED) [U2007P1S4BUSR] - 2007 года выпуска
-
№АртикулНазвание
-
12406-505 PANEL, DASHPANEL, DASH
-
21406-727 POD, INSTRUMENTPOD, INSTRUMENT
-
30405-214 BEZEL, LIGHTS - INSTRUMENT PODBEZEL, LIGHTS - INSTRUMENT POD
-
40420-068 LIGHT, INDICATOR - TEMPERATURELIGHT, INDICATOR - TEMPERATURE
-
50420-066 LIGHT, INDICATOR - "N"LIGHT, INDICATOR - "N"
-
60420-067 LIGHT, INDICATOR - "R"LIGHT, INDICATOR - "R"
-
70423-357 NUT, STAMPEDNUT, STAMPED
-
80423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
90623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
100641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
110430-040 SWITCH, IGNITION (INC. 12-14)SWITCH, IGNITION (INC. 12-14)
-
120430-050 ...NUT, FLANGE - KEY SWITCH...NUT, FLANGE - KEY SWITCH
-
130430-042 ...KEY, IGNITION SERIES (Y)...KEY, IGNITION SERIES (Y)
-
130430-043 ...KEY, IGNITION SERIES (Z)...KEY, IGNITION SERIES (Z)
-
140430-054 ...COVER, KEY...COVER, KEY
-
150423-541 GROMMET, LATCH - GLOVE BOXGROMMET, LATCH - GLOVE BOX
-
161406-789 COVER, GLOVE BOXCOVER, GLOVE BOX
-
170409-069 PANEL, SWITCH-MOUNTPANEL, SWITCH-MOUNT
-
180409-067 SWITCH - LIGHTSSWITCH - LIGHTS
-
190409-074 SWITCH, 2WD/4WDSWITCH, 2WD/4WD
-
200409-070 PLUG, SWITCH-HOLEPLUG, SWITCH-HOLE
-
212506-192 BRACKET, SUPPORT - LOWER DASHBRACKET, SUPPORT - LOWER DASH
-
220420-076 LIGHT, INDICATOR - PARKING BRAKELIGHT, INDICATOR - PARKING BRAKE
