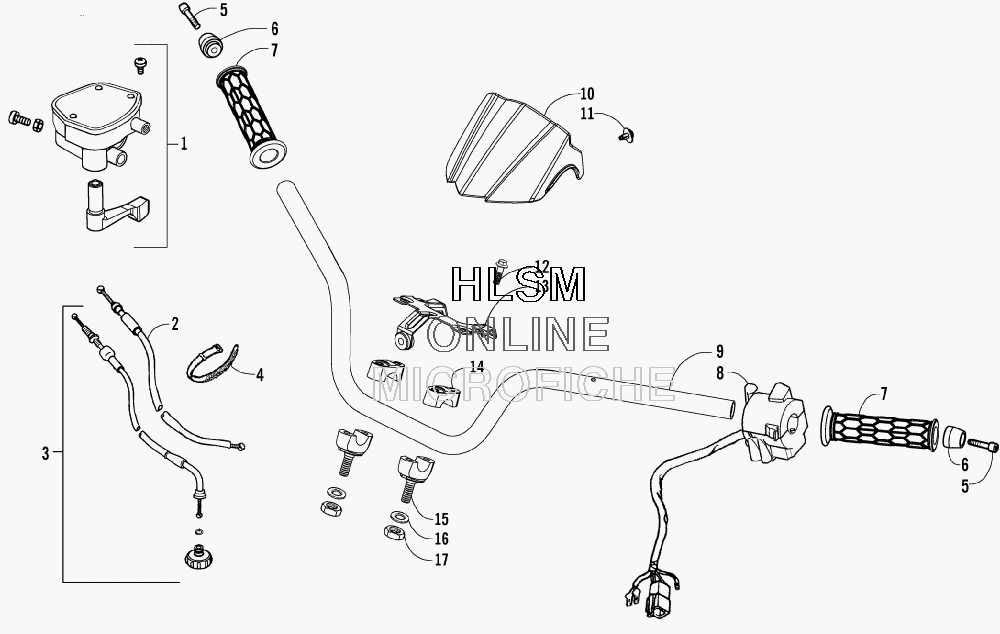

HANDLEBAR AND CONTROLS ASSEMBLY для Arctic Cat 250 DVX (BLACK - CAT GREEN) [A2008KSE2BUSE] - 2008 года выпуска
-
№АртикулНазвание
-
13303-953 LEVER, THROTTLE - ASSEMBLYLEVER, THROTTLE - ASSEMBLY
-
23305-462 CABLE, CHOKECABLE, CHOKE
-
31502-297 CABLE, THROTTLE - KITCABLE, THROTTLE - KIT
-
43303-839 CABLE TIECABLE TIE
-
53304-016 BOLT W/WASHERBOLT W/WASHER
-
63305-541 CAP, END - HANDLEBARCAP, END - HANDLEBAR
-
73303-203 GRIP, HANDLEBARGRIP, HANDLEBAR
-
83304-684 SWITCH ASSEMBLY - LEFTSWITCH ASSEMBLY - LEFT
-
93304-367 HANDLEBARHANDLEBAR
-
103303-436 INSTRUMENT POD - BLACKINSTRUMENT POD - BLACK
-
113303-592 CLIPCLIP
-
123305-400 BOLT W/WASHERBOLT W/WASHER
-
133304-368 BRACKET, INSTRUMENT PODBRACKET, INSTRUMENT POD
-
143303-954 HOLDER, HANDLEBAR - UPPERHOLDER, HANDLEBAR - UPPER
-
153303-955 HOLDER, HANDLEBAR - LOWERHOLDER, HANDLEBAR - LOWER
-
163305-088 WASHERWASHER
-
173303-325 NUTNUT
