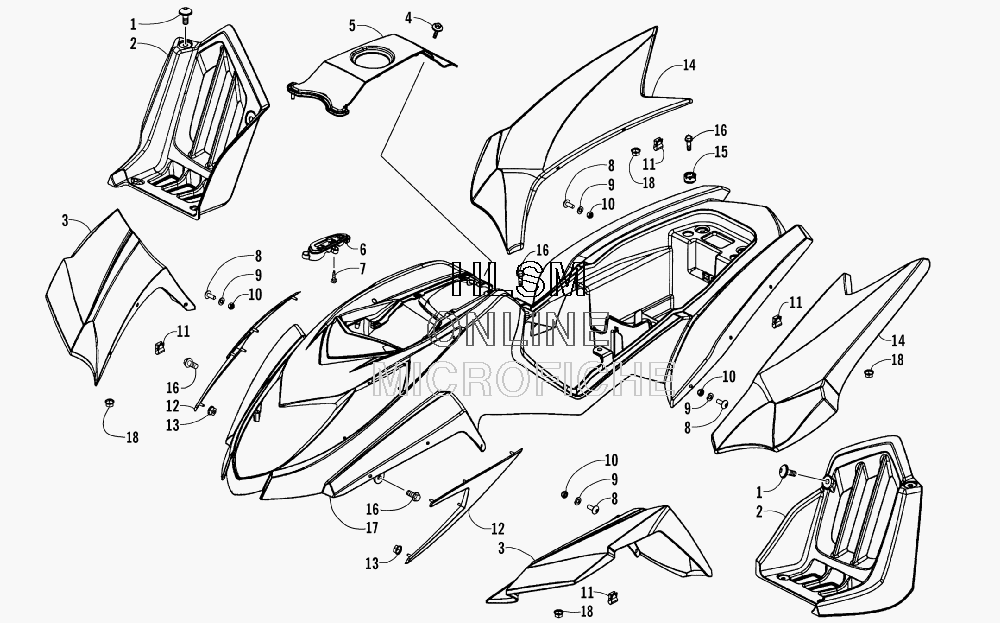

BODY PANEL ASSEMBLY для Arctic Cat 250 DVX (BLACK - RED) [A2008KSE2BUSD] - 2008 года выпуска
-
№АртикулНазвание
-
13304-404 BOLTBOLT
-
23304-395 MUDGUARD, FLOOR - RIGHTMUDGUARD, FLOOR - RIGHT
-
23304-396 MUDGUARD, FLOOR - LEFTMUDGUARD, FLOOR - LEFT
-
33304-387 FENDER, FRONT - RIGHT - RED (BLACK-RED )FENDER, FRONT - RIGHT - RED (BLACK-RED )
-
33304-389 FENDER, FRONT - LEFT - RED (BLACK-RED )FENDER, FRONT - LEFT - RED (BLACK-RED )
-
33304-388 FENDER, FRONT - RIGHT - CAT GREEN (BLACK-CAT GREEN)FENDER, FRONT - RIGHT - CAT GREEN (BLACK-CAT GREEN)
-
33304-390 FENDER, FRONT - LEFT - CAT GREEN (BLACK-CAT GREEN)FENDER, FRONT - LEFT - CAT GREEN (BLACK-CAT GREEN)
-
43304-029 BOLT W/WASHERBOLT W/WASHER
-
53304-248 COVER, GAS TANK - BLACKCOVER, GAS TANK - BLACK
-
63304-381 GUIDE, SHIFT HANDLEGUIDE, SHIFT HANDLE
-
73304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
83304-406 BOLTBOLT
-
93304-432 WASHERWASHER
-
103304-431 NUT, LOCKNUT, LOCK
-
113304-683 CLIP, FENDERCLIP, FENDER
-
123304-382 PANEL, TRIM - RIGHT - RED (BLACK-RED )PANEL, TRIM - RIGHT - RED (BLACK-RED )
-
123304-385 PANEL, TRIM - LEFT - RED (BLACK-RED )PANEL, TRIM - LEFT - RED (BLACK-RED )
-
123304-384 PANEL, TRIM - RIGHT - CAT GREEN (BLACK-CAT GREEN)PANEL, TRIM - RIGHT - CAT GREEN (BLACK-CAT GREEN)
-
123304-386 PANEL, TRIM - LEFT - CAT GREEN (BLACK-CAT GREEN)PANEL, TRIM - LEFT - CAT GREEN (BLACK-CAT GREEN)
-
133304-418 NUTNUT
-
143304-393 FENDER, REAR - RIGHT - RED (BLACK-RED )FENDER, REAR - RIGHT - RED (BLACK-RED )
-
143304-397 FENDER, REAR - LEFT - RED (BLACK-RED )FENDER, REAR - LEFT - RED (BLACK-RED )
-
143304-394 FENDER, REAR - RIGHT - CAT GREEN (BLACK-CAT GREEN)FENDER, REAR - RIGHT - CAT GREEN (BLACK-CAT GREEN)
-
143304-398 FENDER, REAR - LEFT - CAT GREEN (BLACK-CAT GREEN)FENDER, REAR - LEFT - CAT GREEN (BLACK-CAT GREEN)
-
153303-232 RUBBER, REAR FENDERRUBBER, REAR FENDER
-
163304-587 BOLT W/WASHERBOLT W/WASHER
-
173304-380 BODY, MAIN - BLACKBODY, MAIN - BLACK
-
183304-417 NUTNUT
