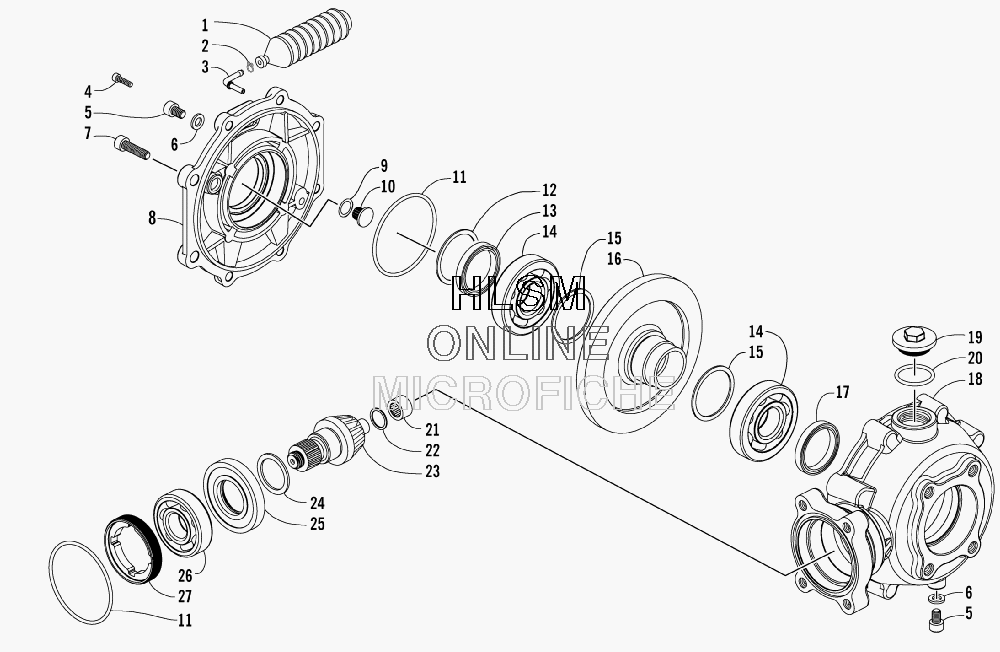

FINAL DRIVE ASSEMBLY для Arctic Cat 250 UTILITY (RED) [A2008KUE2BUSR] - 2008 года выпуска
-
№АртикулНазвание
-
13304-170 BLADDER, REAR GEARCASEBLADDER, REAR GEARCASE
-
23304-669 CLIPCLIP
-
33303-877 FITTING, BLADDERFITTING, BLADDER
-
43304-177 SCREW, CAPSCREW, CAP
-
53303-365 SCREW, CAPSCREW, CAP
-
63303-591 WASHERWASHER
-
73304-178 SCREW, CAPSCREW, CAP
-
83303-873 COVER, REAR GEARCASECOVER, REAR GEARCASE
-
93303-879 SHIMSHIM
-
103303-878 PIN, RING GEARPIN, RING GEAR
-
113304-095 O-RINGO-RING
-
123304-670 O-RINGO-RING
-
133304-092 SEAL, OILSEAL, OIL
-
143304-194 BEARINGBEARING
-
153303-881 SHIM RING GEAR, 1.485MM-1.515MSHIM RING GEAR, 1.485MM-1.515M
-
153305-310 SHIM RING GEAR, 1.515MM-1.545MSHIM RING GEAR, 1.515MM-1.545M
-
153305-311 SHIM RING GEAR, 1.455MM-1.485MSHIM RING GEAR, 1.455MM-1.485M
-
163305-549 GEAR, RINGGEAR, RING
-
173304-093 SEAL, OILSEAL, OIL
-
183303-872 GEARCASE - REARGEARCASE - REAR
-
193303-021 PLUG, FILLPLUG, FILL
-
203304-096 O-RINGO-RING
-
213304-076 BEARING, NEEDLEBEARING, NEEDLE
-
223303-874 O-RINGO-RING
-
233303-875 GEAR, PINIONGEAR, PINION
-
243303-880 SHIM PINION GEAR, 2.015MM - 2.SHIM PINION GEAR, 2.015MM - 2.
-
243305-312 SHIM PINION GEAR, 1.985MM - 2.SHIM PINION GEAR, 1.985MM - 2.
-
243305-313 SHIM PINION GEAR, 1.955MM - 1SHIM PINION GEAR, 1.955MM - 1
-
253304-085 SEAL, DUSTSEAL, DUST
-
263304-196 BEARINGBEARING
-
273304-027 NUT, LOCKNUT, LOCK
