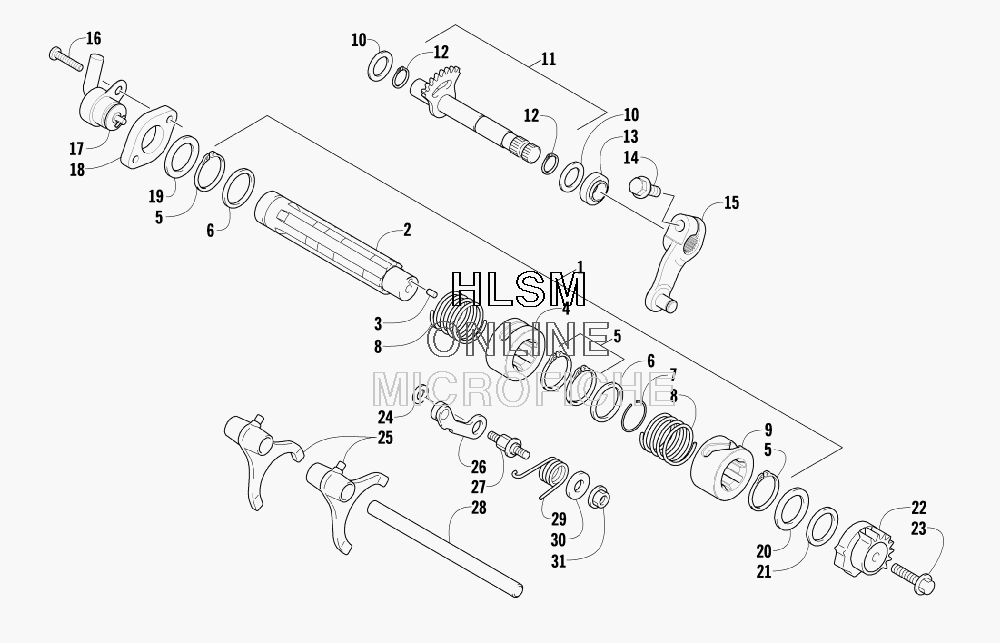

GEAR SHIFTING ASSEMBLY для Arctic Cat 366 (CAT GREEN) [A2008IDG4BUSZ] - 2008 года выпуска
-
№АртикулНазвание
-
10818-024 SHAFT, GEAR SHIFT - ASSEMBLY (INC. 2-9)SHAFT, GEAR SHIFT - ASSEMBLY (INC. 2-9)
-
33304-439 ...PIN, DOWEL...PIN, DOWEL
-
53304-147 ...CIRCLIP, CAM SPRING...CIRCLIP, CAM SPRING
-
60828-079 ...WASHER, CAM SPRING...WASHER, CAM SPRING
-
100828-084 WASHER, SUB-GEAR SHIFT SHAFTWASHER, SUB-GEAR SHIFT SHAFT
-
110818-022 SHAFT, SUB-GEAR SHIFT (INC. 12)SHAFT, SUB-GEAR SHIFT (INC. 12)
-
120831-056 ...CIRCLIP, SUB-GEAR SHIFT SHAFT...CIRCLIP, SUB-GEAR SHIFT SHAFT
-
130830-179 SEAL, SUB-GEAR SHIFT SHAFTSEAL, SUB-GEAR SHIFT SHAFT
-
143304-551 BOLT, FLANGEBOLT, FLANGE
-
150818-080 ARM, SELECTARM, SELECT
-
160826-135 BOLTBOLT
-
173313-434 SWITCH, GEAR SHIFT POSITIONSWITCH, GEAR SHIFT POSITION
-
180818-073 SPACER, SPEED SENSORSPACER, SPEED SENSOR
-
190828-079 WASHER, SHIFT SHAFTWASHER, SHIFT SHAFT
-
200828-081 WASHER, SHIFT SHAFTWASHER, SHIFT SHAFT
-
210828-080 WASHER, GEAR SHIFT CAM PLATEWASHER, GEAR SHIFT CAM PLATE
-
220818-061 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
233304-569 BOLT, GEAR SHIFT CAM PLATEBOLT, GEAR SHIFT CAM PLATE
-
240828-083 WASHER, CAM STOPPERWASHER, CAM STOPPER
-
250818-088 FORK, SHIFTFORK, SHIFT
-
260818-084 STOPPER, CAMSTOPPER, CAM
-
270818-062 SUPPORT, CAM STOPPERSUPPORT, CAM STOPPER
-
280818-021 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
-
290818-020 SPRING, CAM STOPPERSPRING, CAM STOPPER
-
300828-082 WASHER, CAM STOPPER SPRINGWASHER, CAM STOPPER SPRING
-
313305-527 NUT, CAM STOPPER SPRINGNUT, CAM STOPPER SPRING
