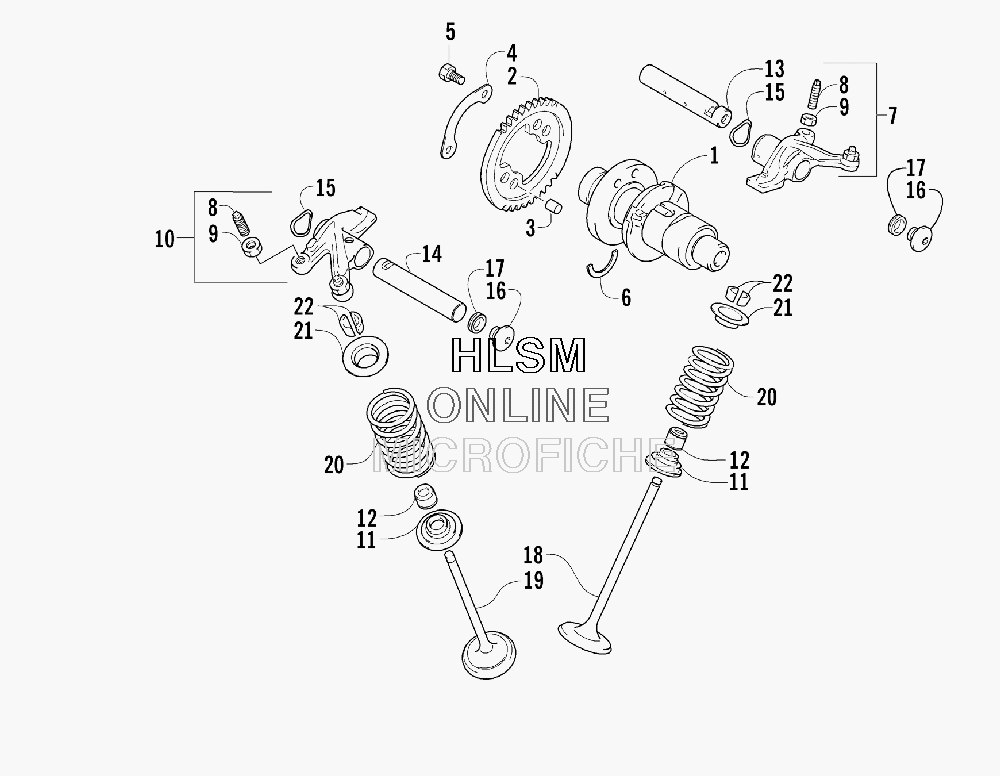

CAMSHAFT/VALVE ASSEMBLY для Arctic Cat 400 AUTO (RED) [A2008ICH4BUSR] - 2008 года выпуска
-
№АртикулНазвание
-
13402-989 CAMSHAFTCAMSHAFT
-
23402-611 SPROCKETSPROCKET
-
33423-047 PINPIN
-
43423-073 WASHERWASHER
-
53423-013 BOLTBOLT
-
63423-071 C-RINGC-RING
-
73402-805 ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 8-9)ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 8-9)
-
83423-075 ...SCREW...SCREW
-
93423-076 ...NUT...NUT
-
103402-139 ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 8-9)ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 8-9)
-
113402-148 SEAT, SPRINGSEAT, SPRING
-
123402-078 SEAL, OILSEAL, OIL
-
133402-140 SHAFT, ROCKER ARMSHAFT, ROCKER ARM
-
143402-141 SHAFT, ROCKER ARMSHAFT, ROCKER ARM
-
153423-031 WASHERWASHER
-
163402-040 PLUG, SHAFTPLUG, SHAFT
-
173402-012 GASKETGASKET
-
183402-725 VALVE, INTAKEVALVE, INTAKE
-
193402-143 VALVE, EXHAUSTVALVE, EXHAUST
-
203402-726 SPRING, VALVESPRING, VALVE
-
213423-541 RETAINER, SPRINGRETAINER, SPRING
-
223402-147 COTTER, VALVECOTTER, VALVE
