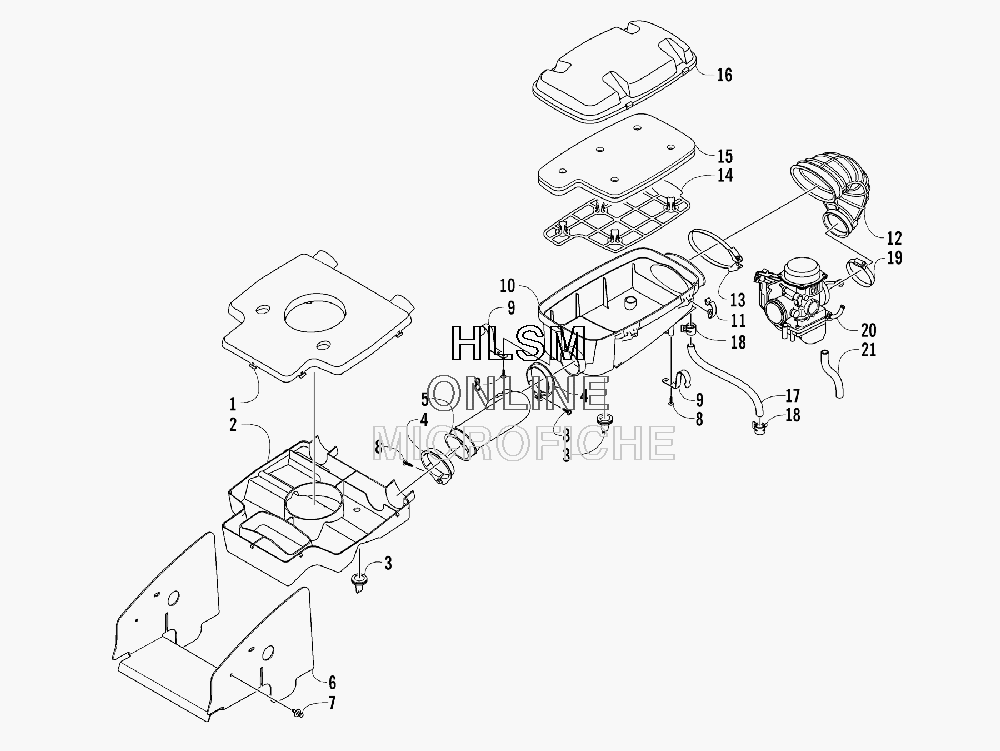

AIR INTAKE ASSEMBLY для Arctic Cat 500 TRV (RED) [A2008TBM4BUSR] - 2008 года выпуска
-
№АртикулНазвание
-
10413-091 DIVERTER, AIR - TOPDIVERTER, AIR - TOP
-
20413-093 DIVERTER, AIR - BOTTOMDIVERTER, AIR - BOTTOM
-
30470-442 VALVE, DRAINVALVE, DRAIN
-
40423-551 CLAMP, BOOTCLAMP, BOOT
-
50470-529 BOOT, AIR INTAKEBOOT, AIR INTAKE
-
61406-747 SHROUD, SPLASHSHROUD, SPLASH
-
70623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
80423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
90423-454 CLIP, MOUNTING - AIR INTAKECLIP, MOUNTING - AIR INTAKE
-
100470-515 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
110423-455 CLIP, SPRINGCLIP, SPRING
-
120470-525 BOOT, CARBURETORBOOT, CARBURETOR
-
130423-554 CLAMP, BOOTCLAMP, BOOT
-
140470-516 SCREEN, AIR FILTERSCREEN, AIR FILTER
-
150470-663 FILTER, AIRFILTER, AIR
-
160470-755 COVER, AIR INTAKECOVER, AIR INTAKE
-
170410-079 HOSE, VENT - CRANKCASEHOSE, VENT - CRANKCASE
-
181623-281 CLAMP, HOSECLAMP, HOSE
-
190423-019 CLAMP, BOOTCLAMP, BOOT
-
200470-739 CARBURETOR, CVK36-AECARBURETOR, CVK36-AE
-
210510-592 HOSE, CARBURETOR DRAINHOSE, CARBURETOR DRAIN
