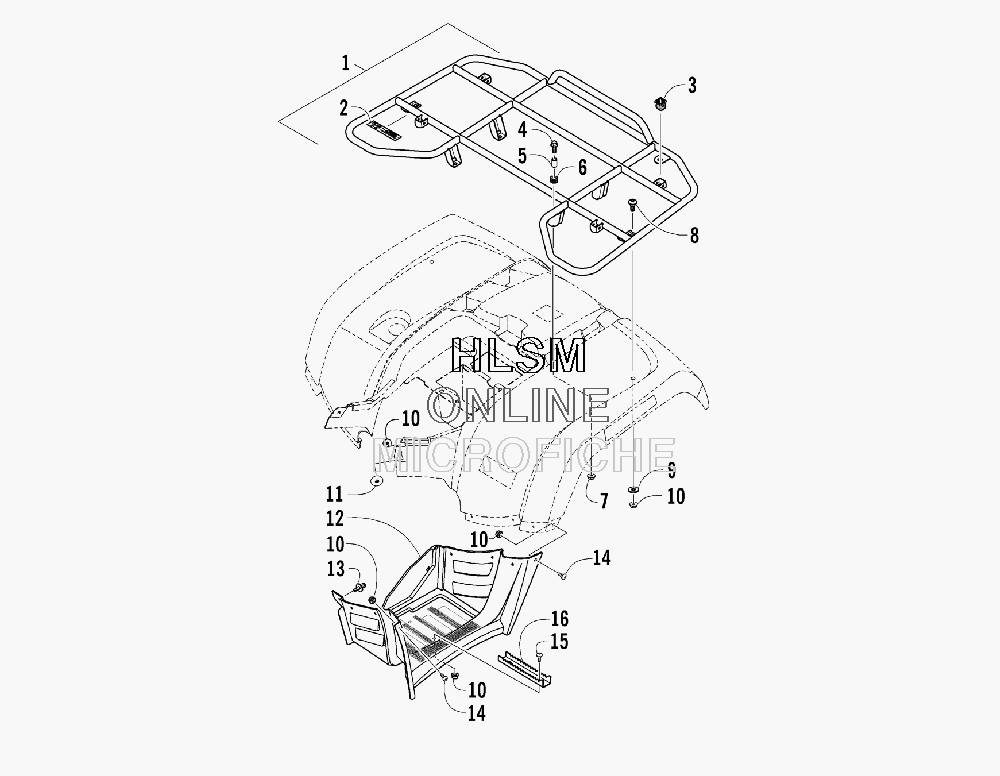

REAR RACK AND FOOTWELL ASSEMBLIES для Arctic Cat 501 AUTO - LE (ORANGE) [A2008IBM4BUSK] - 2008 года выпуска
-
№АртикулНазвание
-
12506-125 RACK, REAR - ASSEMBLY (INC. 2-3)RACK, REAR - ASSEMBLY (INC. 2-3)
-
20411-648 ...DECAL, WARNING - REAR RACK LOAD (200 LB.)...DECAL, WARNING - REAR RACK LOAD (200 LB.)
-
30441-592 ...BUSHING, RACK...BUSHING, RACK
-
48410-830 SCREW, CAP M8X1.25X30 CL8.8 RIE BLKSCREW, CAP M8X1.25X30 CL8.8 RIE BLK
-
50423-669 SPACER, STEELSPACER, STEEL
-
60423-465 GROMMET, RUBBER-12.7X23.8125GROMMET, RUBBER-12.7X23.8125
-
78432-802 NUT, LOCK NYL M8X1.25 CL10 Z & YNUT, LOCK NYL M8X1.25 CL10 Z & Y
-
80423-654 SCREW, SHOULDER M6-1.0 X 18 CL8.8 BLKSCREW, SHOULDER M6-1.0 X 18 CL8.8 BLK
-
98050-222 WASHER, FLAT- 1/4 X .734 X .063 Z & YWASHER, FLAT- 1/4 X .734 X .063 Z & Y
-
100423-540 NUT, FLANGE-LOCK-M6NUT, FLANGE-LOCK-M6
-
110423-101 SCREW, BODY 6MMSCREW, BODY 6MM
-
121406-356 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
122406-429 FOOTWELL - LEFTFOOTWELL - LEFT
-
130623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
140423-419 SCREW, MACHINE M6-1.0 X 16 BLACKSCREW, MACHINE M6-1.0 X 16 BLACK
-
150423-355 SCREW, SHOULDER M6-1.0 X 18-BLKSCREW, SHOULDER M6-1.0 X 18-BLK
-
161506-125 FOOTPEG, BLACKFOOTPEG, BLACK
