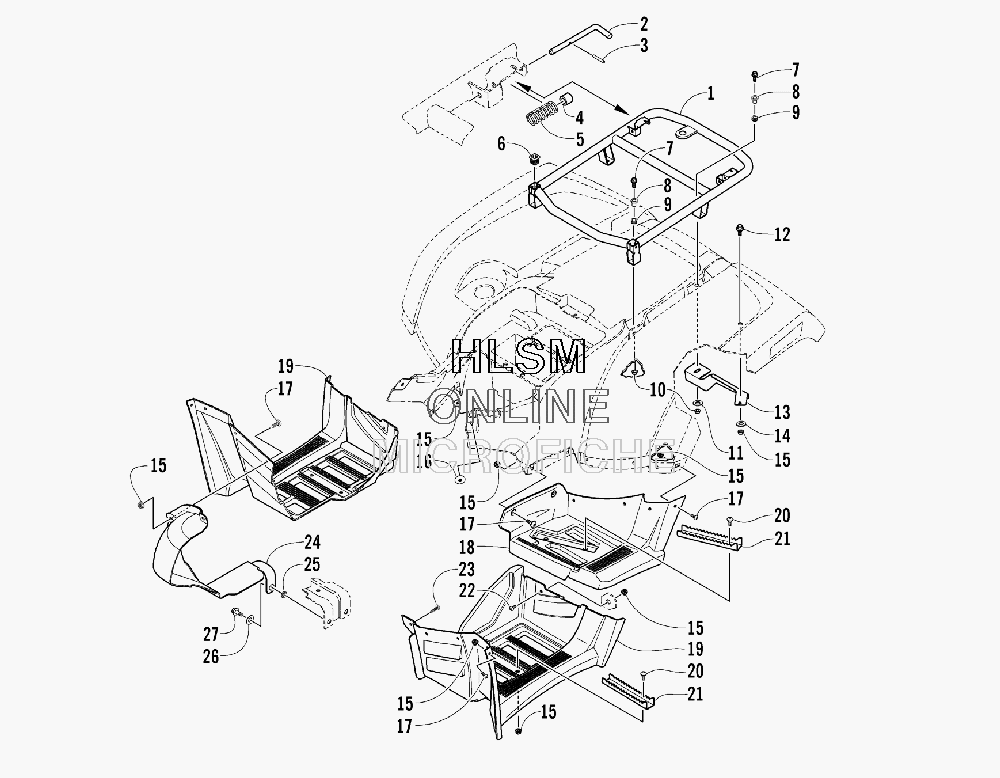

REAR RACK AND FOOTWELL ASSEMBLIES для Arctic Cat 700 DIESEL (GREEN) [A2008TBT4DUSG] - 2008 года выпуска
-
№АртикулНазвание
-
12506-221 RACK, REAR - ASSEMBLY (INC. 2-6)RACK, REAR - ASSEMBLY (INC. 2-6)
-
20541-504 ...PIN - ASSEMBLY (INC. 3-5)...PIN - ASSEMBLY (INC. 3-5)
-
30423-635 ...PIN, ROLL...PIN, ROLL
-
40423-677 ...COLLAR...COLLAR
-
50423-636 ...SPRING...SPRING
-
60441-592 ...BUSHING, RACK...BUSHING, RACK
-
78410-835 SCREW, CAP-HFH M8X1.25X35 CL8.8 RIE BLKSCREW, CAP-HFH M8X1.25X35 CL8.8 RIE BLK
-
80423-669 SPACERSPACER
-
90423-465 GROMMETGROMMET
-
108432-802 NUT, LOCKNUT, LOCK
-
110423-087 WASHERWASHER
-
120423-654 SCREW, SHOULDER-HFH M6-1.0 X 18 CL8.8 BLKSCREW, SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK
-
132506-092 BRACKET, REAR FENDER PAINTED - RIGHTBRACKET, REAR FENDER PAINTED - RIGHT
-
132506-093 BRACKET, REAR FENDER PAINTED - LEFTBRACKET, REAR FENDER PAINTED - LEFT
-
148050-222 WASHERWASHER
-
150423-540 NUT, LOCKNUT, LOCK
-
160423-101 SCREW, BODYSCREW, BODY
-
170423-419 SCREW, MACH-TSTRH-M6-1.0 X 16 BLACKSCREW, MACH-TSTRH-M6-1.0 X 16 BLACK
-
182406-042 FOOTWELL, REAR - RIGHTFOOTWELL, REAR - RIGHT
-
182406-043 FOOTWELL, REAR - LEFTFOOTWELL, REAR - LEFT
-
192506-193 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
192406-471 FOOTWELL - LEFTFOOTWELL - LEFT
-
200423-355 SCREW, SHOULDER-M6-1.0 X 18-BLKSCREW, SHOULDER-M6-1.0 X 18-BLK
-
211506-125 FOOTPEG, BLACKFOOTPEG, BLACK
-
228477-620 SCREW, MACH-TSTRH M6X1.0X20 Z & BLKSCREW, MACH-TSTRH M6X1.0X20 Z & BLK
-
230423-719 SCREW, SELF TAP-PHPNH12-14X3/4 AB BLKSCREW, SELF TAP-PHPNH12-14X3/4 AB BLK
-
242406-531 PANEL, SPLASHPANEL, SPLASH
-
250405-261 BUSHING, SPLASH PANELBUSHING, SPLASH PANEL
-
268050-282 WASHERWASHER
-
278409-020 SCREW, CAPSCREW, CAP
