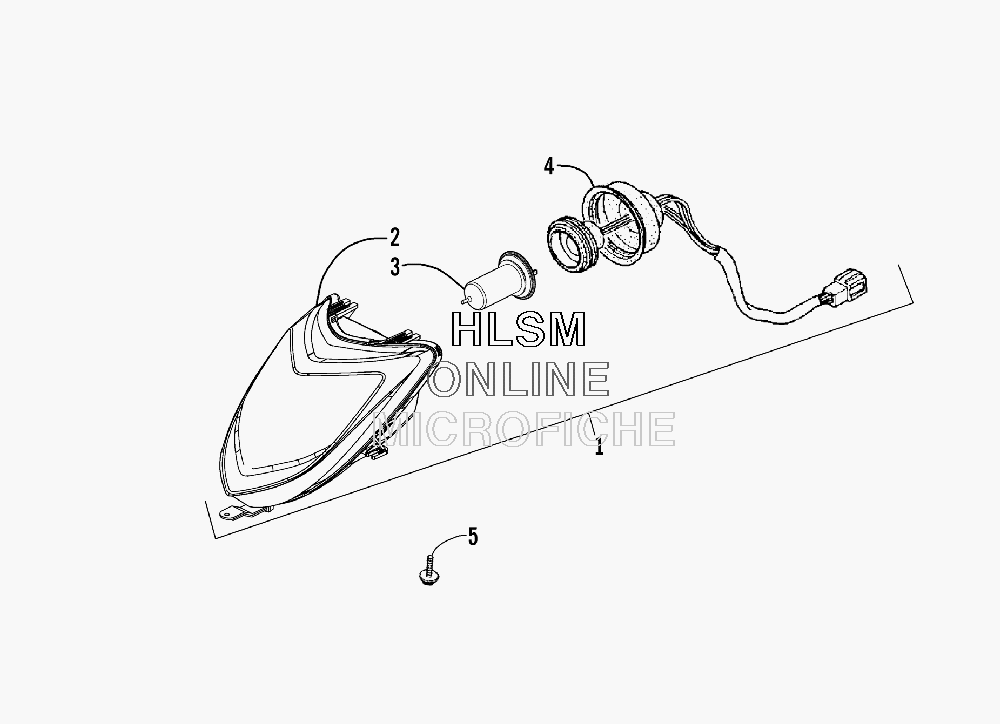

HEADLIGHT ASSEMBLY для Arctic Cat DVX 90 (BLACK/CAT GREEN) EXCEPT CALIF. [A2008KSB2BUSE] - 2008 года выпуска
-
№АртикулНазвание
-
13304-280 HEADLIGHT - ASSEMBLY (INC. 2-4)HEADLIGHT - ASSEMBLY (INC. 2-4)
-
23304-281 ...LENS, HEADLIGHT...LENS, HEADLIGHT
-
33303-846 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
43304-282 ...SOCKET ASSEMBLY...SOCKET ASSEMBLY
-
53304-650 SCREW, SELF-TAPPING 5*16SCREW, SELF-TAPPING 5*16
