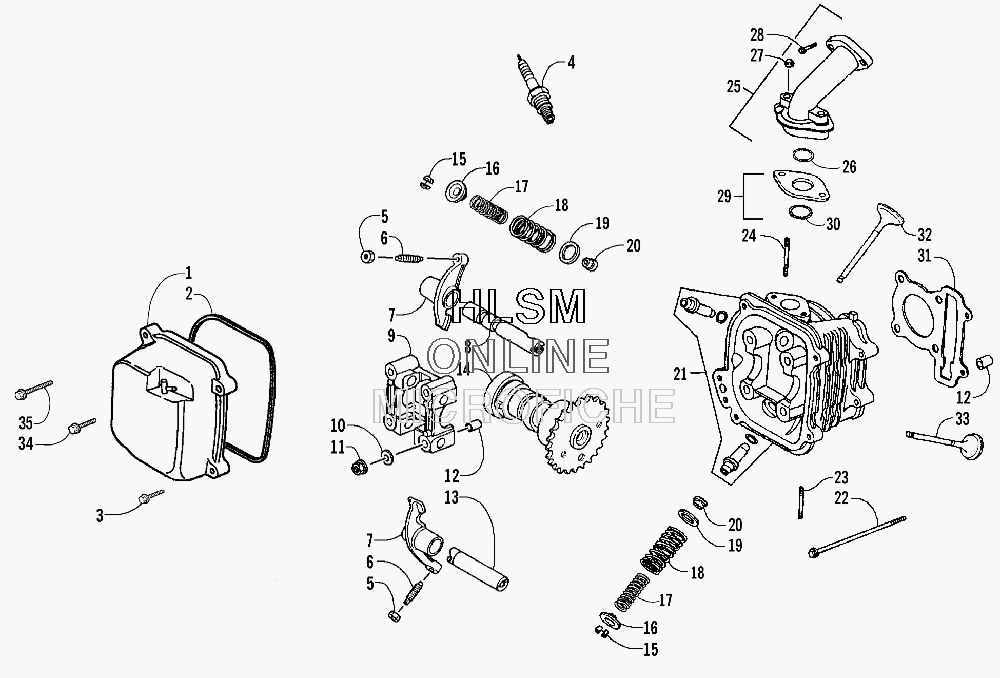

CYLINDER HEAD ASSEMBLY для Arctic Cat DVX 90 (PINK) EXCEPT CALIF. [A2008KSB2BUST] - 2008 года выпуска
-
№АртикулНазвание
-
3305-471 COMPLETE ENGINE ASSEMBLY - AC20BCCOMPLETE ENGINE ASSEMBLY - AC20BC
-
13305-292 COVER, HEAD - ASSEMBLYCOVER, HEAD - ASSEMBLY
-
23304-616 GASKET, HEAD COVERGASKET, HEAD COVER
-
33303-360 BOLT FLANGE 6*25BOLT FLANGE 6*25
-
40217-726 SPARK PLUG, CR7HSASPARK PLUG, CR7HSA
-
53304-026 NUT, TAPPET ADJUSTINGNUT, TAPPET ADJUSTING
-
63304-007 SCREW, TAPPET ADJUSTINGSCREW, TAPPET ADJUSTING
-
73303-031 VALVE, ROCKER ARMVALVE, ROCKER ARM
-
83303-032 SHAFT, ROCKER ARM - INTAKESHAFT, ROCKER ARM - INTAKE
-
93303-018 HOLDER, CAMSHAFTHOLDER, CAMSHAFT
-
103304-048 WASHER, SEALING 8MMWASHER, SEALING 8MM
-
113303-332 NUT, FLANGE 8MMNUT, FLANGE 8MM
-
123303-342 PIN, DOWEL 10*16PIN, DOWEL 10*16
-
133303-033 SHAFT, ROCKER ARM - EXHAUSTSHAFT, ROCKER ARM - EXHAUST
-
143304-617 CAMSHAFTCAMSHAFT
-
153303-044 COTTER, VALVECOTTER, VALVE
-
163303-042 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
173303-041 SPRING, VALVE - INNERSPRING, VALVE - INNER
-
183303-040 SPRING, VALVE - OUTERSPRING, VALVE - OUTER
-
193303-043 SEAT, VALVE SPRING - OUTERSEAT, VALVE SPRING - OUTER
-
203303-657 SEAL, VALVE STEMSEAL, VALVE STEM
-
213303-016 HEAD, CYLINDERHEAD, CYLINDER
-
223303-389 BOLT, FLANGE 6*95BOLT, FLANGE 6*95
-
233304-010 BOLT, STUD 8*32BOLT, STUD 8*32
-
243303-310 BOLT, STUD 6*50BOLT, STUD 6*50
-
253303-059 PIPE, INTAKE - ASSEMBLY (INC. 26)PIPE, INTAKE - ASSEMBLY (INC. 26)
-
263303-304 ...O-RING 22*2.0...O-RING 22*2.0
-
273303-331 NUT, FLANGE 6MMNUT, FLANGE 6MM
-
283303-384 BOLT, FLANGE SH 6*25BOLT, FLANGE SH 6*25
-
293303-511 INSULATOR, CARBURETOR - ASSEMBLY (INC. 30)INSULATOR, CARBURETOR - ASSEMBLY (INC. 30)
-
303304-596 ...O-RING 23X2.4...O-RING 23X2.4
-
313303-019 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
323303-039 VALVE, EXHAUSTVALVE, EXHAUST
-
333303-038 VALVE, INTAKE **(0) C.2001.08.01VALVE, INTAKE **(0) C.2001.08.01
-
343303-362 BOLT, FLANGE 6*35BOLT, FLANGE 6*35
-
353303-363 BOLT, FLANGE 6*50BOLT, FLANGE 6*50
