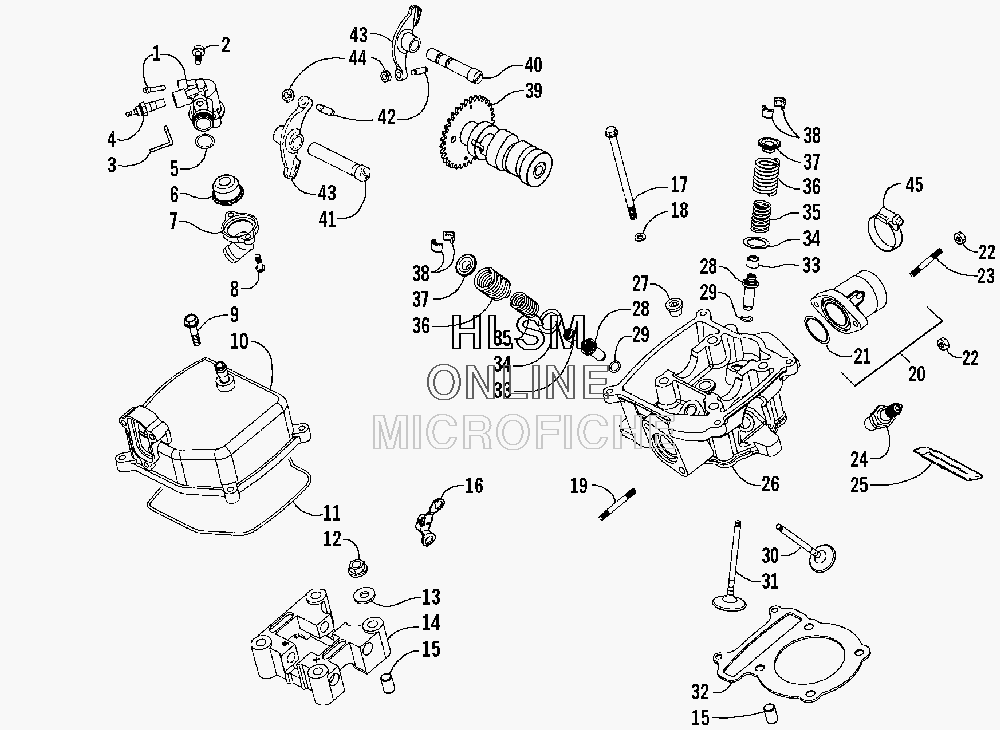

CYLINDER HEAD ASSEMBLY для Arctic Cat 250 UTILITY (RED) [A2009KUE2BUSR] - 2009 года выпуска
-
№АртикулНазвание
-
3305-533 ENGINE ASSEMBLY AC50EA COMPLETEENGINE ASSEMBLY AC50EA COMPLETE
-
13303-756 HOUSING, THERMOSTAT - UPPERHOUSING, THERMOSTAT - UPPER
-
23303-617 SCREW, CAPSCREW, CAP
-
33303-860 TERMINAL, GROUNDTERMINAL, GROUND
-
43303-861 SENSOR, COOLANT TEMPERATURESENSOR, COOLANT TEMPERATURE
-
53304-094 O-RINGO-RING
-
63303-755 THERMOSTATTHERMOSTAT
-
73303-757 HOUSING, THERMOSTAT - LOWERHOUSING, THERMOSTAT - LOWER
-
83304-118 SCREW, MACHINESCREW, MACHINE
-
93303-360 SCREW, CAPSCREW, CAP
-
103303-660 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
113303-661 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
123303-332 NUT, LOCKNUT, LOCK
-
133304-048 WASHERWASHER
-
143303-658 HOLDER, CAMSHAFTHOLDER, CAMSHAFT
-
153303-342 PIN, DOWELPIN, DOWEL
-
163303-670 PLATE, STOPPER - ASSEMBLYPLATE, STOPPER - ASSEMBLY
-
173303-390 SCREW, CAPSCREW, CAP
-
183304-049 WASHERWASHER
-
193304-010 BOLT, STUDBOLT, STUD
-
203305-460 MANIFOLD, INTAKE (INC. 21)MANIFOLD, INTAKE (INC. 21)
-
213304-097 ...O-RING...O-RING
-
223304-124 NUTNUT
-
233304-114 BOLT, STUDBOLT, STUD
-
240217-730 SPARK PLUG (DPR7EA-9)SPARK PLUG (DPR7EA-9)
-
253304-157 CLAMP, WIRECLAMP, WIRE
-
263303-655 HEAD, CYLINDER (INC. 27-29)HEAD, CYLINDER (INC. 27-29)
-
273303-656 ...BOLT, SEALING...BOLT, SEALING
-
293304-461 ...O-RING...O-RING
-
303303-680 VALVE, INTAKEVALVE, INTAKE
-
313303-681 VALVE, EXHAUSTVALVE, EXHAUST
-
323303-659 GASKET, HEAD CYLINDERGASKET, HEAD CYLINDER
-
333303-657 SEAL, VALVE STEMSEAL, VALVE STEM
-
343303-043 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
353303-683 SPRING, VALVE - INNERSPRING, VALVE - INNER
-
363303-682 SPRING, VALVE - OUTERSPRING, VALVE - OUTER
-
373303-042 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
383303-044 VALVE, COTTERVALVE, COTTER
-
393303-669 CAMSHAFTCAMSHAFT
-
403303-674 SHAFT, ROCKER ARM - INTAKESHAFT, ROCKER ARM - INTAKE
-
413303-675 SHAFT, ROCKER ARM - EXHAUSTSHAFT, ROCKER ARM - EXHAUST
-
423304-007 SCREW, GAP ADJUSTERSCREW, GAP ADJUSTER
-
433303-673 ARM, ROCKERARM, ROCKER
-
443304-026 NUT, GAP ADJUSTERNUT, GAP ADJUSTER
-
453305-410 CLAMPCLAMP
