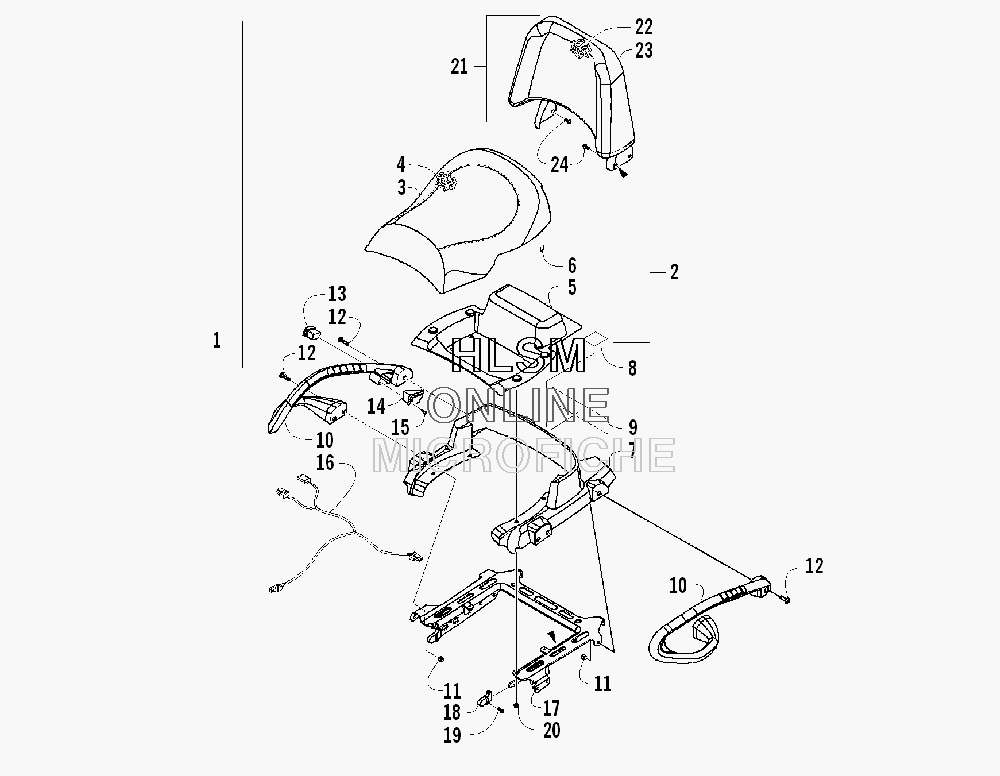

PASSENGER SEAT AND BACKREST ASSEMBLY для Arctic Cat 500 H1 TRV - EURO (BLACK LE) [A2009TBO4EOSQ] - 2009 года выпуска
-
№АртикулНазвание
-
12506-938 SEAT, PASSENGER - ASSEMBLY (INC. 2-20)SEAT, PASSENGER - ASSEMBLY (INC. 2-20)
-
22506-940 ...SEAT, PASSENGER - SUB-ASSEMBLY (INC. 3-6)...SEAT, PASSENGER - SUB-ASSEMBLY (INC. 3-6)
-
32506-944 ......COVER, SEAT - PASSENGER......COVER, SEAT - PASSENGER
-
42506-942 ......FOAM, SEAT - PASSENGER......FOAM, SEAT - PASSENGER
-
52406-110 ......BASE, SEAT - INNER......BASE, SEAT - INNER
-
60624-263 ......STAPLE......STAPLE
-
72406-044 ...BASE, SEAT - PASSENGER...BASE, SEAT - PASSENGER
-
81411-251 ...DECAL, WARNING - PASSENGER...DECAL, WARNING - PASSENGER
-
90411-814 ...DECAL, "ARCTIC CAT"...DECAL, "ARCTIC CAT"
-
102406-744 ...HANDHOLD-HEATED, PASSENGER - RIGHT...HANDHOLD-HEATED, PASSENGER - RIGHT
-
102406-745 ...HANDHOLD-HEATED, PASSENGER - LEFT...HANDHOLD-HEATED, PASSENGER - LEFT
-
118432-802 ...NUT, LOCK...NUT, LOCK
-
128468-830 ...SCREW, MACH-TSPNH M8X1.25X30 CL8.8 BLK...SCREW, MACH-TSPNH M8X1.25X30 CL8.8 BLK
-
130409-126 ...SWITCH, HANDWARMER...SWITCH, HANDWARMER
-
142416-042 ...COVER, SWITCH...COVER, SWITCH
-
150423-342 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
160486-318 ...HARNESS, ADAPTER - HANDWARMER...HARNESS, ADAPTER - HANDWARMER
-
172516-040 ...BRACKET, SEAT SUPPORT - ASSEMBLY...BRACKET, SEAT SUPPORT - ASSEMBLY
-
182406-895 ...END CAP, SEAT SUPPORT...END CAP, SEAT SUPPORT
-
190423-538 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
208427-602 ...NUT, LOCK...NUT, LOCK
-
212516-020 BACKREST ASSEMBLY (INC. 22-23)BACKREST ASSEMBLY (INC. 22-23)
-
222516-018 ...FOAM, BACKREST...FOAM, BACKREST
-
232516-141 ...COVER, BACKREST...COVER, BACKREST
-
248408-816 SCREW, CAPSCREW, CAP
