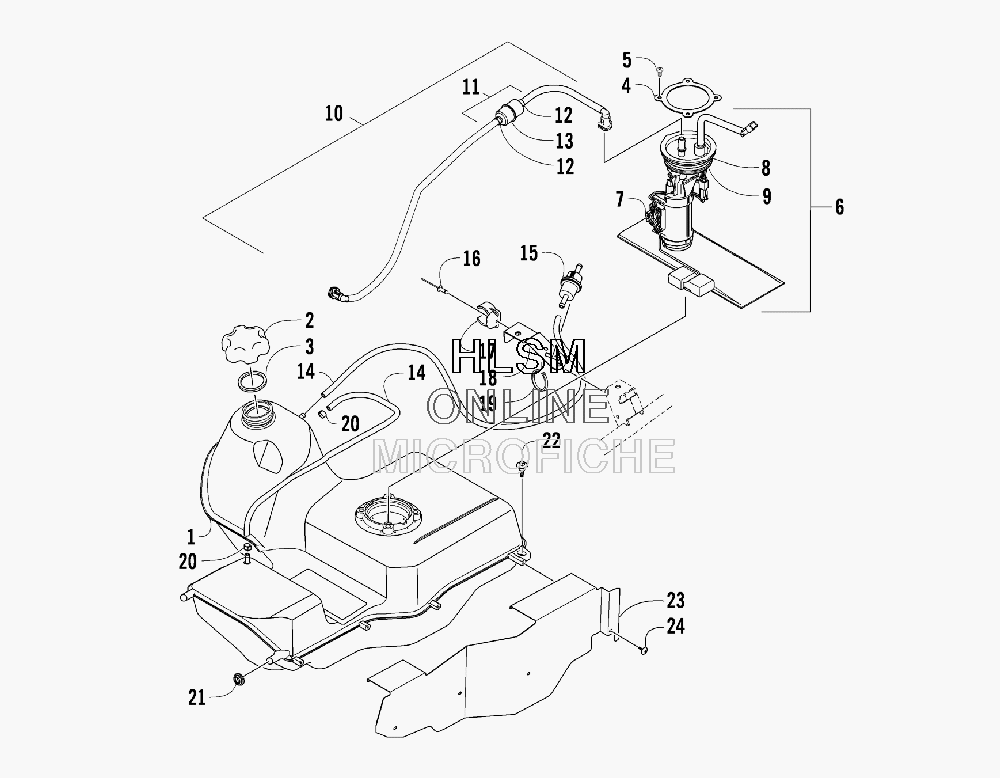

GAS TANK ASSEMBLY для Arctic Cat 700 HI CRUISER (STEEL BLUE) [A2009TCT4EUSV] - 2009 года выпуска
-
№АртикулНазвание
-
10570-206 TANK, GAS - ASSEMBLY (INC. 2-5)TANK, GAS - ASSEMBLY (INC. 2-5)
-
20470-438 CAP, GAS TANK (INC. 3)CAP, GAS TANK (INC. 3)
-
30109-733 GASKET, GAS TANK CAPGASKET, GAS TANK CAP
-
40470-606 PLATE, MOUNTING - FUEPUMPPLATE, MOUNTING - FUEPUMP
-
58476-612 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
60570-271 PUMP, FUEL- ASSEMBLY (INC. 7-9)PUMP, FUEL- ASSEMBLY (INC. 7-9)
-
70570-252 SENSOR, FUEL LEVEL- KIT (INC. 8-9)SENSOR, FUEL LEVEL- KIT (INC. 8-9)
-
80470-614 SEAL, FUEL PUMPSEAL, FUEL PUMP
-
90470-613 SEAL, FUEL PUMPSEAL, FUEL PUMP
-
100570-277 HOSE, GASLINE - ASSEMBLY (INC. 11-13)HOSE, GASLINE - ASSEMBLY (INC. 11-13)
-
110570-246 FILTER, FUEL- KIT (INC. 12-13)FILTER, FUEL- KIT (INC. 12-13)
-
140410-070 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
150510-335 FILTER, IN-LINEFILTER, IN-LINE
-
168060-628 RIVET, BLIND-DH AA66 BLKRIVET, BLIND-DH AA66 BLK
-
171670-826 BRACKET, FUEL FILTERBRACKET, FUEL FILTER
-
180470-794 BRACKET, FILTER MOUNTINGBRACKET, FILTER MOUNTING
-
190123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
200423-688 CLAMP, HOSECLAMP, HOSE
-
210423-460 GROMMETGROMMET
-
220423-732 SCREW, SHOULDERSCREW, SHOULDER
-
230470-822 SHIELD, HEATSHIELD, HEAT
-
240623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
