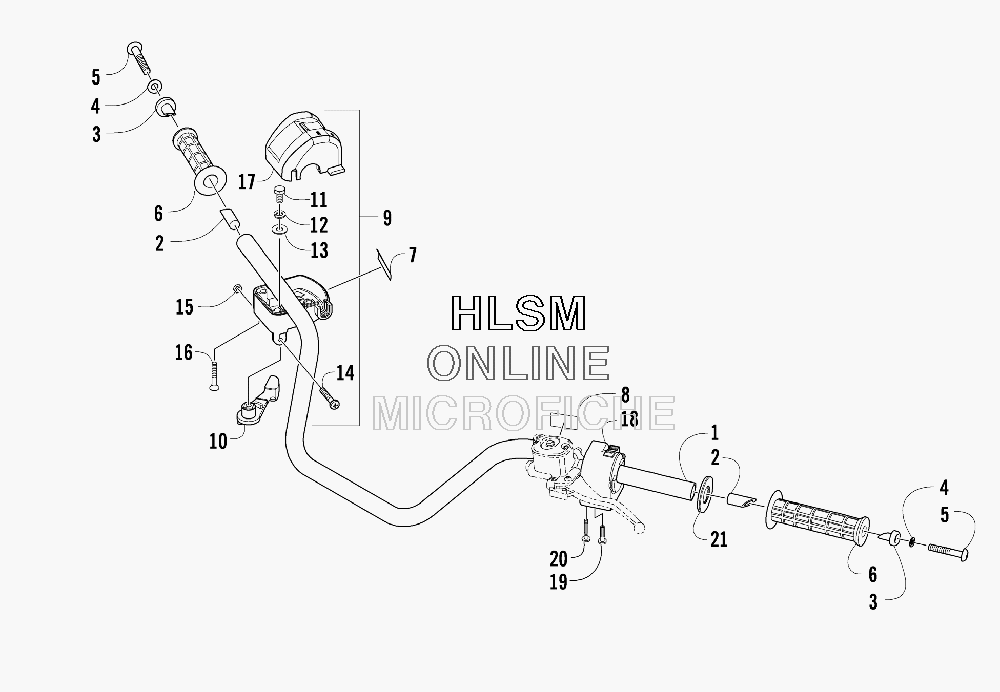

HANDLEBAR ASSEMBLY для Arctic Cat 700 MUD PRO (METALLIC CAT GREEN) [A2009IFT4EUSZ] - 2009 года выпуска
-
№АртикулНазвание
-
10505-537 HANDLEBARHANDLEBAR
-
20405-218 PLUG, HANDLEBARPLUG, HANDLEBAR
-
30405-149 END CAP, HANDLEBAREND CAP, HANDLEBAR
-
48050-247 WASHERWASHER
-
58477-845 SCREW, MACH-TSTRH M8X1.25X45 Z & BLKSCREW, MACH-TSTRH M8X1.25X45 Z & BLK
-
60405-147 GRIP, HANDLEBARGRIP, HANDLEBAR
-
70411-966 DECAL, WARNING - DIFFERENTIAL LOCKDECAL, WARNING - DIFFERENTIAL LOCK
-
81411-865 DECAL, WARNING - BRAKE LEVER LOCKDECAL, WARNING - BRAKE LEVER LOCK
-
90509-045 CASE, THROTTLE - ASSEMBLY (INC. 10-17)CASE, THROTTLE - ASSEMBLY (INC. 10-17)
-
103409-001 ...LEVER...LEVER
-
113007-392 ...SCREW, CAP...SCREW, CAP
-
123004-447 ...WASHER, LOCK...WASHER, LOCK
-
133003-030 ...WASHER...WASHER
-
143423-014 ...SCREW, MACHINE...SCREW, MACHINE
-
153423-327 ...NUT...NUT
-
163423-199 ...SCREW, MACHINE...SCREW, MACHINE
-
170409-119 ...COVER, THROTTLE CASE W/SWITCH...COVER, THROTTLE CASE W/SWITCH
-
180509-014 SWITCH, CONTROL - ASSEMBLY (INC. 19-20)SWITCH, CONTROL - ASSEMBLY (INC. 19-20)
-
190409-027 ...SCREW, SWITCH CONTROL - 5X35-6ZK...SCREW, SWITCH CONTROL - 5X35-6ZK
-
200409-028 ...SCREW, SWITCH CONTROL - 5X45-6ZK...SCREW, SWITCH CONTROL - 5X45-6ZK
-
213409-019 COVER, SWITCH HOUSINGCOVER, SWITCH HOUSING
