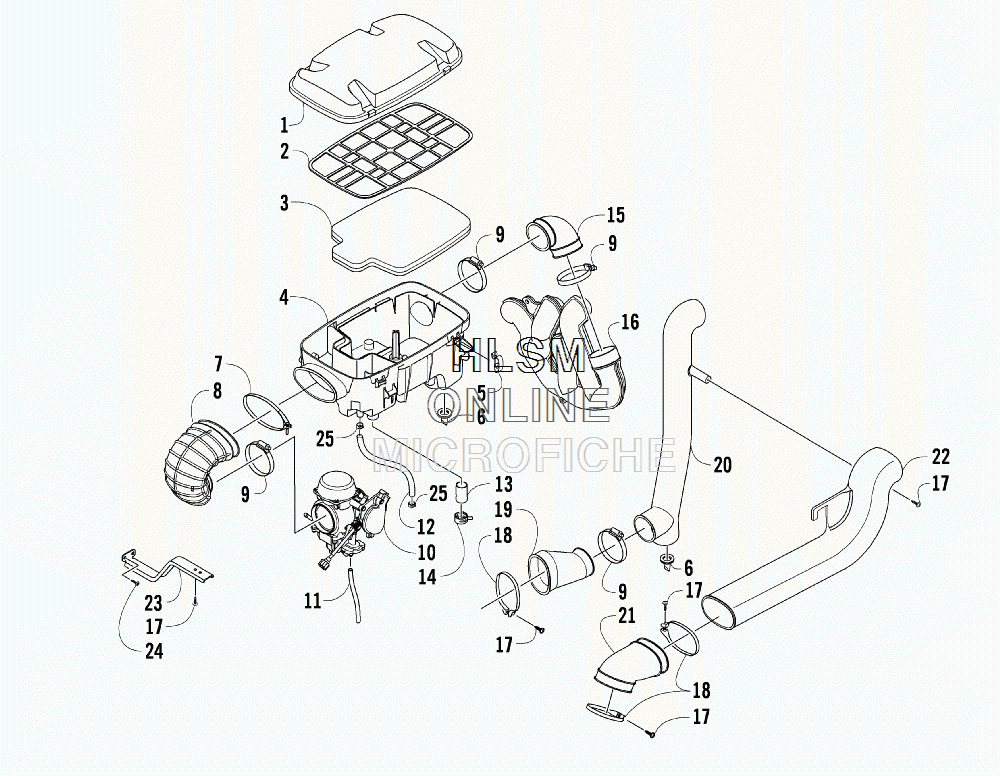

AIR INTAKE ASSEMBLY для Arctic Cat PROWELER 650 XT (GREEN) [U2009P2S4BUSG] - 2009 года выпуска
-
№АртикулНазвание
-
10470-755 COVER, AIR INTAKECOVER, AIR INTAKE
-
20470-560 SCREEN, AIR FILTERSCREEN, AIR FILTER
-
30470-558 FILTER, AIRFILTER, AIR
-
40470-675 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
50423-455 CLIP, SPRINGCLIP, SPRING
-
60470-442 VALVE, DRAINVALVE, DRAIN
-
70423-554 CLAMP, BOOTCLAMP, BOOT
-
80470-525 BOOT, CARBURETORBOOT, CARBURETOR
-
90423-019 CLAMP, HOSECLAMP, HOSE
-
100470-742 CARBURETOR, CVK36-AECARBURETOR, CVK36-AE
-
110510-593 HOSE, DRAINHOSE, DRAIN
-
120410-172 HOSE, VENTHOSE, VENT
-
130423-766 CAP, DRAINCAP, DRAIN
-
141623-287 CLAMP, HOSECLAMP, HOSE
-
150413-098 BOOT, AIR-INBOOT, AIR-IN
-
160513-024 DUCT, AIR-INDUCT, AIR-IN
-
170423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
180423-550 CLAMPCLAMP
-
190413-049 BOOT, DUCTBOOT, DUCT
-
200413-188 DUCTDUCT
-
210413-109 BOOT, AIR-OUT - CLUTCHBOOT, AIR-OUT - CLUTCH
-
220413-189 DUCT, AIR-OUT - CLUTCHDUCT, AIR-OUT - CLUTCH
-
232506-651 BRACKET, SUPPORTBRACKET, SUPPORT
-
240623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
250423-045 CLAMP, HOSECLAMP, HOSE
