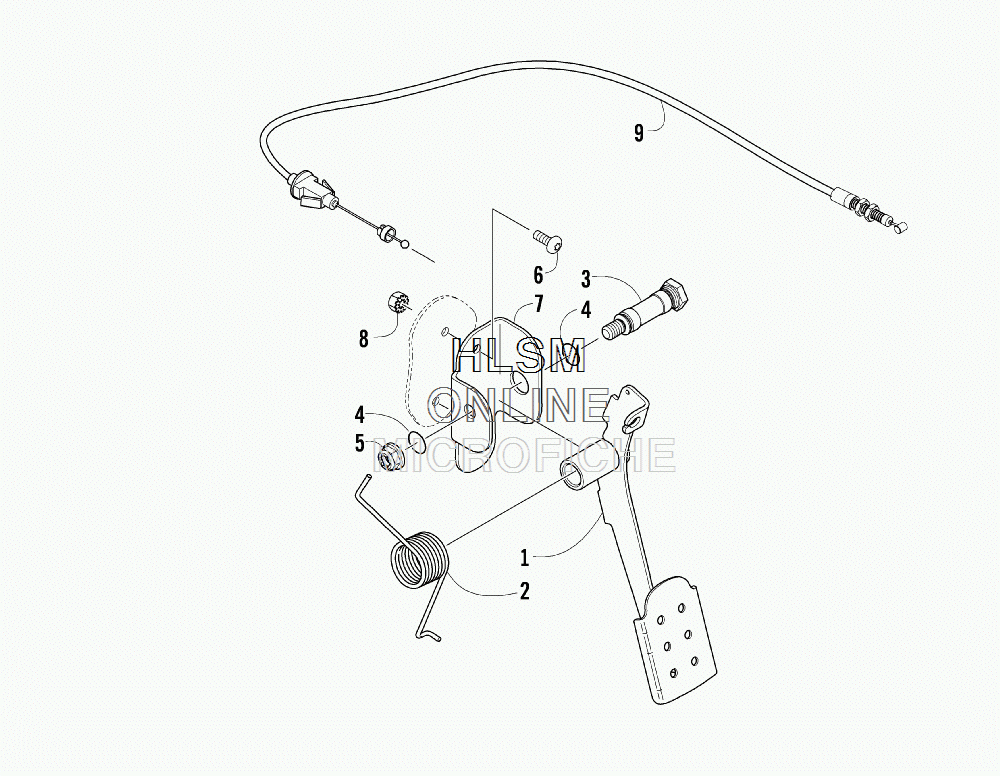

ACCELERATOR ASSEMBLY для Arctic Cat PROWELER 650 XT (RED) [U2009P2S4BUSR] - 2009 года выпуска
-
№АртикулНазвание
-
10502-974 PEDAL, ACCELERATORPEDAL, ACCELERATOR
-
20405-233 SPRINGSPRING
-
30402-872 AXLEAXLE
-
41602-213 O-RINGO-RING
-
58422-002 NUT, LOCKNUT, LOCK
-
68476-625 SCREW, MACHINESCREW, MACHINE
-
70502-991 BRACKET, ACCELERATOR PEDALBRACKET, ACCELERATOR PEDAL
-
80623-038 NUT W/WASHERNUT W/WASHER
-
90487-048 CABLE, ACCELERATORCABLE, ACCELERATOR
