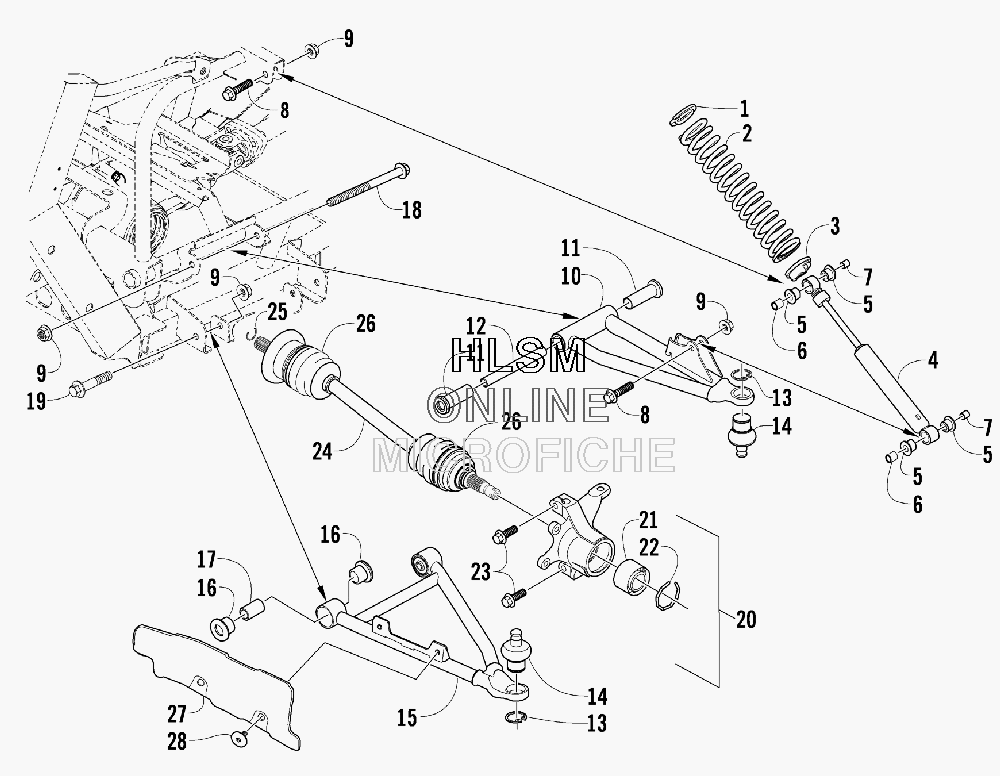

FRONT SUSPENSION ASSEMBLY для Arctic Cat PROWELER XTX (M4 CAMO) [U2009P3T4EUSC] - 2009 года выпуска
-
№АртикулНазвание
-
11603-889 RETAINER, SPRINGRETAINER, SPRING
-
20403-161 SPRING (220LB/IN X 13.3), SUSPENSION - BLACKSPRING (220LB/IN X 13.3), SUSPENSION - BLACK
-
30403-102 CAM, SPRING ADJUSTERCAM, SPRING ADJUSTER
-
40403-147 SHOCK ABSORBER (INC. 5-6)SHOCK ABSORBER (INC. 5-6)
-
50603-955 ...BUSHING...BUSHING
-
61603-209 ...SLEEVE...SLEEVE
-
70404-116 SLEEVESLEEVE
-
88409-040 SCREW, CAPSCREW, CAP
-
90423-744 NUT, LOCKNUT, LOCK
-
100503-196 A-ARM, UPPER RIGHT - BLACK (INC. 11-14)A-ARM, UPPER RIGHT - BLACK (INC. 11-14)
-
100503-197 A-ARM, UPPER LEFT - BLACK (INC. 11-14)A-ARM, UPPER LEFT - BLACK (INC. 11-14)
-
110403-081 ...BUSHING...BUSHING
-
120403-080 ...AXLE...AXLE
-
130423-009 ...RING, RETAINING...RING, RETAINING
-
140405-115 ...BALL JOINT...BALL JOINT
-
150503-334 A-ARM, LOWER RIGHT - BLACK (INC. 13-14 AND 16-17)A-ARM, LOWER RIGHT - BLACK (INC. 13-14 AND 16-17)
-
150503-335 A-ARM, LOWER LEFT - BLACK (INC. 13-14 AND 16-17)A-ARM, LOWER LEFT - BLACK (INC. 13-14 AND 16-17)
-
160403-115 ...BUSHING...BUSHING
-
170403-114 ...AXLE...AXLE
-
180423-723 SCREW, CAP-HFH M10-1.25X170 Z & Y CL 10.9SCREW, CAP-HFH M10-1.25X170 Z & Y CL 10.9
-
198409-075 SCREW, CAP-HFH M10X1.25X75 CL10.9 Z & YSCREW, CAP-HFH M10X1.25X75 CL10.9 Z & Y
-
200505-580 KNUCKLE - ASSEMBLY - RIGHT (INC. 21-22)KNUCKLE - ASSEMBLY - RIGHT (INC. 21-22)
-
200505-581 KNUCKLE - ASSEMBLY - LEFT (INC. 21-22)KNUCKLE - ASSEMBLY - LEFT (INC. 21-22)
-
211402-809 ...BEARING...BEARING
-
220423-423 ...RING, RETAINING...RING, RETAINING
-
238409-030 SCREW, CAP-HFH M10X1.25X30 CL10.9 Z & YSCREW, CAP-HFH M10X1.25X30 CL10.9 Z & Y
-
241502-348 HALFSHAFT, 688MM-24T-LOCKING - RIGHT (INC. 25-26)HALFSHAFT, 688MM-24T-LOCKING - RIGHT (INC. 25-26)
-
241502-347 HALFSHAFT,6 88MM-24T - LEFT (INC. 25-26)HALFSHAFT,6 88MM-24T - LEFT (INC. 25-26)
-
250423-844 ...RING, RETAINING...RING, RETAINING
-
260436-276 ...REPAIR KIT, BOOT - FRONT AXLE...REPAIR KIT, BOOT - FRONT AXLE
-
271406-034 GUARD, BOOT - RIGHTGUARD, BOOT - RIGHT
-
271406-035 GUARD, BOOT - LEFTGUARD, BOOT - LEFT
-
280423-545 SCREW, SHOULDERSCREW, SHOULDER
