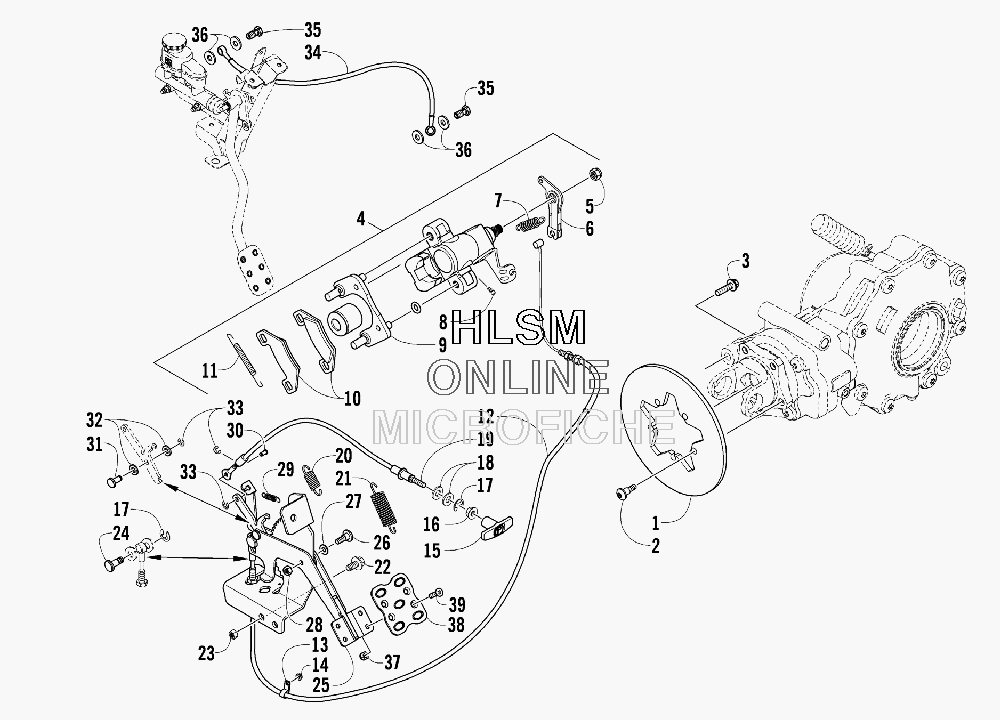

REAR AND PARKING BRAKE ASSEMBLY для Arctic Cat PROWLER 550 - EURO (GREEN) [U2009P1O4BOSG] - 2009 года выпуска
-
№АртикулНазвание
-
11402-710 ROTORROTOR
-
20423-557 SCREW, SHOULDERSCREW, SHOULDER
-
38408-836 SCREW, CAPSCREW, CAP
-
41502-460 BRAKE - ASSEMBLY (INC. 5-11)BRAKE - ASSEMBLY (INC. 5-11)
-
50502-988 NUTNUT
-
61502-160 LEVER, ACTUATORLEVER, ACTUATOR
-
70502-985 SPRINGSPRING
-
80502-609 VALVE, BLEEDVALVE, BLEED
-
90502-605 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
101436-165 KIT-PAD, BRAKE-SET (TYPE 97)KIT-PAD, BRAKE-SET (TYPE 97)
-
111502-161 SPRING, ANTI-RATTLESPRING, ANTI-RATTLE
-
120487-036 CABLE, PARKING BRAKE (INC. 13)CABLE, PARKING BRAKE (INC. 13)
-
130423-923 CLAMPCLAMP
-
140423-540 NUT, LOCKNUT, LOCK
-
151502-024 HANDLE, BRAKE RELEASEHANDLE, BRAKE RELEASE
-
168424-605 NUTNUT
-
170423-668 E-CLIPE-CLIP
-
180423-913 WASHERWASHER
-
190487-064 CABLE, BRAKE RELEASECABLE, BRAKE RELEASE
-
201502-360 SPRING, CSPRING, C
-
211502-026 SPRING, ASPRING, A
-
228408-816 SCREW, CAPSCREW, CAP
-
238424-802 NUTNUT
-
241502-361 PINPIN
-
251502-354 PARKING BRAKE ASSY W/O CABLE (INC. 26-32 AND TWO NO. 33)PARKING BRAKE ASSY W/O CABLE (INC. 26-32 AND TWO NO. 33)
-
260423-356 SCREW, SHOULDERSCREW, SHOULDER
-
270423-087 WASHERWASHER
-
280624-250 NUT, LOCKNUT, LOCK
-
291502-027 SPRING, BSPRING, B
-
301502-030 PIN, CPIN, C
-
311502-028 PIN, APIN, A
-
328050-212 WASHERWASHER
-
330423-667 E-CLIPE-CLIP
-
341402-388 HOSE, BRAKEHOSE, BRAKE
-
350423-413 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
360423-178 WASHER, CRUSHWASHER, CRUSH
-
378422-502 NUT, LOCKNUT, LOCK
-
381502-324 PAD, PARKING BRAKEPAD, PARKING BRAKE
-
398474-516 SCREW, MACH-TSFH M5X0.8X16 CL8.8 BLKSCREW, MACH-TSFH M5X0.8X16 CL8.8 BLK
