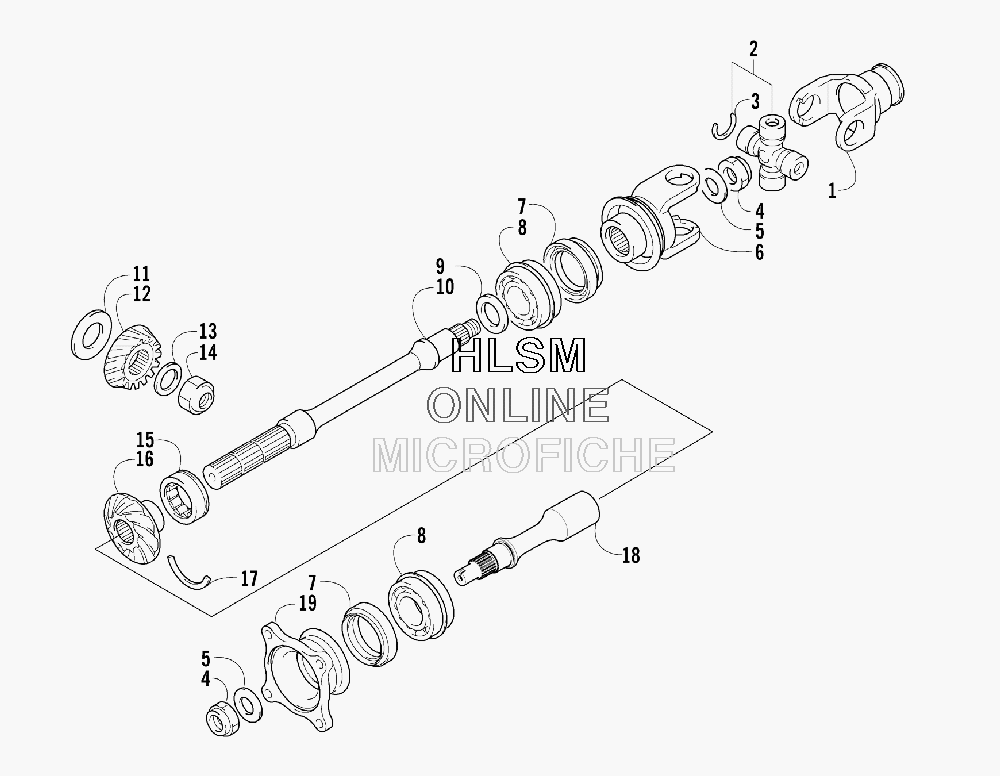

SECONDARY DRIVE ASSEMBLY (ENGINE SERIAL NO. UP TO 0900T10142249) для Arctic Cat THUNDERCAT (SILVER) [A2009IEW4EUSL] - 2009 года выпуска
-
№АртикулНазвание
-
10819-063 YOKE, PROPELLER SHAFT JOINTYOKE, PROPELLER SHAFT JOINT
-
21402-164 JOINT, UNIVERSAL - SET (INC. 3)JOINT, UNIVERSAL - SET (INC. 3)
-
30423-450 ...RING, RETAINING...RING, RETAINING
-
40827-013 NUTNUT
-
50828-020 WASHERWASHER
-
60819-061 YOKE, DRIVE OUTPUT - FRONTYOKE, DRIVE OUTPUT - FRONT
-
70830-043 SEAL, OILSEAL, OIL
-
80832-017 BEARINGBEARING
-
90828-021 SHIM, 25 X 34 X 0.25 MMSHIM, 25 X 34 X 0.25 MM
-
90828-022 SHIM, 25 X 34 X 0.30 MMSHIM, 25 X 34 X 0.30 MM
-
90828-023 SHIM, 25 X 34 X 0.70 MMSHIM, 25 X 34 X 0.70 MM
-
90828-024 SHIM, 25 X 34 X 0.90 MMSHIM, 25 X 34 X 0.90 MM
-
90828-025 SHIM, 25 X 34 X 0.95 MMSHIM, 25 X 34 X 0.95 MM
-
90828-026 SHIM, 25 X 34 X 1.00 MMSHIM, 25 X 34 X 1.00 MM
-
90828-027 SHIM, 25 X 34 X 1.05 MMSHIM, 25 X 34 X 1.05 MM
-
90828-028 SHIM, 25 X 34 X 1.10 MMSHIM, 25 X 34 X 1.10 MM
-
90828-029 SHIM, 25 X 34 X 1.15 MMSHIM, 25 X 34 X 1.15 MM
-
100819-003 SHAFT, SECONDARY DRIVEN - FRONTSHAFT, SECONDARY DRIVEN - FRONT
-
110828-030 SHIM, 24 X 48 X 0.25 MMSHIM, 24 X 48 X 0.25 MM
-
110828-031 SHIM, 24 X 48 X 0.30 MMSHIM, 24 X 48 X 0.30 MM
-
110828-032 SHIM, 24 X 48 X 0.35 MMSHIM, 24 X 48 X 0.35 MM
-
110828-033 SHIM, 24 X 48 X 0.90 MMSHIM, 24 X 48 X 0.90 MM
-
110828-018 SHIM, 24 X 48 X 0.95 MMSHIM, 24 X 48 X 0.95 MM
-
110828-062 SHIM, 24 X 48 X 1.00 MMSHIM, 24 X 48 X 1.00 MM
-
110828-063 SHIM, 24 X 48 X 1.05 MMSHIM, 24 X 48 X 1.05 MM
-
110828-064 SHIM, 24 X 48 X 1.10 MMSHIM, 24 X 48 X 1.10 MM
-
110828-065 SHIM, 24 X 48 X 1.15 MMSHIM, 24 X 48 X 1.15 MM
-
120819-001 GEAR, SECONDARY DRIVEGEAR, SECONDARY DRIVE
-
130828-019 WASHERWASHER
-
140827-012 NUTNUT
-
150832-016 BEARINGBEARING
-
160819-002 GEAR, SECONDARY DRIVENGEAR, SECONDARY DRIVEN
-
170819-011 RING, DRIVEN BEARINGRING, DRIVEN BEARING
-
180819-053 SHAFT, SECONDARY DRIVEN - REARSHAFT, SECONDARY DRIVEN - REAR
-
190819-005 FLANGE, OUTPUT JOINT - REARFLANGE, OUTPUT JOINT - REAR
