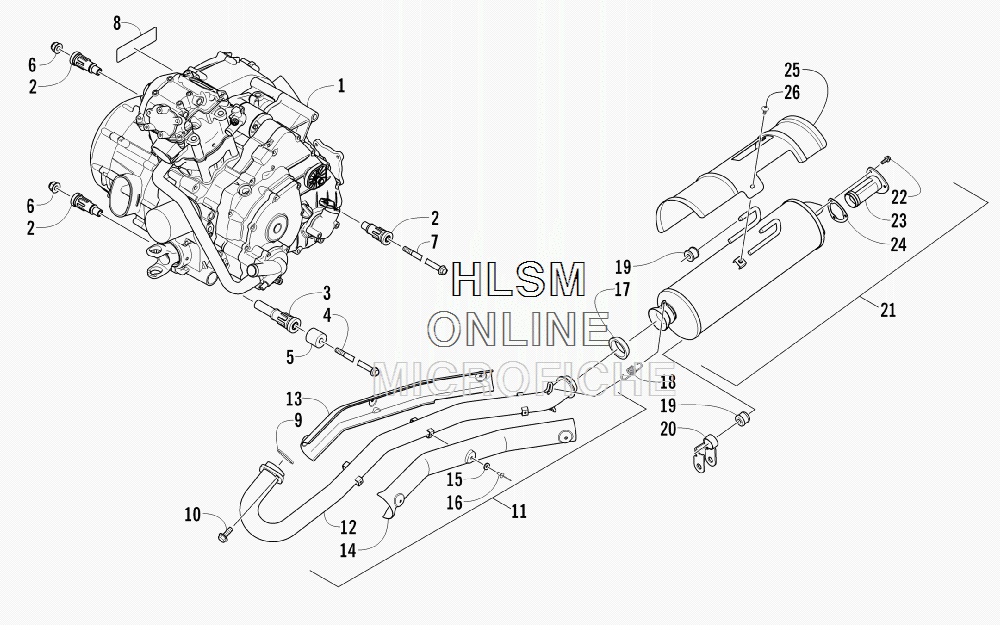

ENGINE AND EXHAUST для Arctic Cat 450 H1 EFI (RED) [A2010ICK4CUSR] - 2010 года выпуска
-
№АртикулНазвание
-
13313-728 ENGINE (INC. 2-3)ENGINE (INC. 2-3)
-
20801-188 ...MOUNT, RUBBER - ENGINE...MOUNT, RUBBER - ENGINE
-
30801-189 ...MOUNT, RUBBER - ENGINE...MOUNT, RUBBER - ENGINE
-
40423-405 SCREW, CAPSCREW, CAP
-
50408-018 SPACERSPACER
-
68428-002 NUT, LOCKNUT, LOCK
-
70423-451 SCREW, CAPSCREW, CAP
-
80411-426 DECAL, WARNING - CLUTCH COVERDECAL, WARNING - CLUTCH COVER
-
93313-743 GASKET, EXHAUSTGASKET, EXHAUST
-
108408-820 SCREW, CAPSCREW, CAP
-
110512-508 PIPE, EXHAUST - ASSEMBLY (INC. 12-16)PIPE, EXHAUST - ASSEMBLY (INC. 12-16)
-
120512-502 ...PIPE, EXHAUST...PIPE, EXHAUST
-
130512-516 ...SHIELD, EXHAUST PIPE - INNER...SHIELD, EXHAUST PIPE - INNER
-
140512-515 ...SHIELD, EXHAUST PIPE - OUTER...SHIELD, EXHAUST PIPE - OUTER
-
158050-217 ...WASHER...WASHER
-
168061-486 ...RIVET...RIVET
-
170412-375 SEAL, EXHAUSTSEAL, EXHAUST
-
180612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
190412-215 BUSHINGBUSHING
-
201506-732 CHANNEL, MUFFLER SUPPORTCHANNEL, MUFFLER SUPPORT
-
210512-355 MUFFLER - ASSEMBLY (INC. 22-24)MUFFLER - ASSEMBLY (INC. 22-24)
-
228408-616 ...SCREW, CAP...SCREW, CAP
-
230512-219 ...ARRESTER, SPARK - ASSEMBLY...ARRESTER, SPARK - ASSEMBLY
-
240412-313 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
250412-373 COVER, MUFFLERCOVER, MUFFLER
-
268477-610 SCREW, MACHINESCREW, MACHINE
