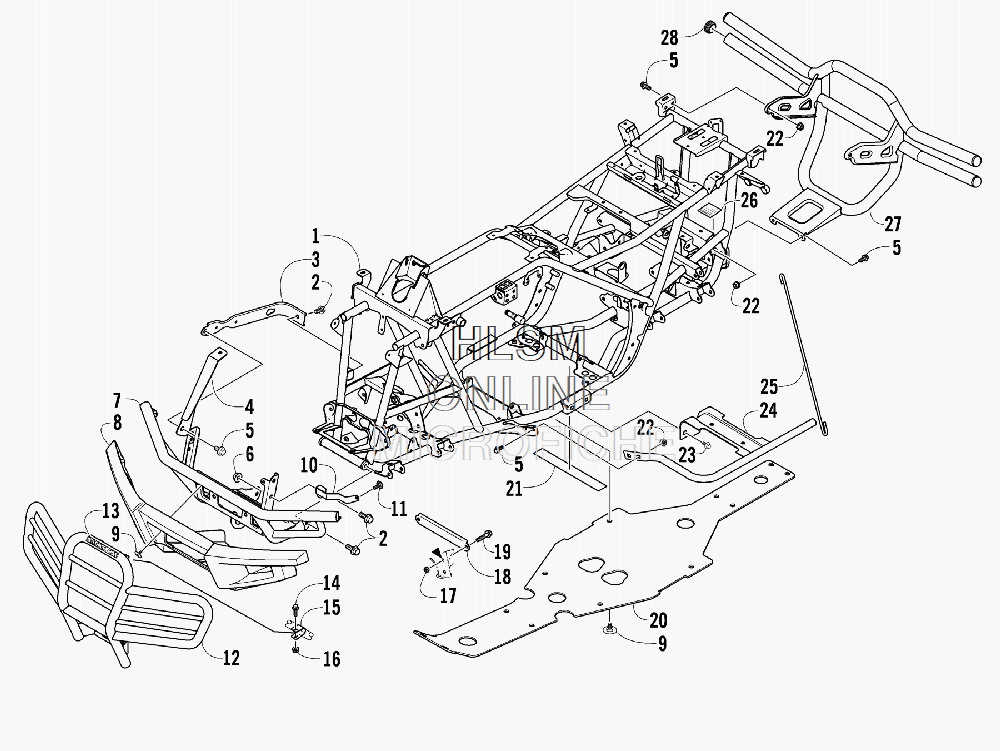

FRAME AND RELATED PARTS для Arctic Cat 550 H1 EFI INTERNATIONAL METALLIC CAT GREEN [A2010ICO4EOSM] - 2010 года выпуска
-
№АртикулНазвание
-
12506-541 FRAME, MAINFRAME, MAIN
-
28409-020 SCREW, CAPSCREW, CAP
-
31506-596 CHANNEL, BUMPER MOUNTING - RIGHTCHANNEL, BUMPER MOUNTING - RIGHT
-
30506-653 CHANNEL, BUMPER MOUNTING - LEFTCHANNEL, BUMPER MOUNTING - LEFT
-
41506-686 BRACKET, MOUNTING - BUMPER - RIGHTBRACKET, MOUNTING - BUMPER - RIGHT
-
41506-687 BRACKET, MOUNTING - BUMPER - LEFTBRACKET, MOUNTING - BUMPER - LEFT
-
58408-816 SCREW, CAPSCREW, CAP
-
68424-002 NUTNUT
-
71506-684 BUMPER, FRONTBUMPER, FRONT
-
81406-868 FASCIA, BUMPER - FRONT - BLACKFASCIA, BUMPER - FRONT - BLACK
-
90423-101 SCREW, SHOULDERSCREW, SHOULDER
-
102516-594 BRACKET, SUPPORT - RIGHTBRACKET, SUPPORT - RIGHT
-
102516-595 BRACKET, SUPPORT - LEFTBRACKET, SUPPORT - LEFT
-
110623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
121436-032 BUMPER, PUSH - FRONT (INC. 13-16)BUMPER, PUSH - FRONT (INC. 13-16)
-
130411-501 ...DECAL, BUMPER - "ARCTIC CAT"...DECAL, BUMPER - "ARCTIC CAT"
-
148410-835 ...SCREW, CAP...SCREW, CAP
-
152506-641 ...BRACKET, SUPPORT...BRACKET, SUPPORT
-
168424-805 ...NUT...NUT
-
170423-744 NUT, LOCKNUT, LOCK
-
181506-429 BRACE, A-ARMBRACE, A-ARM
-
198409-025 SCREW, CAPSCREW, CAP
-
201406-030 PANEL, BELLYPANEL, BELLY
-
210406-289 PAD, FRAMEPAD, FRAME
-
228424-802 NUTNUT
-
238409-016 SCREW, CAPSCREW, CAP
-
241506-659 FOOTREST - RIGHTFOOTREST - RIGHT
-
241506-660 FOOTREST - LEFTFOOTREST - LEFT
-
252506-426 ROD, SUPPORTROD, SUPPORT
-
261411-077 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
-
271506-802 BUMPER, PUSH - REAR (INC. 28)BUMPER, PUSH - REAR (INC. 28)
-
282406-045 ...PLUG, HOLE...PLUG, HOLE
