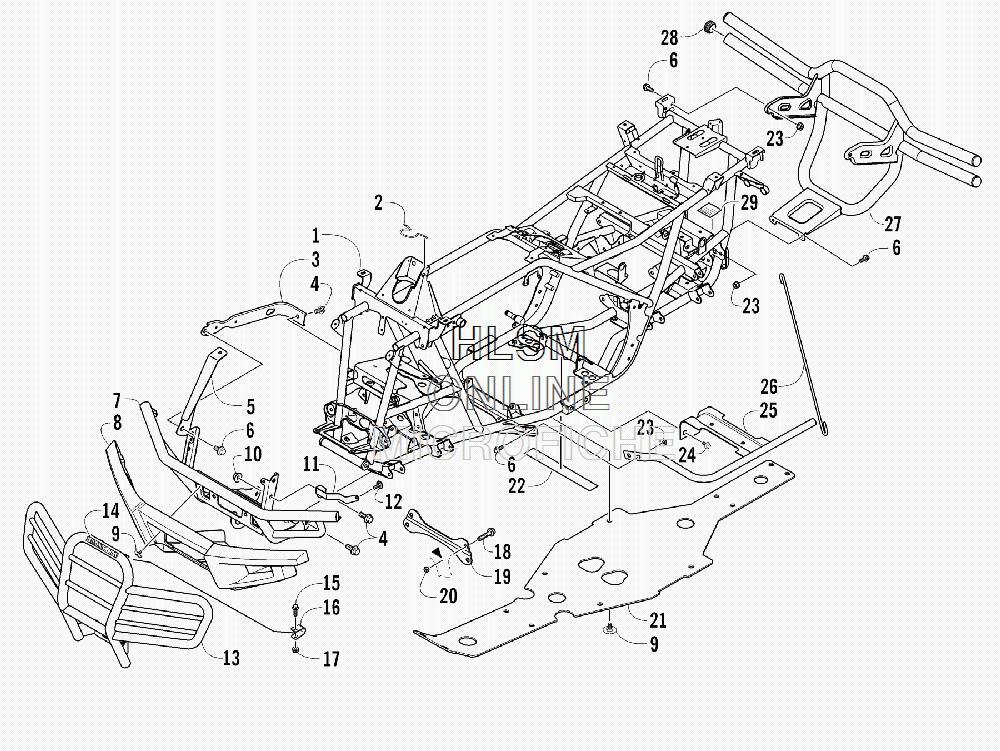

FRAME AND RELATED PARTS для Arctic Cat 550 S EFI (METALLIC GRAY) [A2010ICO1PUSR] - 2010 года выпуска
-
№АртикулНазвание
-
12516-835 FRAME, MAINFRAME, MAIN
-
22416-401 CLIP, ROUTINGCLIP, ROUTING
-
31506-596 CHANNEL, BUMPER MOUNTING - RIGHTCHANNEL, BUMPER MOUNTING - RIGHT
-
30506-653 CHANNEL, BUMPER MOUNTING - LEFTCHANNEL, BUMPER MOUNTING - LEFT
-
48409-020 SCREW, CAPSCREW, CAP
-
51506-686 BRACKET, MOUNTING - BUMPER - RIGHTBRACKET, MOUNTING - BUMPER - RIGHT
-
51506-687 BRACKET, MOUNTING - BUMPER - LEFTBRACKET, MOUNTING - BUMPER - LEFT
-
68408-816 SCREW, CAPSCREW, CAP
-
71506-684 BUMPER, FRONTBUMPER, FRONT
-
81406-868 FASCIA, BUMPER - FRONT - BLACKFASCIA, BUMPER - FRONT - BLACK
-
90423-101 SCREW, SHOULDERSCREW, SHOULDER
-
108424-002 NUTNUT
-
112516-594 BRACKET, SUPPORT - RIGHTBRACKET, SUPPORT - RIGHT
-
112516-595 BRACKET, SUPPORT - LEFTBRACKET, SUPPORT - LEFT
-
120623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
131436-032 BUMPER, PUSH - FRONT (INC. 14-17)BUMPER, PUSH - FRONT (INC. 14-17)
-
140411-501 ...DECAL, BUMPER - "ARCTIC CAT"...DECAL, BUMPER - "ARCTIC CAT"
-
158410-835 ...SCREW, CAP...SCREW, CAP
-
162506-641 ...BRACKET, SUPPORT...BRACKET, SUPPORT
-
178424-805 ...NUT...NUT
-
188409-025 SCREW, CAPSCREW, CAP
-
192516-852 BRACE, A-ARMBRACE, A-ARM
-
200423-744 NUT, LOCKNUT, LOCK
-
211406-030 PANEL, BELLYPANEL, BELLY
-
220406-289 PAD, FRAMEPAD, FRAME
-
238424-802 NUTNUT
-
248409-016 SCREW, CAPSCREW, CAP
-
251506-659 FOOTREST - RIGHTFOOTREST - RIGHT
-
251506-660 FOOTREST - LEFTFOOTREST - LEFT
-
262506-426 ROD, SUPPORTROD, SUPPORT
-
271506-802 BUMPER, PUSH - REAR (INC. 28)BUMPER, PUSH - REAR (INC. 28)
-
282406-045 ...PLUG, HOLE...PLUG, HOLE
-
291411-077 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
