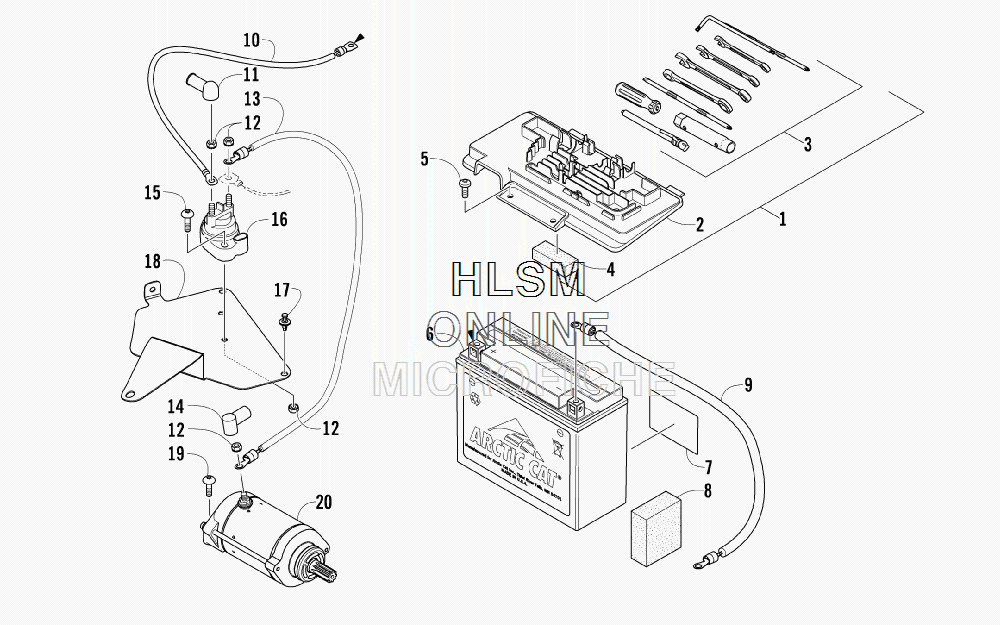

BATTERY AND STARTER ASSEMBLY для Arctic Cat MUDPRO 1000 H2 - Ver 1 Engine Number 0950T40010059 and Bellow WHITE [A2010IFW4EUSW] - 2010 года выпуска
-
№АртикулНазвание
-
15991-655 BATTERY COVER/TOOL TRAY ASSEMBLY (INC. 2-4)BATTERY COVER/TOOL TRAY ASSEMBLY (INC. 2-4)
-
22406-815 ...COVER, BATTERY...COVER, BATTERY
-
30444-122 ...KIT, TOOL...KIT, TOOL
-
40417-016 ...PAD, BATTERY...PAD, BATTERY
-
58476-620 SCREW, MACHINESCREW, MACHINE
-
60645-480 BATTERY ASSEMBLY (INC. 7)BATTERY ASSEMBLY (INC. 7)
-
70645-430 ...DECAL, WARNING...DECAL, WARNING
-
80417-017 FOAM, BATTERYFOAM, BATTERY
-
90445-071 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
100445-062 CABLE, BATTERY/SOLENIODCABLE, BATTERY/SOLENIOD
-
110645-327 BOOT, TERMINALBOOT, TERMINAL
-
120623-038 NUT W/WASHERNUT W/WASHER
-
130445-066 CABLE, SOLENOID/STARTER (INC. 14)CABLE, SOLENOID/STARTER (INC. 14)
-
140645-019 ...BOOT, TERMINAL...BOOT, TERMINAL
-
158476-630 SCREW, MACHINESCREW, MACHINE
-
160445-058 SOLENOIDSOLENOID
-
170623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
182416-096 PLATE, MOUNTING - SOLENOIDPLATE, MOUNTING - SOLENOID
-
198476-625 SCREW, MACHINESCREW, MACHINE
-
200825-015 MOTOR, STARTER - ASSEMBLYMOTOR, STARTER - ASSEMBLY
