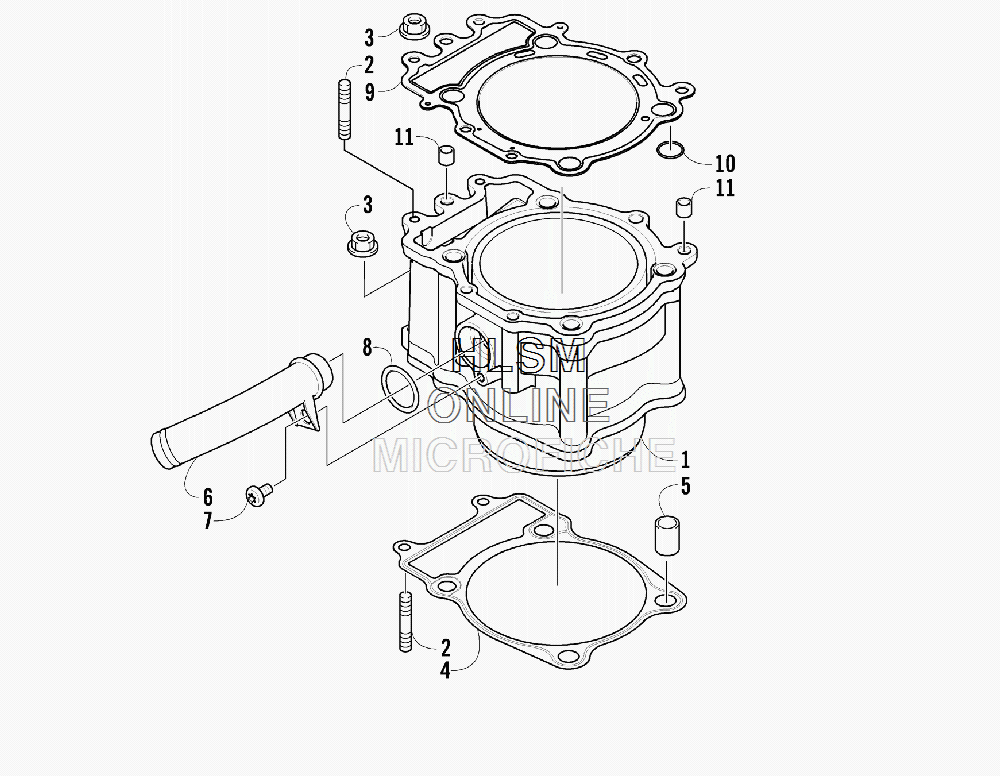

CYLINDER ASSEMBLY для Arctic Cat TBX 700 H1 EFI (BLACK) [A2010BBT4EUSP] - 2010 года выпуска
-
№АртикулНазвание
-
10804-024 CYLINDERCYLINDER
-
20827-002 STUD, M6 X 1 X 38STUD, M6 X 1 X 38
-
38424-604 NUT, HEX-FLG M6X1.0 CL8 RIE SILNUT, HEX-FLG M6X1.0 CL8 RIE SIL
-
40830-111 GASKET, BASEGASKET, BASE
-
50829-002 DOWEL, SPLIT, 13 X 18DOWEL, SPLIT, 13 X 18
-
60804-047 UNION, COOLANT HOSEUNION, COOLANT HOSE
-
78468-612 SCREW, MACH-TSPNH M6X1.0X12 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X12 CL8.8 BLK
-
80830-007 O-RING, 21.9 ID X 2.7 WO-RING, 21.9 ID X 2.7 W
-
90830-112 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
100830-113 O-RING, CYL.HEAD-10.8X1.78O-RING, CYL.HEAD-10.8X1.78
-
110829-001 PIN, DOWELPIN, DOWEL
