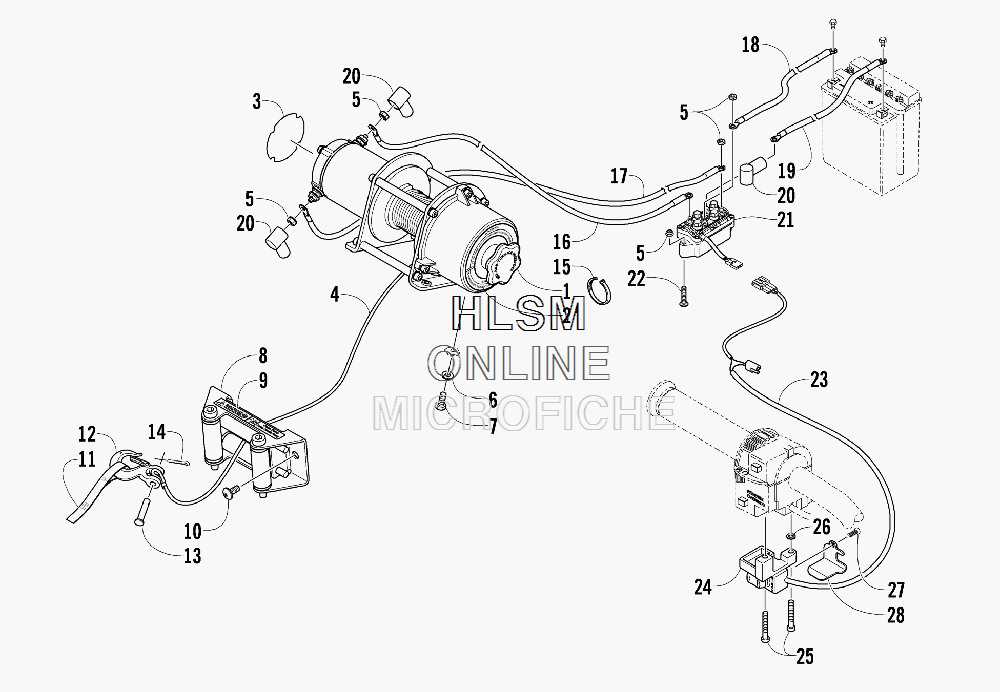

WINCH ASSEMBLY для Arctic Cat TBX 700 H1 EFI (BLACK) (INTERNATIONAL) [A2010BBT4EOSP] - 2010 года выпуска
-
№АртикулНазвание
-
11441-830 WINCH (INC. 2-4 AND TWO NO. 5)WINCH (INC. 2-4 AND TWO NO. 5)
-
22411-141 ...DECAL, WARNING - TENSION...DECAL, WARNING - TENSION
-
32411-140 ...DECAL, WARNING - OPERATION...DECAL, WARNING - OPERATION
-
41441-831 ...CABLE, WINCH...CABLE, WINCH
-
50623-038 ...NUT W/WASHER...NUT W/WASHER
-
68051-246 WASHER, LOCKWASHER, LOCK
-
78408-820 SCREW, CAP-HFH M8X1.25X20 CL8.8 Z & YSCREW, CAP-HFH M8X1.25X20 CL8.8 Z & Y
-
80441-403 ROLLER, WINCH (INC. 9)ROLLER, WINCH (INC. 9)
-
90411-474 ...DECAL, WARNING - PINCH POINT...DECAL, WARNING - PINCH POINT
-
108468-820 SCREW, MACH-TSPNH M8X1.25X20 CL8.8 BLKSCREW, MACH-TSPNH M8X1.25X20 CL8.8 BLK
-
111441-781 STRAPSTRAP
-
121441-833 HOOK, WINCHHOOK, WINCH
-
131441-834 PINPIN
-
140623-175 PIN, COTTERPIN, COTTER
-
150123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
160445-068 CABLE, WINCH/SOLENOID - YELLOWCABLE, WINCH/SOLENOID - YELLOW
-
170445-069 CABLE, WINCH/SOLENOID - BLUECABLE, WINCH/SOLENOID - BLUE
-
180445-086 CABLE, SOLENOID/BATTERY - BLACKCABLE, SOLENOID/BATTERY - BLACK
-
190445-085 CABLE, SOLENOID/BATTERY - REDCABLE, SOLENOID/BATTERY - RED
-
200645-019 BOOT, TERMINALBOOT, TERMINAL
-
210409-066 SOLENOIDSOLENOID
-
228476-625 SCREW, MACH-TSTRH M6X1.0X25 Z & YSCREW, MACH-TSTRH M6X1.0X25 Z & Y
-
230409-087 SWITCH, CONTROLSWITCH, CONTROL
-
240409-034 RETAINER, CONTROL SWITCHRETAINER, CONTROL SWITCH
-
258464-560 SCREW, MACH-PHTRH M5-.8X60 Z & BLKSCREW, MACH-PHTRH M5-.8X60 Z & BLK
-
260423-593 WASHERWASHER
-
270423-382 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
280409-106 COVER, SWITCHCOVER, SWITCH
