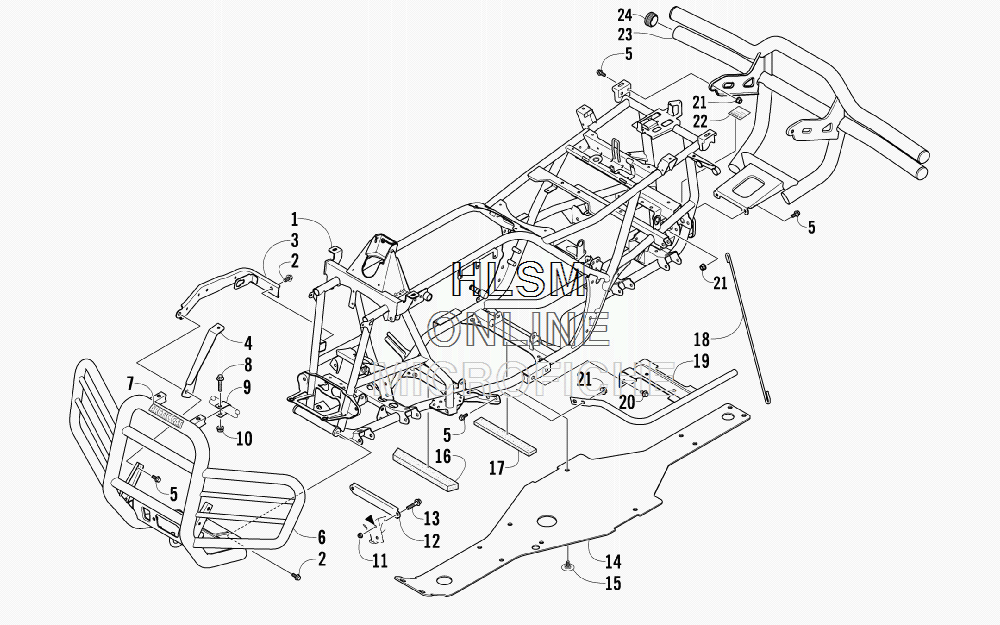

FRAME AND RELATED PARTS для Arctic Cat THUNDERCAT 1000 H2 LE (METALLIC CAT GREEN) [A2010IEW4EUSM] - 2010 года выпуска
-
№АртикулНазвание
-
12506-094 FRAME, MAINFRAME, MAIN
-
28409-020 SCREW, CAP-HFH M10X1.25X20 CL10.9 Z & YSCREW, CAP-HFH M10X1.25X20 CL10.9 Z & Y
-
32506-813 CHANNEL, MOUNTING - BUMPER - RIGHTCHANNEL, MOUNTING - BUMPER - RIGHT
-
32506-285 CHANNEL, MOUNTING - BUMPER - LEFTCHANNEL, MOUNTING - BUMPER - LEFT
-
41506-562 BRACKET, MOUNTING - BUMPER - RIGHTBRACKET, MOUNTING - BUMPER - RIGHT
-
41506-563 BRACKET, MOUNTING - BUMPER - LEFTBRACKET, MOUNTING - BUMPER - LEFT
-
58408-816 SCREW, CAPSCREW, CAP
-
62506-639 BUMPER, FRONTBUMPER, FRONT
-
70411-501 DECAL, BUMPER - "ARCTIC CAT"DECAL, BUMPER - "ARCTIC CAT"
-
88410-835 SCREW, CAPSCREW, CAP
-
92506-641 STRAP, SUPPORT - BUMPERSTRAP, SUPPORT - BUMPER
-
108424-805 NUT, HEX FLG-M8X1.25 CL8 RIE BLKNUT, HEX FLG-M8X1.25 CL8 RIE BLK
-
110423-744 NUT, HEX FLANGE-NSL M10X1.25 W/ 204 PATCHNUT, HEX FLANGE-NSL M10X1.25 W/ 204 PATCH
-
121506-429 BRACE, A-ARMBRACE, A-ARM
-
138409-025 SCREW, CAPSCREW, CAP
-
142406-648 PANEL, BELLYPANEL, BELLY
-
150423-101 SCREW, SHOULDERSCREW, SHOULDER
-
162506-701 PAD, FOAMPAD, FOAM
-
170406-289 PAD, FOAMPAD, FOAM
-
182506-423 ROD, SUPPORTROD, SUPPORT
-
192506-449 FOOTREST - RIGHTFOOTREST - RIGHT
-
191506-379 FOOTREST - LEFTFOOTREST - LEFT
-
208409-016 SCREW, CAPSCREW, CAP
-
218424-802 NUTNUT
-
221411-077 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
-
230541-607 BUMPER, REAR (INC. 24)BUMPER, REAR (INC. 24)
-
240406-130 ...PLUG, HOLE...PLUG, HOLE
