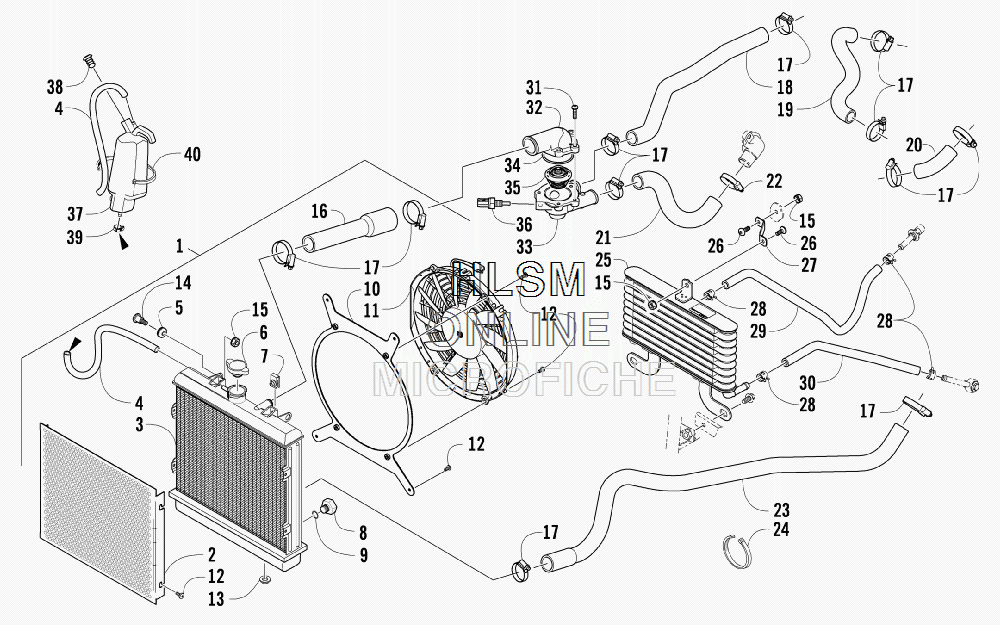

COOLING ASSEMBLY для Arctic Cat TRV 1000 H2 EFI CRUISER GREEN [A2010TCW4EUSA] - 2010 года выпуска
-
№АртикулНазвание
-
10413-258 RADIATOR ASSEMBLY (INC. 2-12)RADIATOR ASSEMBLY (INC. 2-12)
-
20413-214 ...SCREEN, RADIATOR...SCREEN, RADIATOR
-
30413-216 ...RADIATOR...RADIATOR
-
40610-011 ...HOSE - 25 FT...HOSE - 25 FT
-
50423-030 ...GROMMET...GROMMET
-
60413-255 ...CAP, RADIATOR...CAP, RADIATOR
-
71623-637 ...CLIP, U-NUT...CLIP, U-NUT
-
80413-195 ...PLUG, DRAIN...PLUG, DRAIN
-
91602-213 ...O-RING...O-RING
-
100413-217 ...BRACKET, MOUNTING - FAN...BRACKET, MOUNTING - FAN
-
110413-123 ...FAN, COOLING...FAN, COOLING
-
128470-510 ...SCREW, MACHINE...SCREW, MACHINE
-
130423-028 BUSHING, STEMBUSHING, STEM
-
140423-484 SCREW, SHOULDERSCREW, SHOULDER
-
150623-038 NUT W/WASHERNUT W/WASHER
-
160410-120 HOSE, COOLANT - RADIATOR/THERMOSTAT - UPPERHOSE, COOLANT - RADIATOR/THERMOSTAT - UPPER
-
170423-496 CLAMP, HOSECLAMP, HOSE
-
180410-195 HOSE,COOLANT-#2 HOTHOSE,COOLANT-#2 HOT
-
190410-116 HOSE,COOLANT-#2 COLDHOSE,COOLANT-#2 COLD
-
200410-115 HOSE,COOLANT-#1 COLDHOSE,COOLANT-#1 COLD
-
210410-117 HOSE,COOLANT-#1 HOTHOSE,COOLANT-#1 HOT
-
221623-093 CLAMP, HOSECLAMP, HOSE
-
230410-119 HOSE, COOLANT - SUCTION PUMP - LOWERHOSE, COOLANT - SUCTION PUMP - LOWER
-
240623-751 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
250413-211 COOLER, OILCOOLER, OIL
-
268476-612 SCREW, MACHINESCREW, MACHINE
-
270513-022 BRACKET, MOUNTING - OIL COOLER - UPPERBRACKET, MOUNTING - OIL COOLER - UPPER
-
280423-632 CLAMP, HOSECLAMP, HOSE
-
290410-149 HOSE, OIL COOLER - INHOSE, OIL COOLER - IN
-
300410-168 HOSE, OIL COOLER - OUTHOSE, OIL COOLER - OUT
-
318470-520 SCREW, MACHINESCREW, MACHINE
-
320808-092 COVER, THERMOSTATCOVER, THERMOSTAT
-
330808-189 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
340830-173 O-RINGO-RING
-
350808-093 THERMOSTAT, 71 DEG (FINAL)THERMOSTAT, 71 DEG (FINAL)
-
360808-124 SENSOR, ENGINE COOLANT TEMPERATURESENSOR, ENGINE COOLANT TEMPERATURE
-
370413-086 BOTTLE, OVERFLOWBOTTLE, OVERFLOW
-
380413-087 PLUGPLUG
-
390124-045 CLAMP, HOSECLAMP, HOSE
-
400623-316 TIE, CABLE - 14 IN.TIE, CABLE - 14 IN.
