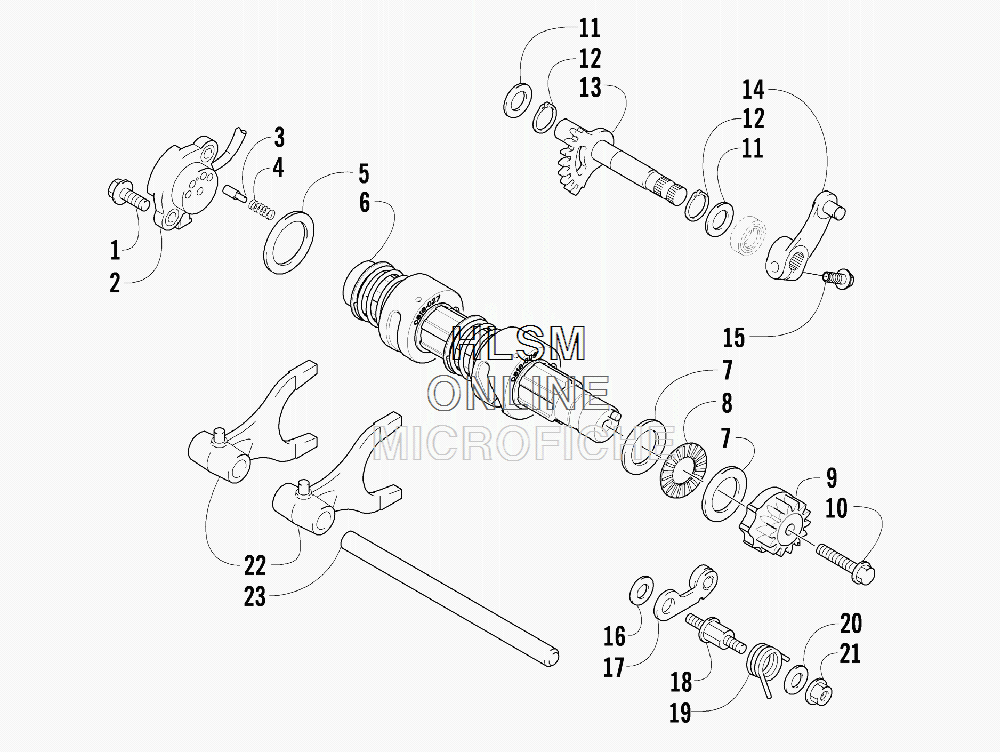

GEAR SHIFTING ASSEMBLY для Arctic Cat TRV 1000 H2 EFI (Metallic Black) [A2010TBW4EUSO] - 2010 года выпуска
-
№АртикулНазвание
-
18470-520 SCREW, MACH-TSPNH M5X0.8X20 CL8.8 Z & YSCREW, MACH-TSPNH M5X0.8X20 CL8.8 Z & Y
-
20409-091 SWITCH, GEAR POSITIONSWITCH, GEAR POSITION
-
30818-013 CONTACTCONTACT
-
40818-017 SPRINGSPRING
-
50828-040 WASHER, STEEL, 25 X 34 X .72WASHER, STEEL, 25 X 34 X .72
-
60818-046 SHAFT, GEAR SHIFT - ASSEMBLYSHAFT, GEAR SHIFT - ASSEMBLY
-
70828-095 WASHER, THRUSTWASHER, THRUST
-
80832-052 BEARING, THRUSTBEARING, THRUST
-
90818-055 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
100826-006 SCREW, CAP HFH M6 X 1 X 25SCREW, CAP HFH M6 X 1 X 25
-
110828-036 WASHER, STEEL, 12 X 20 X .9WASHER, STEEL, 12 X 20 X .9
-
120831-010 RING, RETAININGRING, RETAINING
-
130818-007 SHAFT, SUB-GEAR SHIFTSHAFT, SUB-GEAR SHIFT
-
140818-014 ARM, SHIFTARM, SHIFT
-
158468-620 SCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLK
-
160828-038 WASHER, STEEL, 6 X 14 X .9WASHER, STEEL, 6 X 14 X .9
-
170818-002 STOPPER, CAMSTOPPER, CAM
-
180818-004 SUPPORT, CAM STOPPERSUPPORT, CAM STOPPER
-
190818-090 SPRINGSPRING
-
200828-035 WASHER, STEEL 6 X 16 X 2.5WASHER, STEEL 6 X 16 X 2.5
-
218424-602 NUTNUT
-
220818-072 FORK, SHIFTFORK, SHIFT
-
230818-006 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
