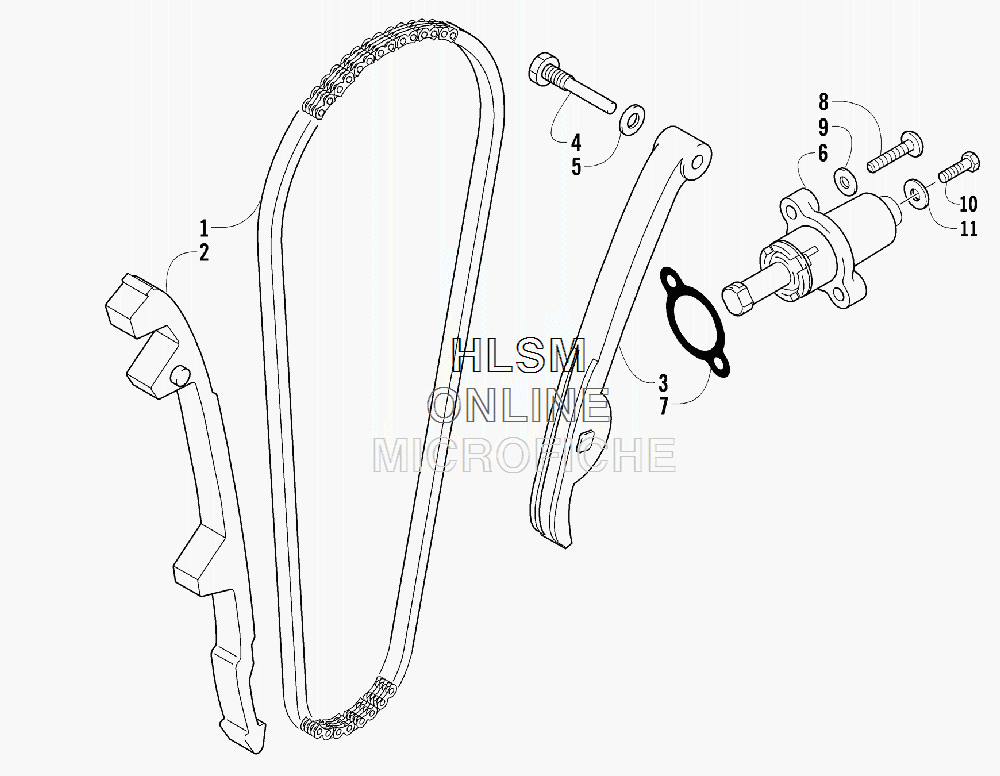

CAM CHAIN ASSEMBLY для Arctic Cat TRV 500 HI EFI INTERNATIONAL GREEN [A2010TBO4EOSG] - 2010 года выпуска
-
№АртикулНазвание
-
10810-001 CHAIN, CAMCHAIN, CAM
-
20810-002 GUIDE, CHAINGUIDE, CHAIN
-
30810-003 TENSIONER, CHAINTENSIONER, CHAIN
-
40826-036 PIVOT, TENSIONERPIVOT, TENSIONER
-
50830-025 WASHER, CRUSHWASHER, CRUSH
-
60810-004 ADJUSTER, TENSIONER - ASSEMBLYADJUSTER, TENSIONER - ASSEMBLY
-
70830-018 GASKETGASKET
-
88468-625 SCREW, MACHINESCREW, MACHINE
-
90830-107 GASKETGASKET
-
108400-610 SCREW, CAPSCREW, CAP
-
110828-129 WASHERWASHER
