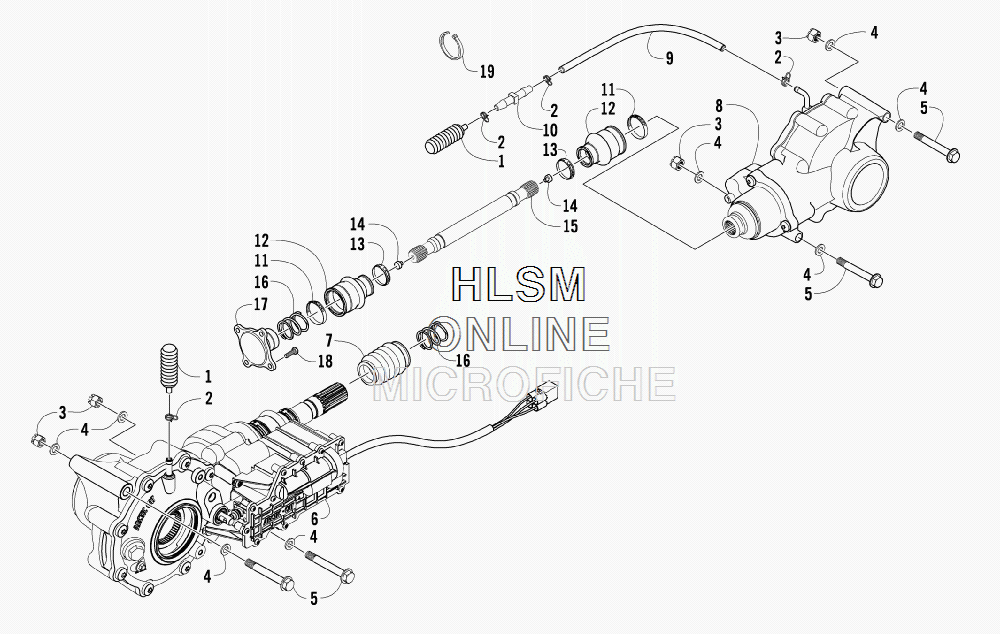

DRIVE TRAIN ASSEMBLY для Arctic Cat TRV 550 S EFI BLUE [A2010TBO1PUSD] - 2010 года выпуска
-
№АртикулНазвание
-
11402-620 BLADDER, GEARCASEBLADDER, GEARCASE
-
20423-315 CLAMP, HOSECLAMP, HOSE
-
38428-002 NUT, LOCKNUT, LOCK
-
40423-426 WASHERWASHER
-
50423-404 SCREW, CAPSCREW, CAP
-
61502-394 GEARCASE, FRONTGEARCASE, FRONT
-
70402-966 BOOT, SHAFTBOOT, SHAFT
-
81502-402 GEARCASE, REARGEARCASE, REAR
-
90410-070 HOSE, VENT - 25 FTHOSE, VENT - 25 FT
-
100470-702 FITTING, VENTFITTING, VENT
-
110423-393 CLAMPCLAMP
-
120402-985 BOOTBOOT
-
130423-411 CLAMPCLAMP
-
140673-618 BUMPER, PROPELLER SHAFTBUMPER, PROPELLER SHAFT
-
151402-092 SHAFT, PROPELLERSHAFT, PROPELLER
-
161402-026 SPRINGSPRING
-
170402-950 FLANGE, OUTPUTFLANGE, OUTPUT
-
188408-820 SCREW, CAPSCREW, CAP
-
190123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
