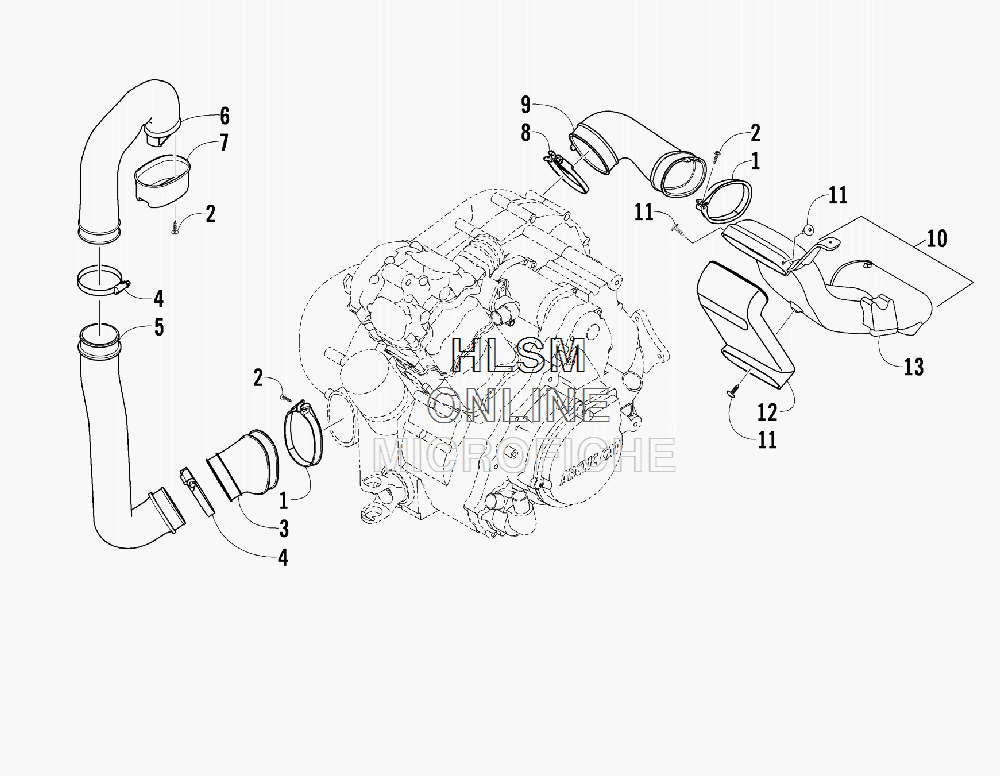

CASE/BELT COOLING ASSEMBLY для Arctic Cat TRV 700 H1 EFI METALLIC BLACK [A2010TBT4EUSO] - 2010 года выпуска
-
№АртикулНазвание
-
10423-550 CLAMP, PLASTICCLAMP, PLASTIC
-
20423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
30413-252 BOOT, DUCT - AIR INTAKE - FRONTBOOT, DUCT - AIR INTAKE - FRONT
-
40423-019 CLAMP, HOSECLAMP, HOSE
-
50413-250 DUCT, AIR INTAKE - FRONT - LOWERDUCT, AIR INTAKE - FRONT - LOWER
-
60470-750 DUCT, AIR INTAKE - FRONT - UPPERDUCT, AIR INTAKE - FRONT - UPPER
-
70470-729 CUP, AIR INTAKECUP, AIR INTAKE
-
80423-730 CLAMP, BOOTCLAMP, BOOT
-
90413-206 BOOT, DUCT - AIR OUT - REARBOOT, DUCT - AIR OUT - REAR
-
100470-824 DUCT, AIR OUT - REAR (INC. THREE NO. 11 AND 12-13)DUCT, AIR OUT - REAR (INC. THREE NO. 11 AND 12-13)
-
110623-784 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
120470-778 ...DUCT...DUCT
-
130470-825 ...DUCT...DUCT
