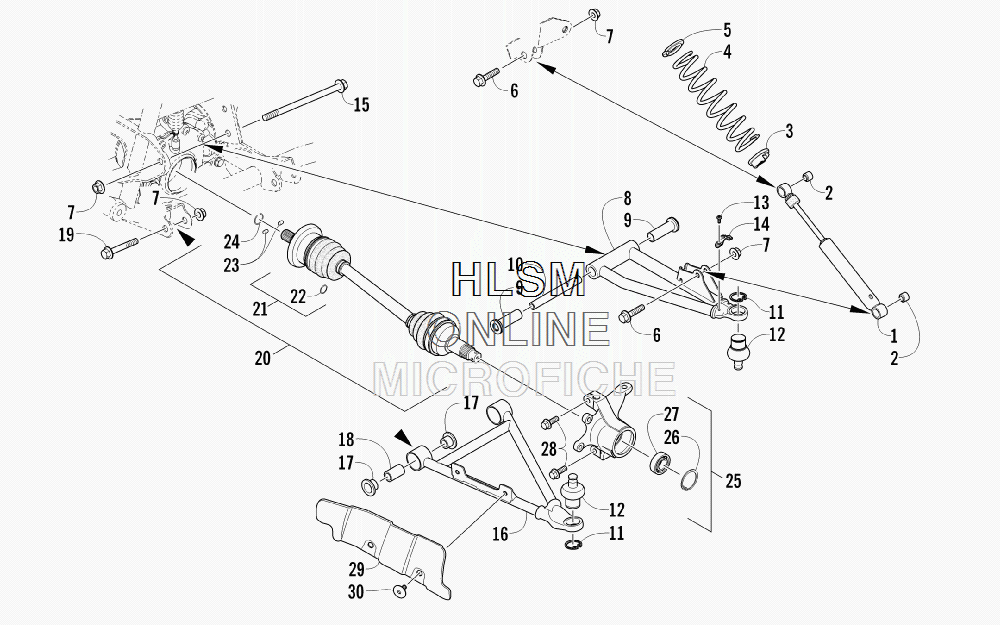

FRONT SUSPENSION ASSEMBLY для Arctic Cat 1000 MUD PRO GREEN-BLACK [A2011IFW4EUSM] - 2011 года выпуска
-
№АртикулНазвание
-
10403-180 SHOCK ABSORBER (INC. 2)SHOCK ABSORBER (INC. 2)
-
20403-182 ...BUSHING...BUSHING
-
30403-102 CAM, SPRING ADJUSTERCAM, SPRING ADJUSTER
-
40403-219 SPRING, SUSPENSION - WHITESPRING, SUSPENSION - WHITE
-
51603-889 RETAINER, SPRINGRETAINER, SPRING
-
68409-040 SCREW, CAPSCREW, CAP
-
70423-744 NUT, LOCKNUT, LOCK
-
80503-416 A-ARM, UPPER RIGHT - BLACK (INC. 9-12)A-ARM, UPPER RIGHT - BLACK (INC. 9-12)
-
80503-417 A-ARM, UPPER LEFT - BLACK (INC. 9-12)A-ARM, UPPER LEFT - BLACK (INC. 9-12)
-
90403-207 ...BUSHING...BUSHING
-
100403-080 ...AXLE...AXLE
-
110423-009 ...RING, RETAINING...RING, RETAINING
-
120405-115 ...BALL JOINT...BALL JOINT
-
130423-946 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
141502-594 CLAMP, ROUTINGCLAMP, ROUTING
-
150423-334 SCREW, CAPSCREW, CAP
-
160503-376 A-ARM, LOWER RIGHT - BLACK (INC. 17-18 AND TWO NO. 11-12)A-ARM, LOWER RIGHT - BLACK (INC. 17-18 AND TWO NO. 11-12)
-
160503-377 A-ARM, LOWER LEFT - BLACK (INC. 17-18 AND TWO NO. 11-12)A-ARM, LOWER LEFT - BLACK (INC. 17-18 AND TWO NO. 11-12)
-
170403-208 ...BUSHING...BUSHING
-
180403-214 ...AXLE...AXLE
-
198409-075 SCREW, CAPSCREW, CAP
-
201502-806 AXLE, DRIVE - RIGHT (INC. 21-24)AXLE, DRIVE - RIGHT (INC. 21-24)
-
201502-805 AXLE, DRIVE - LOCKING - LEFT (INC. 21-24)AXLE, DRIVE - LOCKING - LEFT (INC. 21-24)
-
211436-410 ...REPAIR KIT, BOOT (INC. 22)...REPAIR KIT, BOOT (INC. 22)
-
221441-988 ......CLIP, RETAINING......CLIP, RETAINING
-
231402-885 ...PIN, DETENT...PIN, DETENT
-
241402-889 ...CLIP, RETAINING...CLIP, RETAINING
-
250505-578 KNUCKLE - ASSEMBLY - RIGHT (INC. 26-27)KNUCKLE - ASSEMBLY - RIGHT (INC. 26-27)
-
250505-579 KNUCKLE - ASSEMBLY - LEFT (INC. 26-27)KNUCKLE - ASSEMBLY - LEFT (INC. 26-27)
-
260423-423 ...RING, RETAINING...RING, RETAINING
-
271402-809 ...BEARING...BEARING
-
288409-030 SCREW, CAPSCREW, CAP
-
291406-034 GUARD, BOOT - RIGHT - BLACKGUARD, BOOT - RIGHT - BLACK
-
291406-035 GUARD, BOOT - LEFT - BLACKGUARD, BOOT - LEFT - BLACK
-
300423-545 SCREW, SHOULDERSCREW, SHOULDER
