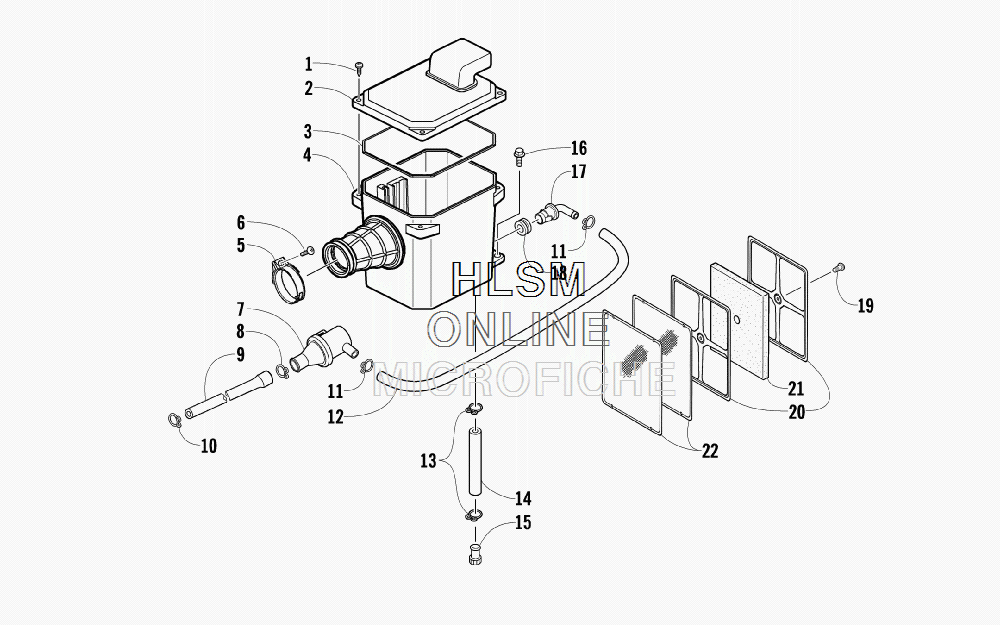

AIR INTAKE ASSEMBLY для Arctic Cat 105 UTILITY CAT GREEN [A2011KYC2BUSZ] - 2011 года выпуска
-
№АртикулНазвание
-
13305-183 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
23305-758 COVER, AIR SILENCERCOVER, AIR SILENCER
-
33305-173 SEALSEAL
-
43305-177 SILENCER, AIRSILENCER, AIR
-
53303-709 CLAMP, HOSE (INC. 6)CLAMP, HOSE (INC. 6)
-
63304-117 ...SCREW, MACHINE...SCREW, MACHINE
-
73303-064 CATCH, OILCATCH, OIL
-
83303-052 CLAMP, HOSECLAMP, HOSE
-
93305-170 HOSEHOSE
-
103303-352 CLAMP, HOSECLAMP, HOSE
-
113303-350 CLAMP, HOSECLAMP, HOSE
-
123305-171 HOSEHOSE
-
133303-609 CLAMP, HOSECLAMP, HOSE
-
143305-185 HOSE, DRAINHOSE, DRAIN
-
153305-182 PLUG, DRAINPLUG, DRAIN
-
163304-003 SCREW, CAPSCREW, CAP
-
173305-179 FITTING, ELBOWFITTING, ELBOW
-
183305-180 GROMMETGROMMET
-
193305-184 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
203305-175 PLATEPLATE
-
213305-172 FILTER, AIRFILTER, AIR
-
223305-174 SCREENSCREEN
