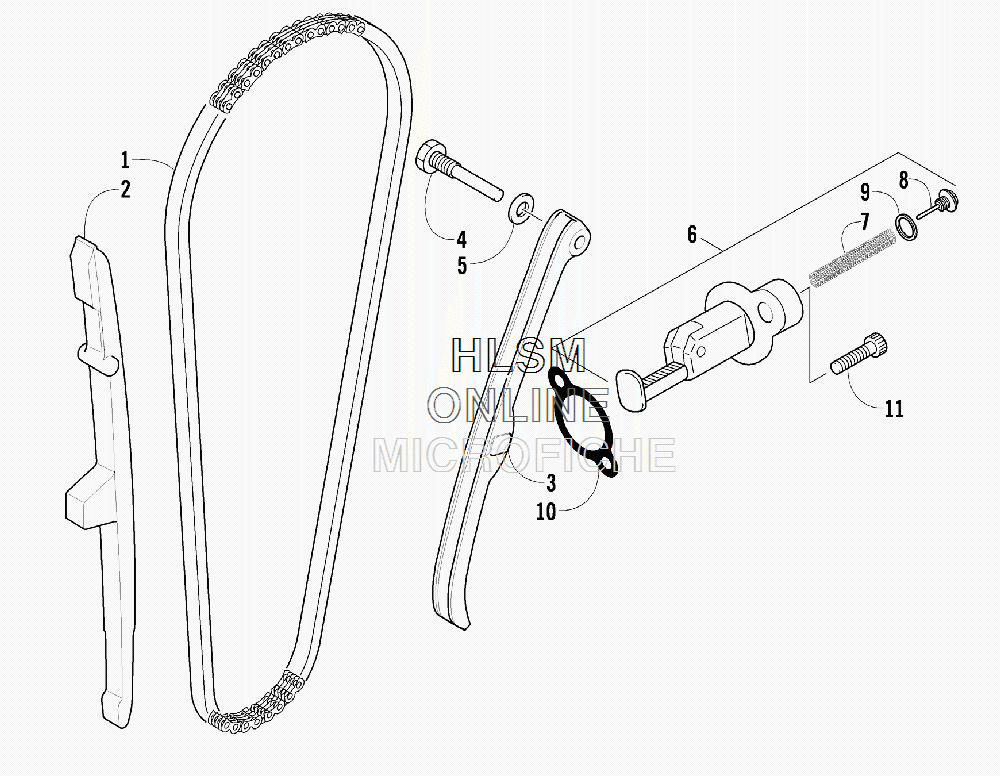

CAM CHAIN ASSEMBLY для Arctic Cat 400 TRV RED [A2011TBG4BUSR] - 2011 года выпуска
-
№АртикулНазвание
-
10810-005 CHAIN, CAMCHAIN, CAM
-
20810-006 GUIDE, CHAINGUIDE, CHAIN
-
30810-007 TENSIONER, CHAINTENSIONER, CHAIN
-
40826-133 PIVOT, TENSIONERPIVOT, TENSIONER
-
50830-150 WASHERWASHER
-
60810-054 ADJUSTER, TENSIONER - ASSEMBLY (INC. 7-9)ADJUSTER, TENSIONER - ASSEMBLY (INC. 7-9)
-
70810-056 ...SPRING...SPRING
-
80810-061 ...PLUG...PLUG
-
90810-062 ...WASHER...WASHER
-
100830-060 GASKETGASKET
-
113303-360 SCREW, CAPSCREW, CAP
