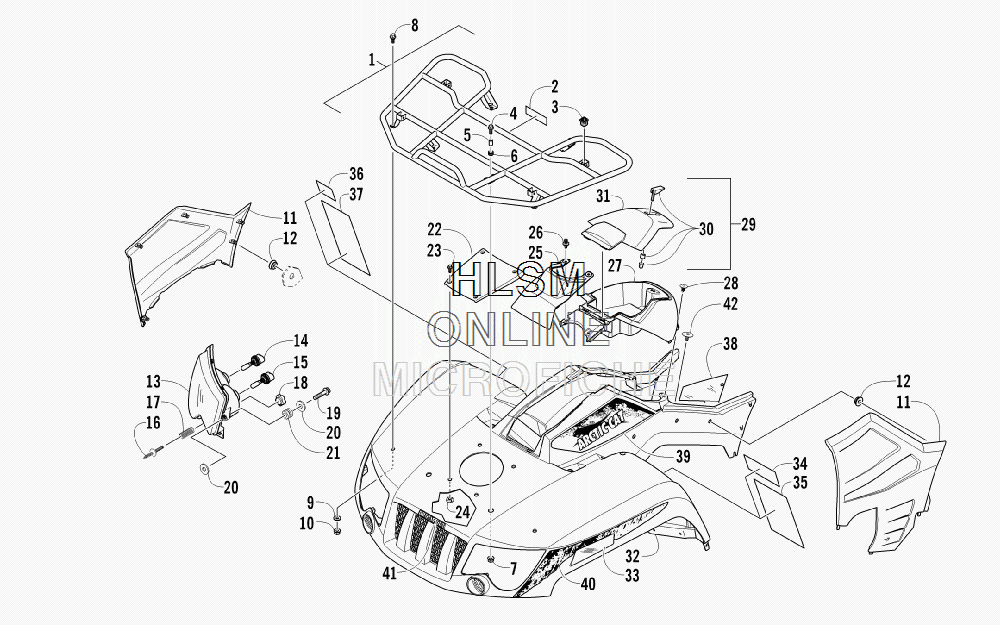

FRONT RACK- BODY PANEL- AND HEADLIGHT ASSEMBLIES для Arctic Cat 450 GREEN [A2011ICK4CUSG] - 2011 года выпуска
-
№АртикулНазвание
-
12506-107 RACK, FRONT - ASSEMBLY (INC. 2-3)RACK, FRONT - ASSEMBLY (INC. 2-3)
-
20411-576 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
30441-592 ...BUSHING...BUSHING
-
48410-830 SCREW, CAPSCREW, CAP
-
50423-669 SPACERSPACER
-
60423-465 GROMMETGROMMET
-
78432-802 NUT, LOCKNUT, LOCK
-
80423-654 SCREW, SHOULDERSCREW, SHOULDER
-
98050-222 WASHERWASHER
-
100423-540 NUT, LOCKNUT, LOCK
-
112406-302 PANEL, SIDE - LOWER - RIGHTPANEL, SIDE - LOWER - RIGHT
-
112416-133 PANEL, SIDE - LOWER - LEFTPANEL, SIDE - LOWER - LEFT
-
120423-678 GROMMETGROMMET
-
130609-852 HEADLIGHT ASSEMBLY - RIGHT (INC. 14-15)HEADLIGHT ASSEMBLY - RIGHT (INC. 14-15)
-
130609-853 HEADLIGHT ASSEMBLY - LEFT (INC. 14-15)HEADLIGHT ASSEMBLY - LEFT (INC. 14-15)
-
140409-073 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
150409-045 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
160423-514 STUD, ADJUSTER - HEADLIGHTSTUD, ADJUSTER - HEADLIGHT
-
170423-522 SPRING, ADJUSTERSPRING, ADJUSTER
-
180423-513 KNOB, ADJUSTERKNOB, ADJUSTER
-
190623-785 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
208050-217 WASHERWASHER
-
210423-447 GROMMETGROMMET
-
222416-170 COVER, ACCESS - GREENCOVER, ACCESS - GREEN
-
238410-616 SCREW, CAPSCREW, CAP
-
240423-997 T-NUTT-NUT
-
251406-972 COVER, STEERING POST - BLACKCOVER, STEERING POST - BLACK
-
260623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
272416-240 BOX, STORAGE - BLACKBOX, STORAGE - BLACK
-
280623-544 CLIP, RETAININGCLIP, RETAINING
-
292506-235 LID, STORAGE BOX W/LATCH (INC. 30-31)LID, STORAGE BOX W/LATCH (INC. 30-31)
-
301406-599 ...LATCH, STORAGE BOX...LATCH, STORAGE BOX
-
311406-862 ...LID, STORAGE BOX...LID, STORAGE BOX
-
324506-393 PANEL, FENDER - ASSEMBLY - FRONT - GREEN (INC. 33-38)PANEL, FENDER - ASSEMBLY - FRONT - GREEN (INC. 33-38)
-
331411-078 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
331411-079 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
341411-574 ...DECAL, WARNING - OFF-ROAD ONLY...DECAL, WARNING - OFF-ROAD ONLY
-
352411-124 ...DECAL, WARNING - GENERAL/AGE...DECAL, WARNING - GENERAL/AGE
-
360411-835 ...DECAL, WARNING - TURN/HILL...DECAL, WARNING - TURN/HILL
-
371411-250 ...DECAL, WARNING - REVERSE/PRE-RIDE...DECAL, WARNING - REVERSE/PRE-RIDE
-
380412-394 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
392411-298 DECAL, SIDE - UPPER RIGHTDECAL, SIDE - UPPER RIGHT
-
392411-299 DECAL, SIDE - UPPER LEFTDECAL, SIDE - UPPER LEFT
-
402411-302 DECAL, SIDE - FRONT RIGHTDECAL, SIDE - FRONT RIGHT
-
402411-303 DECAL, SIDE - FRONT LEFTDECAL, SIDE - FRONT LEFT
-
411411-725 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
420423-101 SCREW, SHOULDERSCREW, SHOULDER
