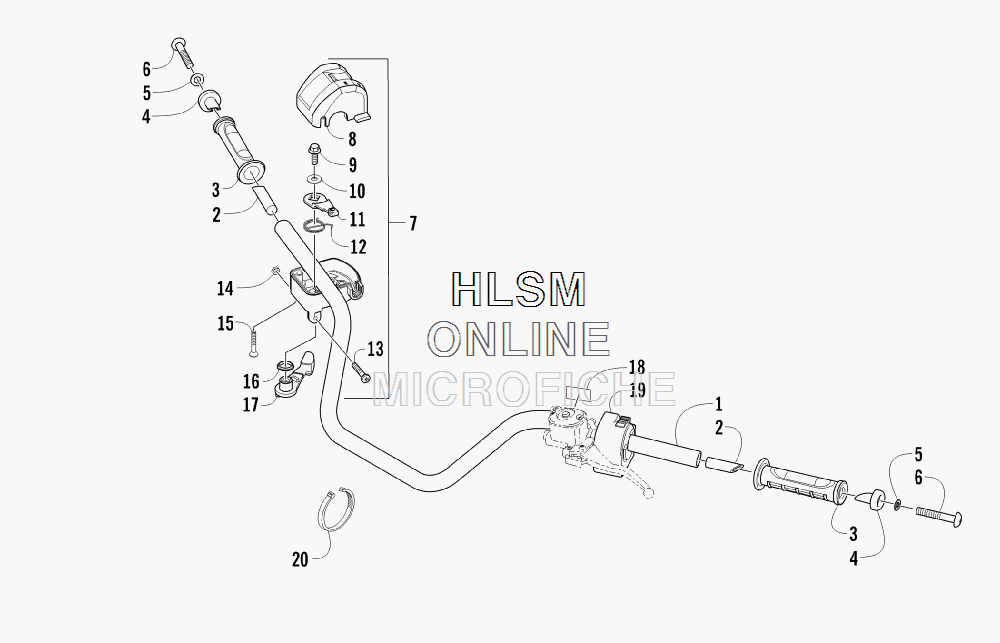

HANDLEBAR ASSEMBLY для Arctic Cat 450 XC BLACK [A2011KCK4CUSP] - 2011 года выпуска
-
№АртикулНазвание
-
13306-537 HANDLEBARHANDLEBAR
-
20405-148 PLUG, HANDLEBARPLUG, HANDLEBAR
-
33306-448 GRIP, HANDLEBARGRIP, HANDLEBAR
-
40405-149 END CAP, HANDLEBAREND CAP, HANDLEBAR
-
58050-247 WASHERWASHER
-
68477-845 SCREW, MACHINESCREW, MACHINE
-
73306-276 CASE, THROTTLE - ASSEMBLY (INC. 8-17)CASE, THROTTLE - ASSEMBLY (INC. 8-17)
-
83306-418 ...COVER, THROTTLE CASE W/SWITCH...COVER, THROTTLE CASE W/SWITCH
-
93305-344 ...SCREW, CAP...SCREW, CAP
-
103313-739 ...WASHER...WASHER
-
113313-838 ...ARM, THROTTLE...ARM, THROTTLE
-
123313-839 ...SPRING...SPRING
-
133313-740 ...SCREW, MACHINE...SCREW, MACHINE
-
143305-832 ...NUT...NUT
-
153313-741 ...SCREW, MACHINE...SCREW, MACHINE
-
163313-841 ...SPACER...SPACER
-
173313-842 ...LEVER...LEVER
-
181411-865 DECAL, BRAKE LEVER LOCKDECAL, BRAKE LEVER LOCK
-
193313-428 SWITCH, CONTROL - ASSEMBLYSWITCH, CONTROL - ASSEMBLY
-
203303-839 TIE, CABLETIE, CABLE
