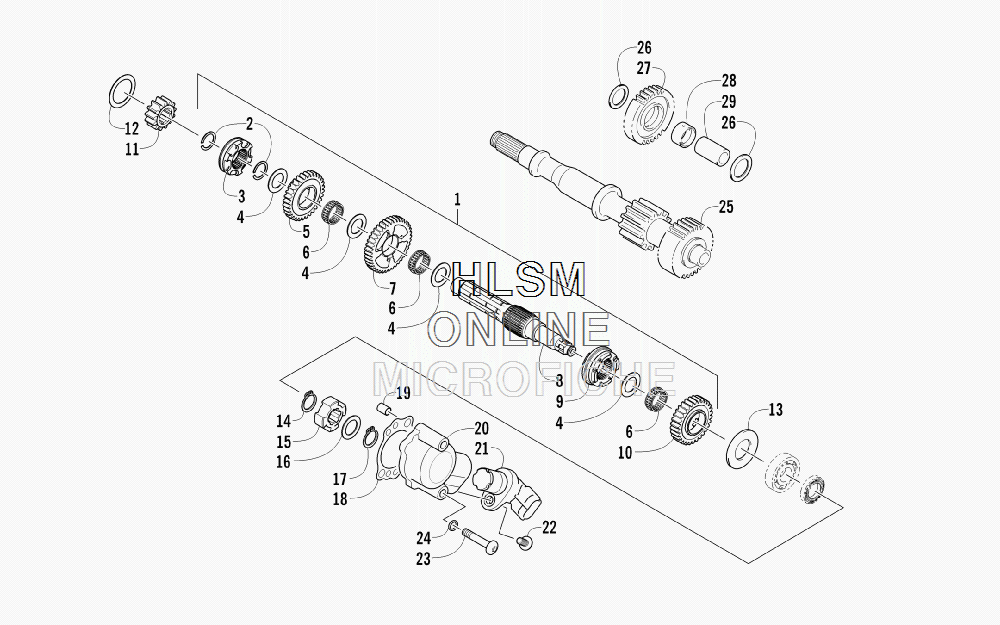

SECONDARY TRANSMISSION ASSEMBLY (ENGINE SERIAL NO. 60093070 AND UP) для Arctic Cat 550 CRUISER PS BLUE INTERNATIONAL [A2011TCO1POSD] - 2011 года выпуска
-
№АртикулНазвание
-
10822-124 COUNTERSHAFT ASSEMBLY (INC. 2-10)COUNTERSHAFT ASSEMBLY (INC. 2-10)
-
20831-085 ...RING, RETAINING...RING, RETAINING
-
30822-120 ...GEAR SELECT, REVERSE...GEAR SELECT, REVERSE
-
40822-121 ...SHIM...SHIM
-
50822-119 ...GEAR, REVERSE DRIVEN...GEAR, REVERSE DRIVEN
-
60832-082 ...BEARING...BEARING
-
70822-114 ...GEAR, DRIVEN - LOW...GEAR, DRIVEN - LOW
-
80822-113 ...COUNTERSHAFT...COUNTERSHAFT
-
90822-116 ...GEAR SELECT, SLIDING...GEAR SELECT, SLIDING
-
100822-115 ...GEAR, DRIVEN - HIGH...GEAR, DRIVEN - HIGH
-
110822-125 GEAR, DRIVEGEAR, DRIVE
-
120828-019 WASHER, THRUSTWASHER, THRUST
-
130828-011 WASHERWASHER
-
140831-040 RING, RETAININGRING, RETAINING
-
150822-050 TRIGGER, SPEEDOMETER SENSORTRIGGER, SPEEDOMETER SENSOR
-
160828-069 WASHER, THRUSTWASHER, THRUST
-
170831-039 RING, RETAININGRING, RETAINING
-
180830-129 GASKETGASKET
-
190829-023 PIN, DOWELPIN, DOWEL
-
200822-049 HOUSING, SPEEDOMETER SENSORHOUSING, SPEEDOMETER SENSOR
-
210824-042 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
228468-620 SCREW, MACHINESCREW, MACHINE
-
238468-645 SCREW, MACHINESCREW, MACHINE
-
240830-107 GASKETGASKET
-
250822-001 DRIVESHAFTDRIVESHAFT
-
260828-016 WASHER, THRUSTWASHER, THRUST
-
270822-011 GEAR, REVERSE IDLEGEAR, REVERSE IDLE
-
280822-012 BUSHINGBUSHING
-
290822-015 SHAFT, REVERSE IDLESHAFT, REVERSE IDLE
