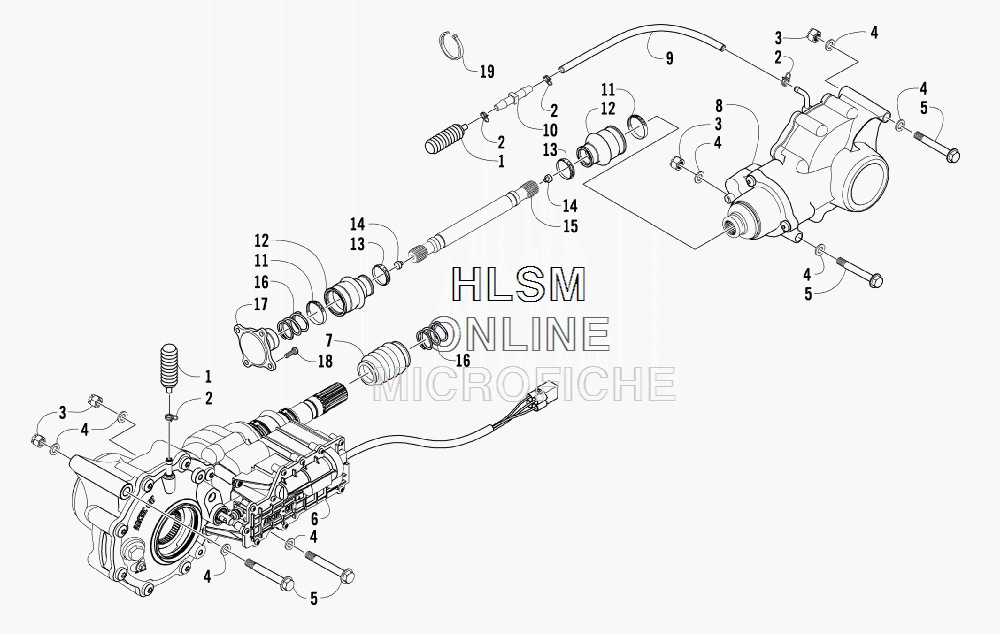

DRIVE TRAIN ASSEMBLY для Arctic Cat 650 GREEN INTERNATIONAL [A2011ICS4BOSG] - 2011 года выпуска
-
№АртикулНазвание
-
11402-620 BLADDER, GEARCASEBLADDER, GEARCASE
-
20423-315 CLAMP, HOSECLAMP, HOSE
-
38428-002 NUT, LOCKNUT, LOCK
-
40423-426 WASHERWASHER
-
50423-404 SCREW, CAPSCREW, CAP
-
61502-394 GEARCASE, FRONTGEARCASE, FRONT
-
70402-966 BOOT, SHAFTBOOT, SHAFT
-
81502-402 GEARCASE, REARGEARCASE, REAR
-
90410-048 HOSE, VENTHOSE, VENT
-
100470-702 FITTING, VENTFITTING, VENT
-
110423-393 CLAMPCLAMP
-
120402-985 BOOTBOOT
-
130423-411 CLAMPCLAMP
-
140673-618 BUMPER, PROPELLER SHAFTBUMPER, PROPELLER SHAFT
-
151402-233 SHAFT, PROPELLERSHAFT, PROPELLER
-
161402-026 SPRINGSPRING
-
170402-950 FLANGE, OUTPUTFLANGE, OUTPUT
-
188408-820 SCREW, CAPSCREW, CAP
-
190123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
Все узлы модели:
- AIR INTAKE ASSEMBLY
- BATTERY AND STARTER ASSEMBLY
- CAM CHAIN ASSEMBLY
- CARBURETOR
- CASE/BELT COOLING ASSEMBLY
- CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY
- COOLING ASSEMBLY
- CRANK BALANCER ASSEMBLY
- CRANKCASE ASSEMBLY
- CRANKSHAFT AND PISTON ASSEMBLY
- CYLINDER ASSEMBLY
- CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY
- • DRIVE TRAIN ASSEMBLY
- ENGINE AND EXHAUST
- FRAME AND RELATED PARTS
- FRONT DRIVE GEARCASE ASSEMBLY
- FRONT RACK- BODY PANEL- AND HEADLIGHT ASSEMBLIES
- FRONT SUSPENSION ASSEMBLY
- GAS TANK ASSEMBLY
- GEAR SHIFTING ASSEMBLY
- HANDLEBAR ASSEMBLY
- HYDRAULIC BRAKE ASSEMBLY
- INSTRUMENT POD ASSEMBLY
- MAGNETO ASSEMBLY
- OIL FILTER/PUMP ASSEMBLY
- REAR DRIVE GEARCASE ASSEMBLY
- REAR RACK- BODY PANEL- AND FOOTWELL ASSEMBLIES
- REAR SUSPENSION ASSEMBLY
- SEAT ASSEMBLY
- SECONDARY DRIVE ASSEMBLY
- SECONDARY TRANSMISSION ASSEMBLY (ENGINE SERIAL NO. 10027870 AND UP)
- SECONDARY TRANSMISSION ASSEMBLY (UP TO ENGINE SERIAL NO. 10027869)
- SHIFT LEVER ASSEMBLY
- STARTER CLUTCH ASSEMBLY
- STEERING ASSEMBLY (UP TO VIN: 250000)
- STEERING ASSEMBLY (VIN: 250001 AND UP)
- TAILLIGHT ASSEMBLY
- TRANSMISSION ASSEMBLY
- WATER PUMP ASSEMBLY
- WHEEL AND TIRE ASSEMBLY
- WIRING HARNESS ASSEMBLY
