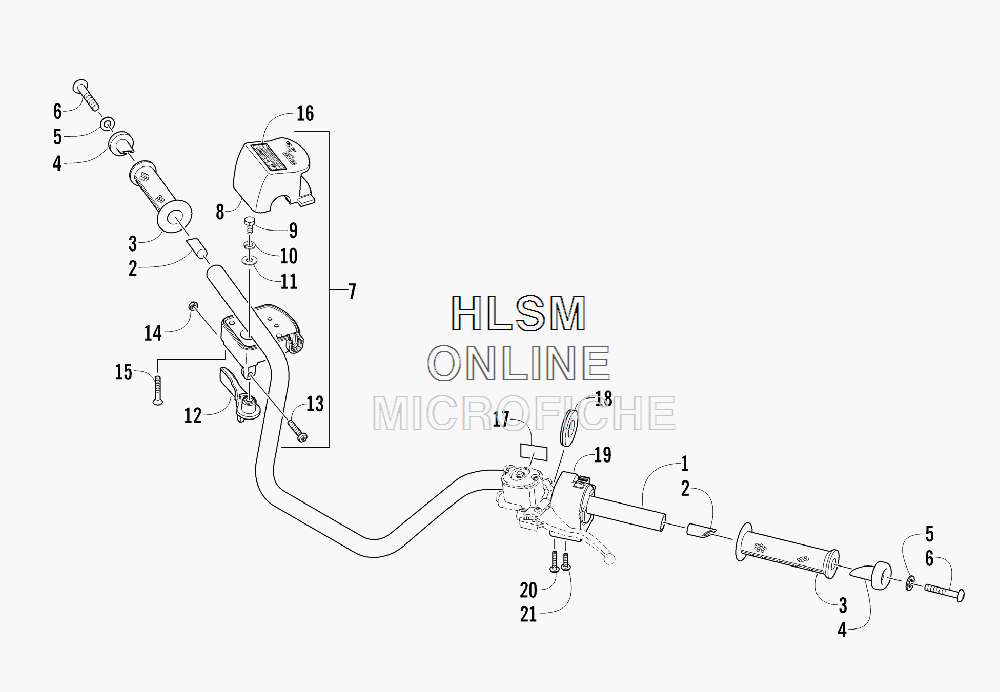

HANDLEBAR ASSEMBLY для Arctic Cat 700 CAT GREEN [A2011IBT4EUSZ] - 2011 года выпуска
-
№АртикулНазвание
-
10505-418 HANDLEBARHANDLEBAR
-
20405-218 PLUG, HANDLEBARPLUG, HANDLEBAR
-
30405-147 GRIP, HANDLEBARGRIP, HANDLEBAR
-
40405-149 END CAP, HANDLEBAREND CAP, HANDLEBAR
-
58050-247 WASHERWASHER
-
68477-845 SCREW, MACHINESCREW, MACHINE
-
70509-054 CASE, THROTTLE - ASSEMBLY (INC. 8-15)CASE, THROTTLE - ASSEMBLY (INC. 8-15)
-
80409-141 ...COVER, THROTTLE CASE W/SWITCH...COVER, THROTTLE CASE W/SWITCH
-
93007-392 ...SCREW, CAP...SCREW, CAP
-
103004-447 ...WASHER, LOCK...WASHER, LOCK
-
113003-030 ...WASHER...WASHER
-
120409-133 ...LEVER, THROTTLE...LEVER, THROTTLE
-
133423-014 ...SCREW, MACHINE...SCREW, MACHINE
-
143423-327 ...NUT...NUT
-
153423-199 ...SCREW, MACHINE...SCREW, MACHINE
-
160411-966 DECAL, WARNING - DIFFERENTIAL LOCKDECAL, WARNING - DIFFERENTIAL LOCK
-
171411-865 DECAL, WARNING - BRAKE LEVER LOCKDECAL, WARNING - BRAKE LEVER LOCK
-
183409-019 COVER, SWITCH HOUSINGCOVER, SWITCH HOUSING
-
190509-014 SWITCH, CONTROL - ASSEMBLY (INC. 20-21)SWITCH, CONTROL - ASSEMBLY (INC. 20-21)
-
200409-028 ...SCREW, MACHINE...SCREW, MACHINE
-
210409-027 ...SCREW, MACHINE...SCREW, MACHINE
