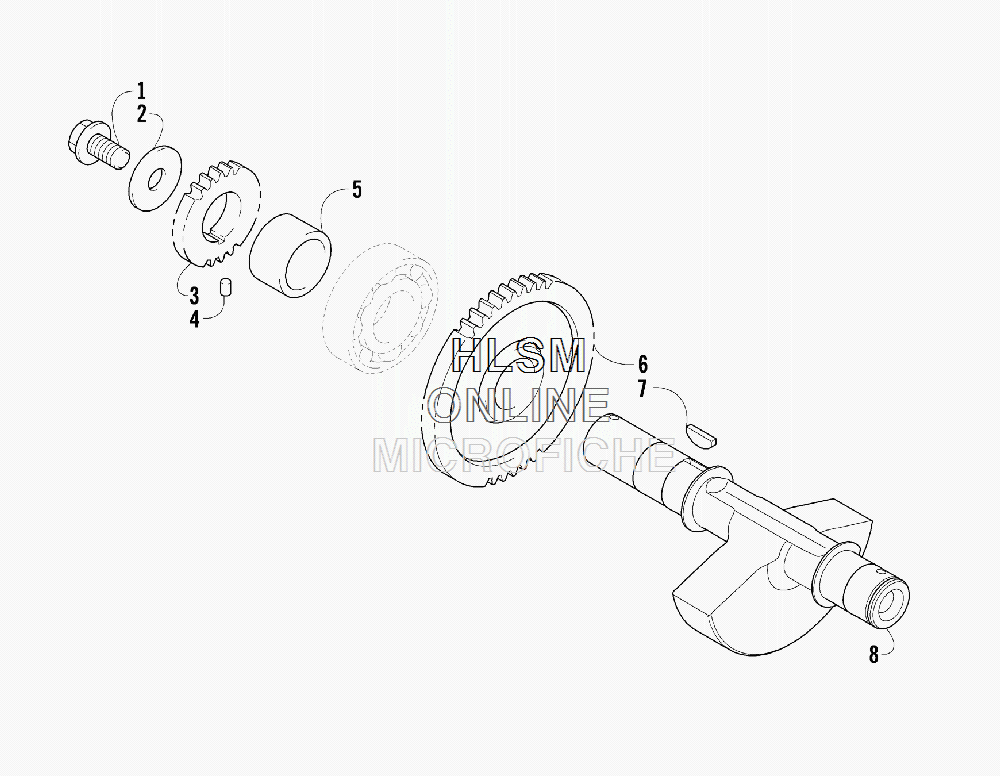

CRANK BALANCER ASSEMBLY для Arctic Cat 700 CRUISER PS METALLIC GRAY [A2011TCT1PUSS] - 2011 года выпуска
-
№АртикулНазвание
-
10826-033 SCREW, CAP HFH, M10X1.25X20 W/THD LOCKSCREW, CAP HFH, M10X1.25X20 W/THD LOCK
-
20828-003 WASHER, STEEL10 X 30 X 2.5WASHER, STEEL10 X 30 X 2.5
-
30811-003 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
40829-007 DOWEL, SOLID, 4 X 6DOWEL, SOLID, 4 X 6
-
50811-004 SPACERSPACER
-
60811-002 GEAR, DRIVEN-NO. 1-CRANK BALANCER ASSYGEAR, DRIVEN-NO. 1-CRANK BALANCER ASSY
-
70829-006 KEYKEY
-
80811-017 BALANCER, CRANKBALANCER, CRANK
