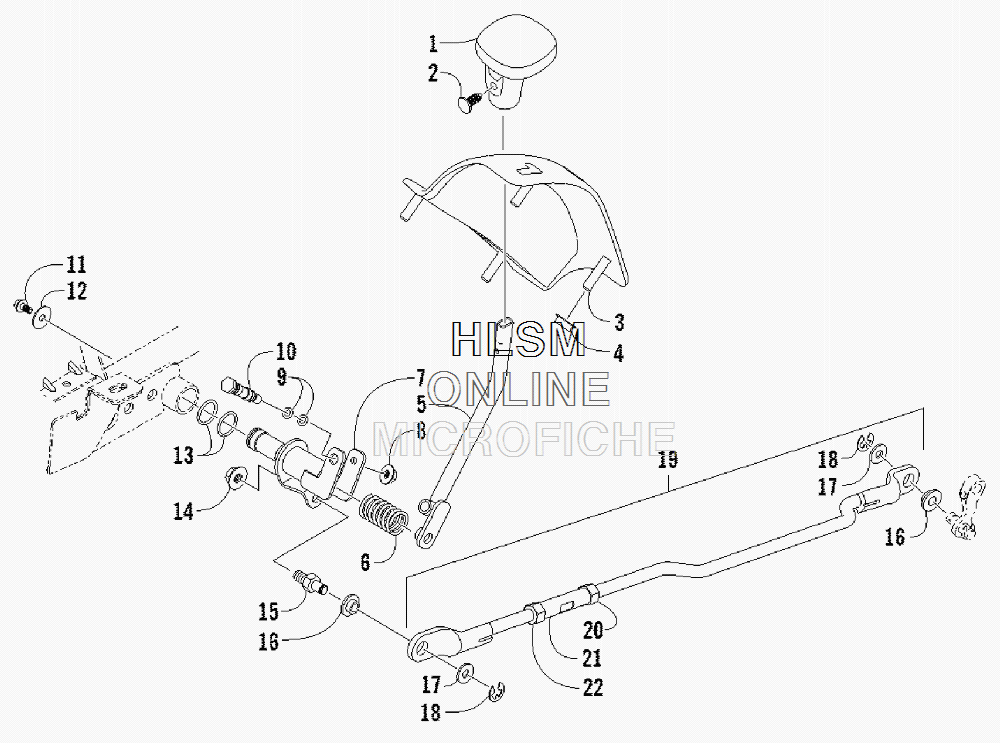

SHIFT LEVER ASSEMBLY для Arctic Cat 700 DIESEL GREEN INTERNATIONAL [A2011ITBT4DOSG] - 2011 года выпуска
-
№АртикулНазвание
-
10402-843 KNOB, SHIFTKNOB, SHIFT
-
20423-345 CLIP, RETAININGCLIP, RETAINING
-
31402-576 PLATE, SHIFTPLATE, SHIFT
-
40423-357 NUT, STAMPEDNUT, STAMPED
-
50502-659 LEVER, SHIFTLEVER, SHIFT
-
60402-678 SPRING, SHIFT LEVERSPRING, SHIFT LEVER
-
71502-012 ACTUATOR, SHIFTACTUATOR, SHIFT
-
88424-602 NUTNUT
-
90423-182 O-RINGO-RING
-
100402-675 AXLE, PIVOTAXLE, PIVOT
-
118408-812 SCREW, CAPSCREW, CAP
-
120423-087 WASHERWASHER
-
130423-299 O-RINGO-RING
-
148424-802 NUTNUT
-
151402-621 PIN, MOUNTINGPIN, MOUNTING
-
160423-091 BUSHINGBUSHING
-
170623-094 WASHERWASHER
-
180423-169 E-RINGE-RING
-
191502-226 LINKAGE, SHIFT - ASSEMBLY (INC. 20-22)LINKAGE, SHIFT - ASSEMBLY (INC. 20-22)
-
200123-917 ...NUT, HEX - LEFT-HAND THREAD...NUT, HEX - LEFT-HAND THREAD
-
211402-619 ...COUPLER...COUPLER
-
220623-294 ...NUT, HEX - RIGHT-HAND THREAD...NUT, HEX - RIGHT-HAND THREAD
