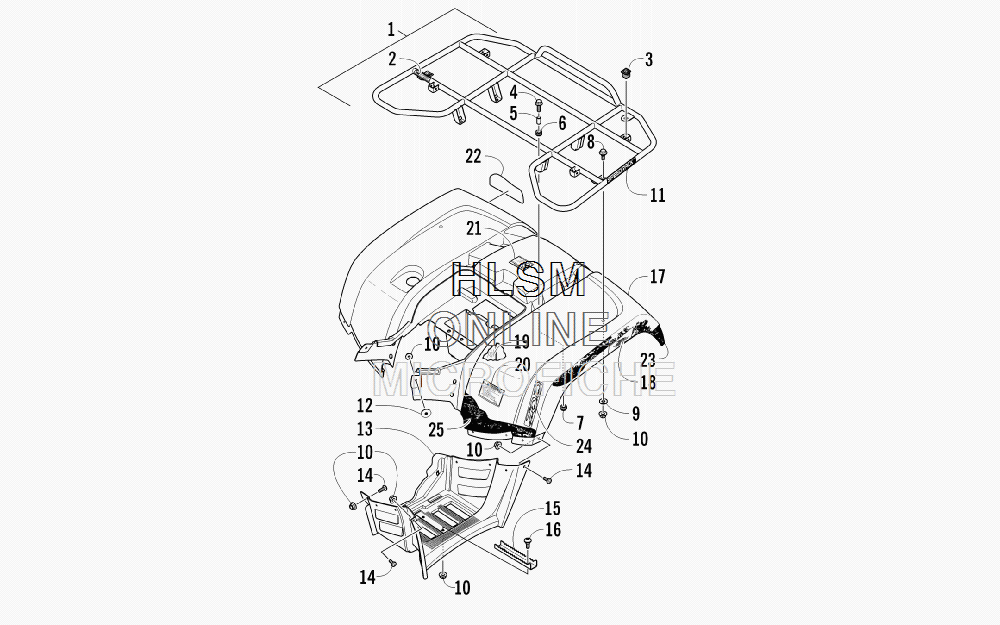

REAR RACK- BODY PANEL- AND FOOTWELL ASSEMBLIES для Arctic Cat 700 GREEN [A2011IBT4EUSG] - 2011 года выпуска`
-
№АртикулНазвание
-
12506-125 RACK, REAR - ASSEMBLY (INC. 2-3)RACK, REAR - ASSEMBLY (INC. 2-3)
-
20411-648 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
30441-592 ...BUSHING...BUSHING
-
48410-830 SCREW, CAPSCREW, CAP
-
50423-669 SPACERSPACER
-
60423-465 GROMMETGROMMET
-
78432-802 NUT, LOCKNUT, LOCK
-
80423-654 SCREW, SHOULDERSCREW, SHOULDER
-
98050-222 WASHERWASHER
-
100423-540 NUT, LOCKNUT, LOCK
-
110411-965 DECAL, "SPEEDRACK"DECAL, "SPEEDRACK"
-
120423-101 SCREW, SHOULDERSCREW, SHOULDER
-
131406-356 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
132406-429 FOOTWELL - LEFTFOOTWELL - LEFT
-
140423-419 SCREW, MACHINESCREW, MACHINE
-
151506-125 FOOTPEGFOOTPEG
-
160423-355 SCREW, SHOULDERSCREW, SHOULDER
-
172516-950 PANEL, FENDER - ASSEMBLY - REAR - GREEN (INC. 18-21)PANEL, FENDER - ASSEMBLY - REAR - GREEN (INC. 18-21)
-
181411-592 ...DECAL, REFLECTOR - RIGHT - RED...DECAL, REFLECTOR - RIGHT - RED
-
181411-593 ...DECAL, REFLECTOR - LEFT - RED...DECAL, REFLECTOR - LEFT - RED
-
190470-658 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
202411-143 ...DECAL, WARNING - TIRE PRESSURE...DECAL, WARNING - TIRE PRESSURE
-
211411-809 ...DECAL, PASSENGER...DECAL, PASSENGER
-
222411-331 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
232411-340 DECAL, SIDE - UPPER RIGHTDECAL, SIDE - UPPER RIGHT
-
232411-341 DECAL, SIDE - UPPER LEFTDECAL, SIDE - UPPER LEFT
-
242411-338 DECAL, 700 - RIGHTDECAL, 700 - RIGHT
-
242411-339 DECAL, 700 - LEFTDECAL, 700 - LEFT
-
252411-336 DECAL, SIDE - LOWER RIGHTDECAL, SIDE - LOWER RIGHT
-
252411-337 DECAL, SIDE - LOWER LEFTDECAL, SIDE - LOWER LEFT
