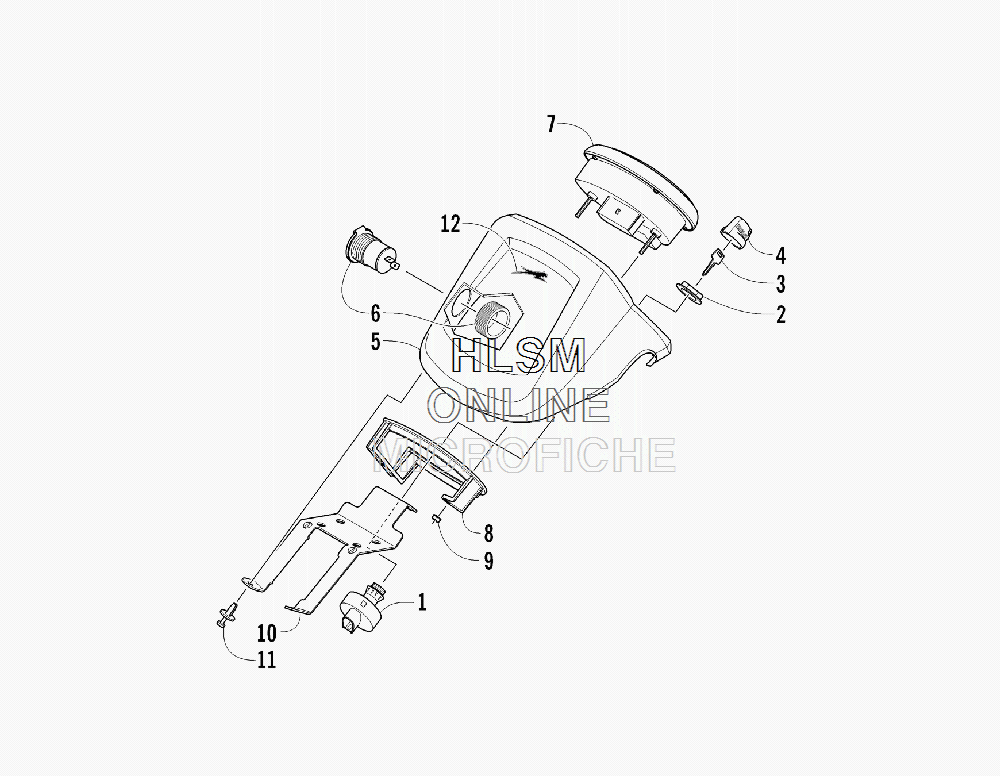

INSTRUMENT POD ASSEMBLY для Arctic Cat 700 TBX LTD INTERNATIONAL METALLIC CAT GREEN [A2011BBT1POSA] - 2011 года выпуска
-
№АртикулНазвание
-
10430-090 SWITCH, IGNITION - ASSEMBLY (INC. 2-4)SWITCH, IGNITION - ASSEMBLY (INC. 2-4)
-
20430-050 ...NUT, RETAINING...NUT, RETAINING
-
30430-042 ...KEY, IGNITION (Y SERIES - LEFT-SIDE CUT)...KEY, IGNITION (Y SERIES - LEFT-SIDE CUT)
-
30430-043 ...KEY, IGNITION (Z SERIES - RIGHT-SIDE CUT)...KEY, IGNITION (Z SERIES - RIGHT-SIDE CUT)
-
40430-054 ...COVER, KEY...COVER, KEY
-
50505-590 INSTRUMENT POD - BLACKINSTRUMENT POD - BLACK
-
60641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
70520-098 GAUGE, LCDGAUGE, LCD
-
80420-065 BRACKET, RETAININGBRACKET, RETAINING
-
90423-493 NUT W/WASHERNUT W/WASHER
-
102506-470 BRACKET, MOUNTING - INSTRUMENT PODBRACKET, MOUNTING - INSTRUMENT POD
-
110423-535 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
128611-267 DECAL, AIRCATDECAL, AIRCAT
