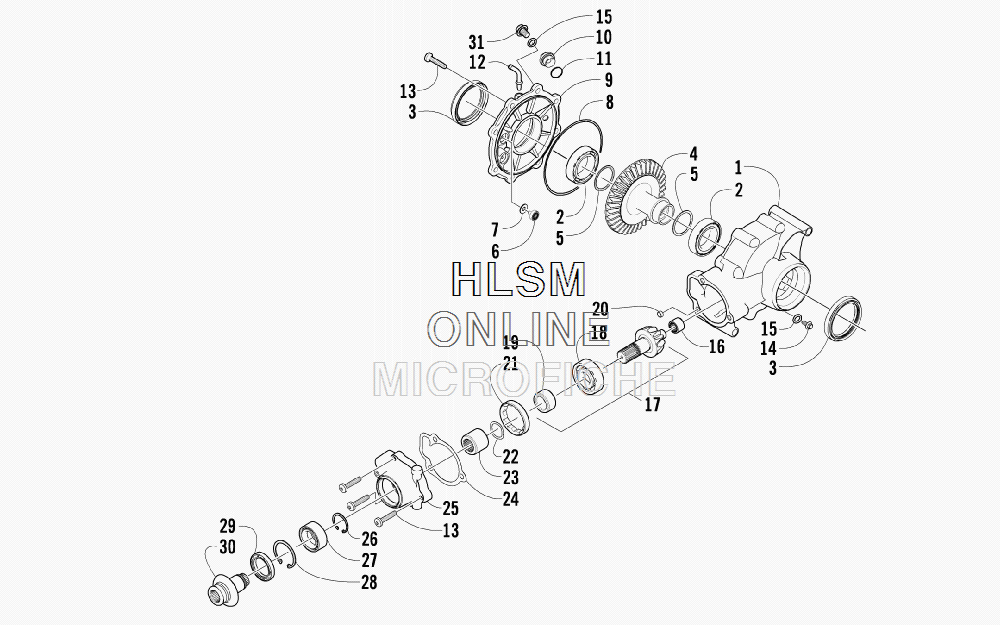

REAR DRIVE GEARCASE ASSEMBLY для Arctic Cat 700 TBX LTD METALLIC CAT GREEN [A2011BBT1PUSA] - 2011 года выпуска
-
№АртикулНазвание
-
-1502-401 COMPLETE REAR DRIVE GEARCASE ASSEMBLYCOMPLETE REAR DRIVE GEARCASE ASSEMBLY
-
11502-317 HOUSING, GEARCASEHOUSING, GEARCASE
-
20402-393 BEARINGBEARING
-
31402-713 SEALSEAL
-
41402-033 GEAR, RING - 34TGEAR, RING - 34T
-
50402-405 SHIM, 41 X 49 X 1.3 MMSHIM, 41 X 49 X 1.3 MM
-
50402-406 SHIM, 41 X 49 X 1.4 MMSHIM, 41 X 49 X 1.4 MM
-
50402-407 SHIM, 41 X 49 X 1.5 MMSHIM, 41 X 49 X 1.5 MM
-
50402-408 SHIM, 41 X 49 X 1.6 MMSHIM, 41 X 49 X 1.6 MM
-
50402-409 SHIM, 41 X 49 X 1.7 MMSHIM, 41 X 49 X 1.7 MM
-
60402-326 BUTTON, THRUSTBUTTON, THRUST
-
70402-429 SHIM, 6.3 X 18 X 1.3 MMSHIM, 6.3 X 18 X 1.3 MM
-
70402-430 SHIM, 6.3 X 18 X 1.4 MMSHIM, 6.3 X 18 X 1.4 MM
-
70402-431 SHIM, 6.3 X 18 X 1.5 MMSHIM, 6.3 X 18 X 1.5 MM
-
70402-432 SHIM, 6.3 X 18 X 1.6 MMSHIM, 6.3 X 18 X 1.6 MM
-
70402-433 SHIM, 6.3 X 18 X 1.7 MMSHIM, 6.3 X 18 X 1.7 MM
-
80423-149 O-RINGO-RING
-
91502-082 COVER, GEARCASECOVER, GEARCASE
-
100402-333 PLUG, MAGNETIC (INC. 11)PLUG, MAGNETIC (INC. 11)
-
110423-154 ...O-RING...O-RING
-
121402-102 FITTINGFITTING
-
130423-118 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
141402-210 PLUG, FILL (INC. ONE NO. 15)PLUG, FILL (INC. ONE NO. 15)
-
150423-153 ...O-RING...O-RING
-
160402-328 BEARINGBEARING
-
170502-784 GEAR, PINION - ASSEMBLY - 11T (INC. 18-19)GEAR, PINION - ASSEMBLY - 11T (INC. 18-19)
-
180402-327 ...BEARING...BEARING
-
190402-336 ...COLLAR, RETAINING...COLLAR, RETAINING
-
200402-411 PIN, DOWELPIN, DOWEL
-
210402-331 COLLAR, LOCKCOLLAR, LOCK
-
220402-982 WASHER, WAVEWASHER, WAVE
-
230402-981 COLLAR, SHAFTCOLLAR, SHAFT
-
240402-947 GASKET, FLANGEGASKET, FLANGE
-
250502-529 HOUSING, PINIONHOUSING, PINION
-
260423-417 RING, RETAININGRING, RETAINING
-
271402-043 BEARINGBEARING
-
280423-423 RING, RETAININGRING, RETAINING
-
291402-011 SEALSEAL
-
301502-085 SHAFT, INPUTSHAFT, INPUT
-
311402-211 PLUG, OIL LEVEL (INC. ONE NO. 15)PLUG, OIL LEVEL (INC. ONE NO. 15)
