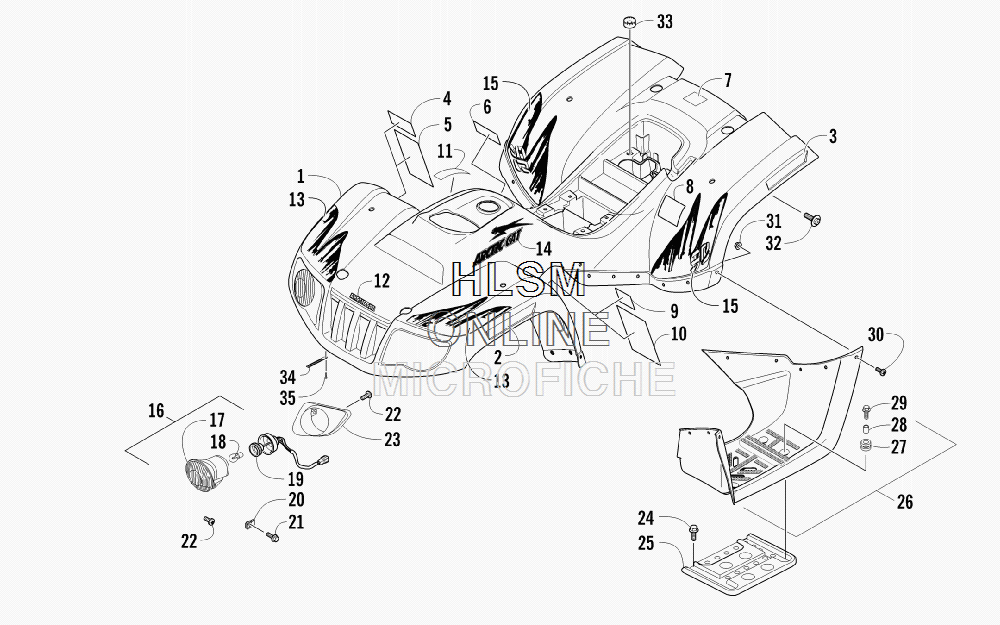

BODY PANEL AND HEADLIGHT ASSEMBLY для Arctic Cat 90 UTILITY BLACK [A2011KUB2BUSP] - 2011 года выпуска
-
№АртикулНазвание
-
13306-229 PANEL, BODY - MAIN - BLACK (INC. 2-10)PANEL, BODY - MAIN - BLACK (INC. 2-10)
-
21411-180 + DECAL, REFLECTOR - RIGHT - AMBER+ DECAL, REFLECTOR - RIGHT - AMBER
-
21411-181 + DECAL, REFLECTOR - LEFT - AMBER+ DECAL, REFLECTOR - LEFT - AMBER
-
31411-178 + DECAL, REFLECTOR - RIGHT - RED+ DECAL, REFLECTOR - RIGHT - RED
-
31411-179 + DECAL, REFLECTOR - LEFT - RED+ DECAL, REFLECTOR - LEFT - RED
-
40411-836 + DECAL, WARNING - HILL+ DECAL, WARNING - HILL
-
50411-457 + DECAL, WARNING - REVERSE/PRE-RIDE+ DECAL, WARNING - REVERSE/PRE-RIDE
-
61411-577 + DECAL, WARNING - NOT FOR HIGHWAYS+ DECAL, WARNING - NOT FOR HIGHWAYS
-
71411-809 + DECAL, WARNING - PASSENGER+ DECAL, WARNING - PASSENGER
-
81411-938 + DECAL, WARNING - TIRE/LOAD+ DECAL, WARNING - TIRE/LOAD
-
92411-137 + DECAL, WARNING - AGE+ DECAL, WARNING - AGE
-
101411-932 + DECAL, WARNING - GENERAL+ DECAL, WARNING - GENERAL
-
112411-052 DECAL, SHIFTDECAL, SHIFT
-
122411-465 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
132411-470 DECAL, FRONT FENDER - RIGHTDECAL, FRONT FENDER - RIGHT
-
132411-471 DECAL, FRONT FENDER - LEFTDECAL, FRONT FENDER - LEFT
-
142411-466 DECAL, CENTER - RIGHTDECAL, CENTER - RIGHT
-
142411-467 DECAL, CENTER - LEFTDECAL, CENTER - LEFT
-
152411-468 DECAL, REAR FENDER - RIGHTDECAL, REAR FENDER - RIGHT
-
152411-469 DECAL, REAR FENDER - LEFTDECAL, REAR FENDER - LEFT
-
163305-976 HEADLIGHT - ASSEMBLY (INC. 17-20)HEADLIGHT - ASSEMBLY (INC. 17-20)
-
173305-977 + LENS, HEADLIGHT+ LENS, HEADLIGHT
-
183305-827 + BULB, HEADLIGHT+ BULB, HEADLIGHT
-
193305-978 + SOCKET ASSEMBLY+ SOCKET ASSEMBLY
-
203304-061 + CLIP, U-NUT+ CLIP, U-NUT
-
213305-828 SCREW, CAPSCREW, CAP
-
223304-123 SCREW, MACHINESCREW, MACHINE
-
233305-836 ADAPTER, MOUNTING - HEADLIGHT - RIGHT - BLACKADAPTER, MOUNTING - HEADLIGHT - RIGHT - BLACK
-
233305-837 ADAPTER, MOUNTING - HEADLIGHT - LEFT - BLACKADAPTER, MOUNTING - HEADLIGHT - LEFT - BLACK
-
243304-543 SCREW, CAPSCREW, CAP
-
253304-494 SUPPORT, MUDGUARD - RIGHTSUPPORT, MUDGUARD - RIGHT
-
253304-495 SUPPORT, MUDGUARD - LEFTSUPPORT, MUDGUARD - LEFT
-
263306-144 MUDGUARD, RIGHT - ASSEMBLY (INC. 27-28)MUDGUARD, RIGHT - ASSEMBLY (INC. 27-28)
-
263306-145 MUDGUARD, LEFT - ASSEMBLY (INC. 27-28)MUDGUARD, LEFT - ASSEMBLY (INC. 27-28)
-
273303-227 + BUSHING+ BUSHING
-
283303-233 + SPACER+ SPACER
-
293304-586 SCREW, CAPSCREW, CAP
-
303305-703 SCREW, MACHINESCREW, MACHINE
-
313304-431 NUT, LOCKNUT, LOCK
-
323304-587 SCREW, CAPSCREW, CAP
-
333303-232 GROMMET, RUBBERGROMMET, RUBBER
-
343304-156 CLAMP, ROUTINGCLAMP, ROUTING
-
353304-651 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
