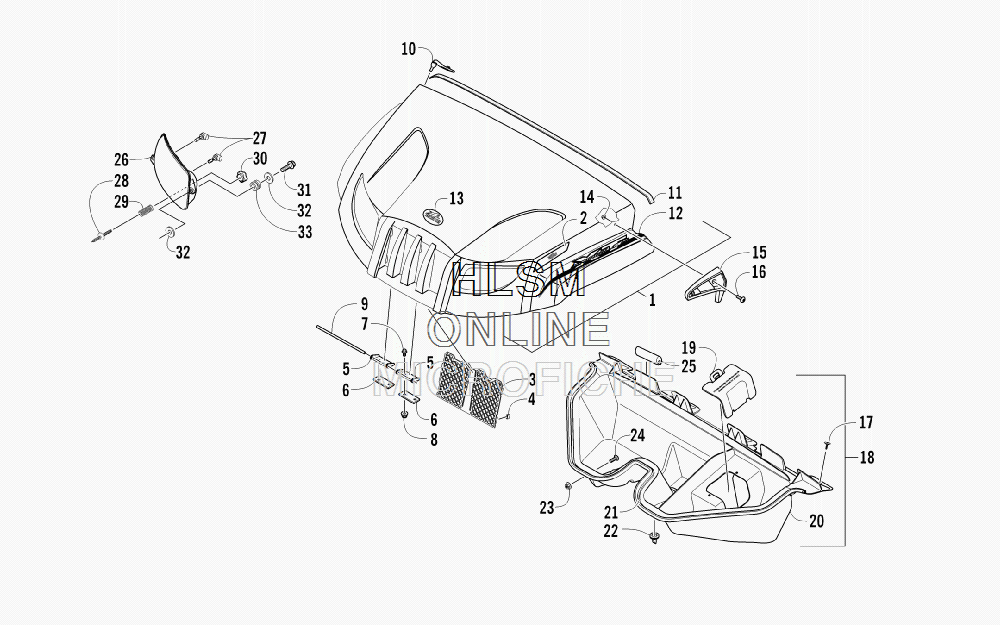

HOOD AND HEADLIGHT ASSEMBLY для Arctic Cat PROWLER 550 XT GREEN [A2011P2O4EUSG] - 2011 года выпуска
-
№АртикулНазвание
-
14506-478 HOOD - ASSEMBLY - GREEN (INC. 2)HOOD - ASSEMBLY - GREEN (INC. 2)
-
20411-818 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
20411-819 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
31406-733 SCREEN, GRILLESCREEN, GRILLE
-
40123-987 CLIP, UCLIP, U
-
52516-606 BRACKET, HOODBRACKET, HOOD
-
62506-868 SHIM, HOODSHIM, HOOD
-
78408-820 SCREW, CAPSCREW, CAP
-
88427-802 NUT, LOCKNUT, LOCK
-
91406-915 PIN, HOODPIN, HOOD
-
102606-624 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
110417-013 TRIM, HOOD/DASHTRIM, HOOD/DASH
-
122411-412 DECAL, HOOD - "PROWLER XT" - RIGHTDECAL, HOOD - "PROWLER XT" - RIGHT
-
122411-413 DECAL, HOOD - "PROWLER XT" - LEFTDECAL, HOOD - "PROWLER XT" - LEFT
-
132411-416 DECAL, HOODDECAL, HOOD
-
140423-450 NUT, LOCKNUT, LOCK
-
152416-512 LOUVER - RIGHTLOUVER - RIGHT
-
152416-513 LOUVER - LEFTLOUVER - LEFT
-
160423-356 SCREW, SHOULDERSCREW, SHOULDER
-
170423-545 SCREW, SHOULDERSCREW, SHOULDER
-
184506-037 STORAGE, UNDER-HOOD - ASSEMBLY (INC. 19-22)STORAGE, UNDER-HOOD - ASSEMBLY (INC. 19-22)
-
191406-944 ...COVER, ACCESS - MASTER CYLINDER...COVER, ACCESS - MASTER CYLINDER
-
202416-520 ...BOX, STORAGE...BOX, STORAGE
-
211406-946 ...SEAL, STORAGE BOX...SEAL, STORAGE BOX
-
220470-442 ...VALVE, DRAIN...VALVE, DRAIN
-
238424-602 NUTNUT
-
248476-616 SCREW, MACHINESCREW, MACHINE
-
250417-014 TRIM, DASH SUPPORTTRIM, DASH SUPPORT
-
260509-044 HEADLIGHT ASSEMBLY - RIGHT (INC. 27)HEADLIGHT ASSEMBLY - RIGHT (INC. 27)
-
260509-035 HEADLIGHT ASSEMBLY - LEFT (INC. 27)HEADLIGHT ASSEMBLY - LEFT (INC. 27)
-
270409-055 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
280423-514 STUD, ADJUSTERSTUD, ADJUSTER
-
290423-522 SPRING, ADJUSTERSPRING, ADJUSTER
-
300423-513 KNOB, ADJUSTERKNOB, ADJUSTER
-
310623-785 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
328050-217 WASHERWASHER
-
330423-447 GROMMETGROMMET
