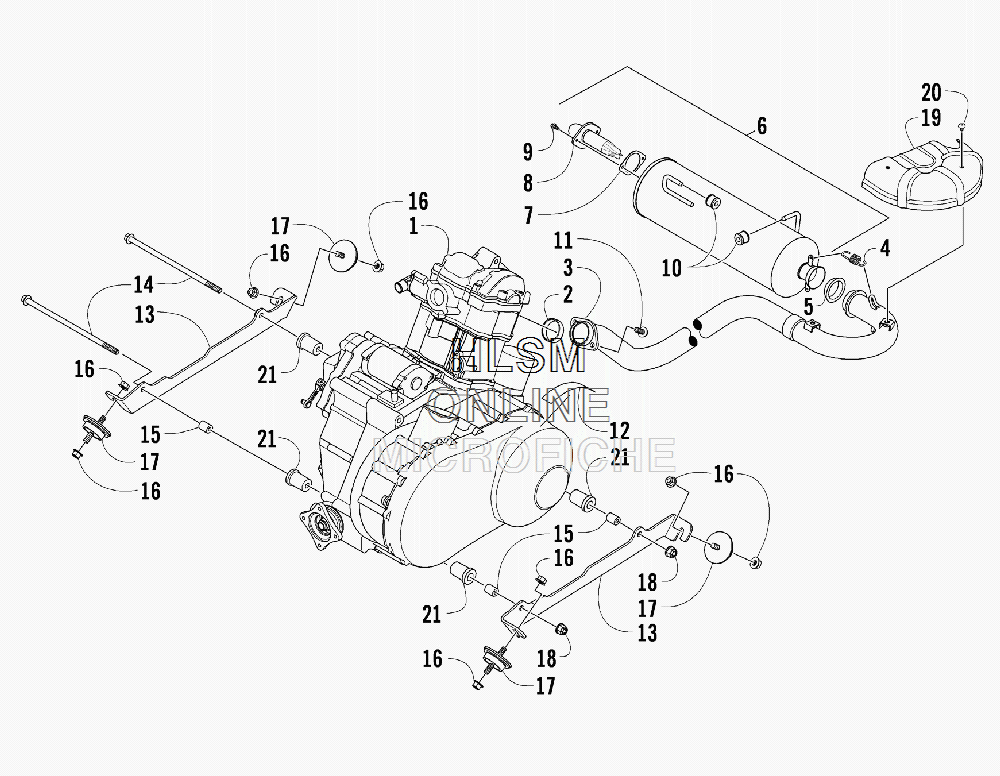

ENGINE AND EXHAUST для Arctic Cat PROWLER XTX TIMBER CAMO [U2011P3T1PUSH] - 2011 года выпуска
-
№АртикулНазвание
-
10800-063 ENGINEENGINE
-
20412-338 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
30512-427 PIPE, EXHAUSTPIPE, EXHAUST
-
40612-668 SPRINGSPRING
-
50412-375 SEAL, EXHAUSTSEAL, EXHAUST
-
60512-401 MUFFLER - ASSEMBLY (INC. 7-9)MUFFLER - ASSEMBLY (INC. 7-9)
-
70412-438 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
80512-432 ...SPARK ARRESTER ASSEMBLY...SPARK ARRESTER ASSEMBLY
-
98408-616 ...SCREW, CAP...SCREW, CAP
-
100412-577 BUSHINGBUSHING
-
118408-820 SCREW, CAPSCREW, CAP
-
120411-426 DECAL, WARNING - CLUTCH COVERDECAL, WARNING - CLUTCH COVER
-
131506-998 BRACKET, ENGINE - RIGHTBRACKET, ENGINE - RIGHT
-
131506-999 BRACKET, ENGINE - LEFTBRACKET, ENGINE - LEFT
-
141423-064 SCREW, CAPSCREW, CAP
-
151423-025 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
168424-002 NUTNUT
-
170408-014 MOUNT, ENGINEMOUNT, ENGINE
-
188428-002 NUT, LOCKNUT, LOCK
-
190412-462 SHIELD, HEATSHIELD, HEAT
-
208477-610 SCREW, MACHINESCREW, MACHINE
-
210801-180 BUSHING, ENGINE MOUNTBUSHING, ENGINE MOUNT
